Square D H361DS - Fusible Safety Switch, 30A 600V (NEMA 4/4X)
Square D H361DS - Fusible Safety Switch, 30A 600V (NEMA 4/4X)
Square D H361DS Disconnect Switch (Fusible) - Essential Electric Supply
Square D H361DS - Fusible Safety Switch, 30A 600V (NEMA 4/4X)
Square D H361DS - Fusible Safety Switch, 30A 600V (NEMA 4/4X)

Square D H361DS - Fusible Safety Switch, 30A 600V (NEMA 4/4X)

Square D
Price
Save $923.96
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price

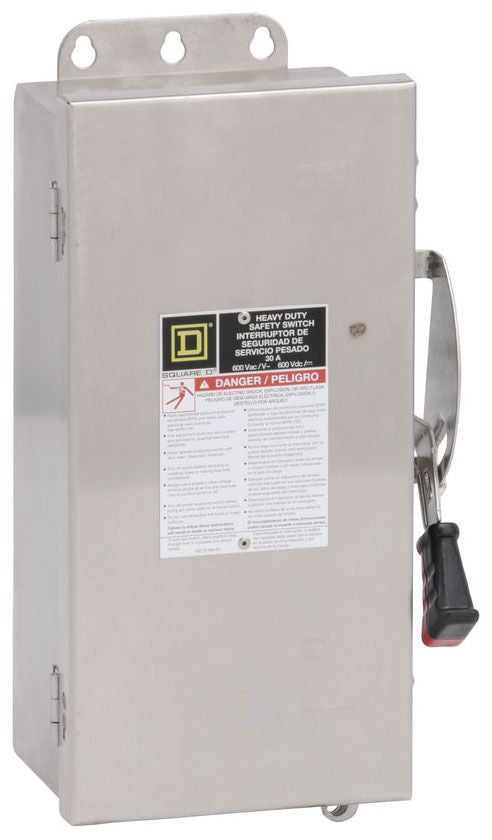

Square D H361DS is a fusible safety switch designed for providing reliable circuit isolation and protection in demanding industrial environments. It functions as a UL-certified, 600V AC, 30A rated disconnect switch with a 200kA interrupting capacity at 600V, ensuring robust short-circuit protection. The switch features a rugged NEMA 4/4X enclosure measuring 379.22 mm H x 220.22 mm W x 129.79 mm D and weighing 13.739 lb, with a three-pole, single-configuration design compatible with Class R fuses and NSX breaker frames. It complies with industry standards for safety and is engineered for use in three-phase power distribution systems, accepting copper wire from AWG 14 to 6 and aluminum wire from AWG 12 to 6 for flexible installation.

Key Features & Specifications
  • Type: Fusible Safety Disconnect Switch, Series F, Type H
  • Voltage Rating: 600V AC
  • Current Rating: 30A
  • Dimensions: 14.93 in (379.22 mm) H x 8.67 in (220.22 mm) W x 5.11 in (129.79 mm) D
  • Weight: 13.739 lb
  • Standards: UL Certified
  • Applications: Industrial power distribution and circuit isolation
  • Switch Style: Fusible
  • Configuration: Single
  • Poles: 3
  • Phase: 3
  • AIC Rating: 200kA @ 600V
  • NEMA Rating: 4/4X
  • Fuse Class: R
  • Wire Size: AWG 12 to 6 Aluminum, AWG 14 to 6 Copper
  • Compatible Frames: NSX


Product Identification
  • UPC: 785901023616
  • GTIN: 00785901023616
