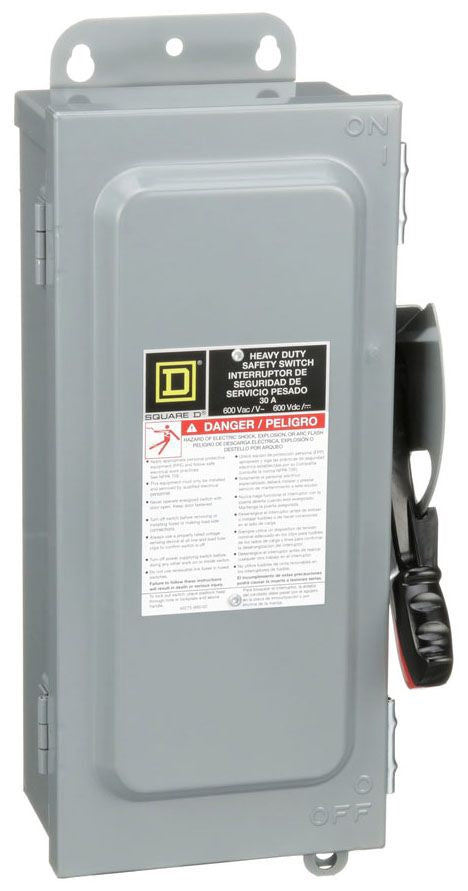

Square D H361AWK - Fusible Safety Switch, 600V 30A 3-Pole

Square D
Price
Save $92.53
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Square D H361AWK is a fusible safety switch designed for providing a visible disconnect and overcurrent protection in industrial power distribution. It is rated for 600V AC and 30A in a 3-phase configuration, featuring a compact, rugged enclosure measuring 370.8 mm H x 191.77 mm W x 125.98 mm D and weighing 10.6 lb. The switch is UL certified with a NEMA 3R/12 rating for indoor/outdoor use and boasts a high 200kA interrupting capacity at 600V. It is engineered for reliable service in motor control centers, industrial machinery, and panelboards where a secure disconnect is required.

Key Features & Specifications
  • Type: Fusible Safety Disconnect Switch, Series F, Type H
  • Voltage Rating: 600V AC
  • Current Rating: 30A
  • Phase: 3
  • Configuration: Single
  • Poles: 3
  • AIC Rating: 200kA @ 600V
  • Fuse Class: R
  • Wire Size: #12 to #6 AWG AL, #14 to #6 AWG CU
  • Dimensions: 14.6 in (370.8 mm) H x 7.55 in (191.77 mm) W x 4.96 in (125.98 mm) D
  • Weight: 10.6 lb
  • NEMA Rating: 3R/12
  • Certification: UL
  • Compatible Frames: ED
  • Switch Style: Fusible
  • Item Subcategory: Disconnect


Product Identification
  • UPC: 785901481997
  • GTIN: 00783643151192
