Square D H361A - Fusible Safety Switch, 600V 30A 3-Pole

Square D
Price
Save $-659.22
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price

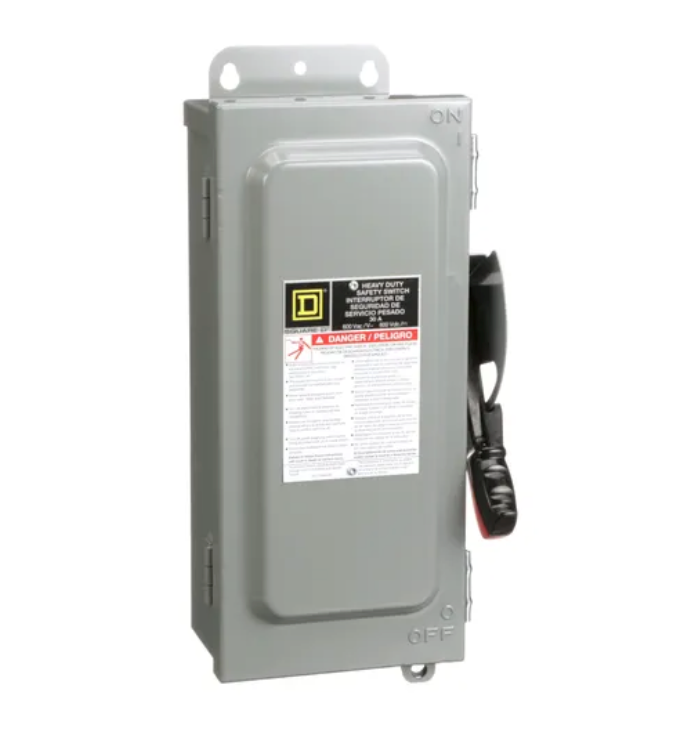

Square D H361A is a fusible safety switch designed for providing visible disconnect and overcurrent protection in industrial power distribution systems. It is rated for 600V AC and 30A in a 3-phase configuration, featuring a robust NEMA 12K enclosure with dimensions of 370.8 mm H x 191.77 mm W x 125.98 mm D and a weight of 10.571 lb. The switch is UL Listed and offers a high interrupting capacity of 200kA at 600V, ensuring reliable protection for downstream equipment. Its design accommodates a range of fuse classes (H, K, R, J) and is typically applied in motor control centers, HVAC systems, and industrial machinery where a secure, visible break is required.

Key Features & Specifications
  • Type: Fusible Safety Disconnect Switch, Series F, Type H
  • Voltage Rating: 600V AC
  • Current Rating: 30A
  • Configuration: Single, 3-Pole
  • Dimensions: 14.6 in (370.8 mm) H x 7.55 in (191.77 mm) W x 4.96 in (125.98 mm) D
  • Weight: 10.571 lb
  • Standards: UL Listed
  • Applications: Industrial power distribution, motor control, HVAC
  • Switch Style: Fusible
  • Phase: 3
  • AIC Rating: 200kA @ 600V
  • NEMA Rating: 12K
  • Fuse Class: H, K, R, J
  • Wire Size: AWG 12 to AWG 6 Aluminum, AWG 14 to AWG 6 Copper


Product Identification
  • UPC: 078590148185
  • GTIN: 00785901481850
