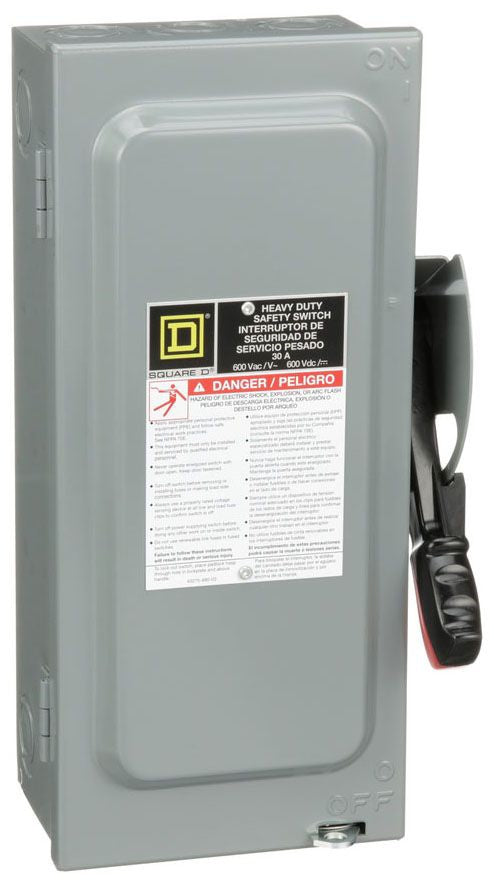

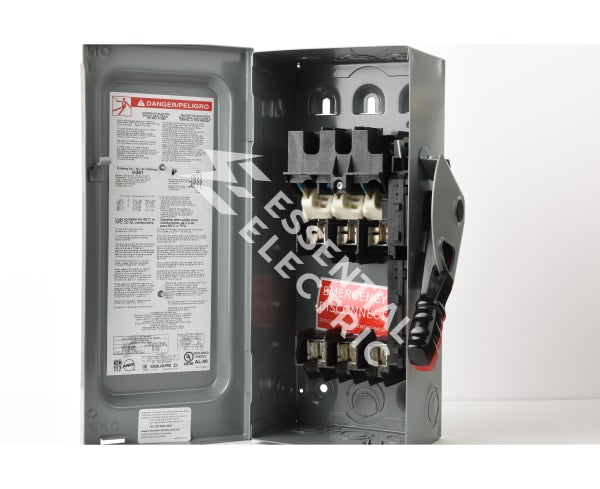

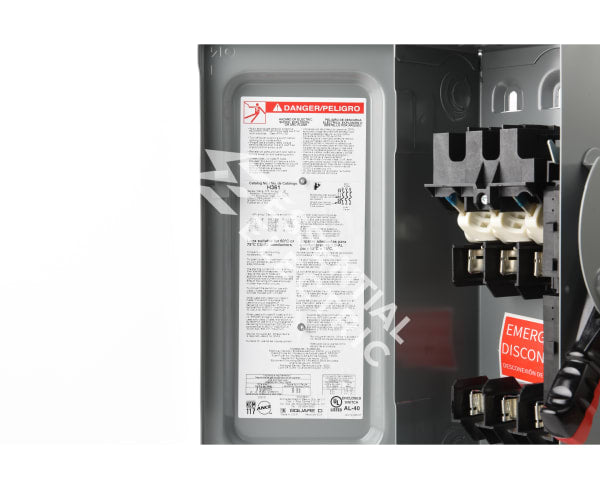

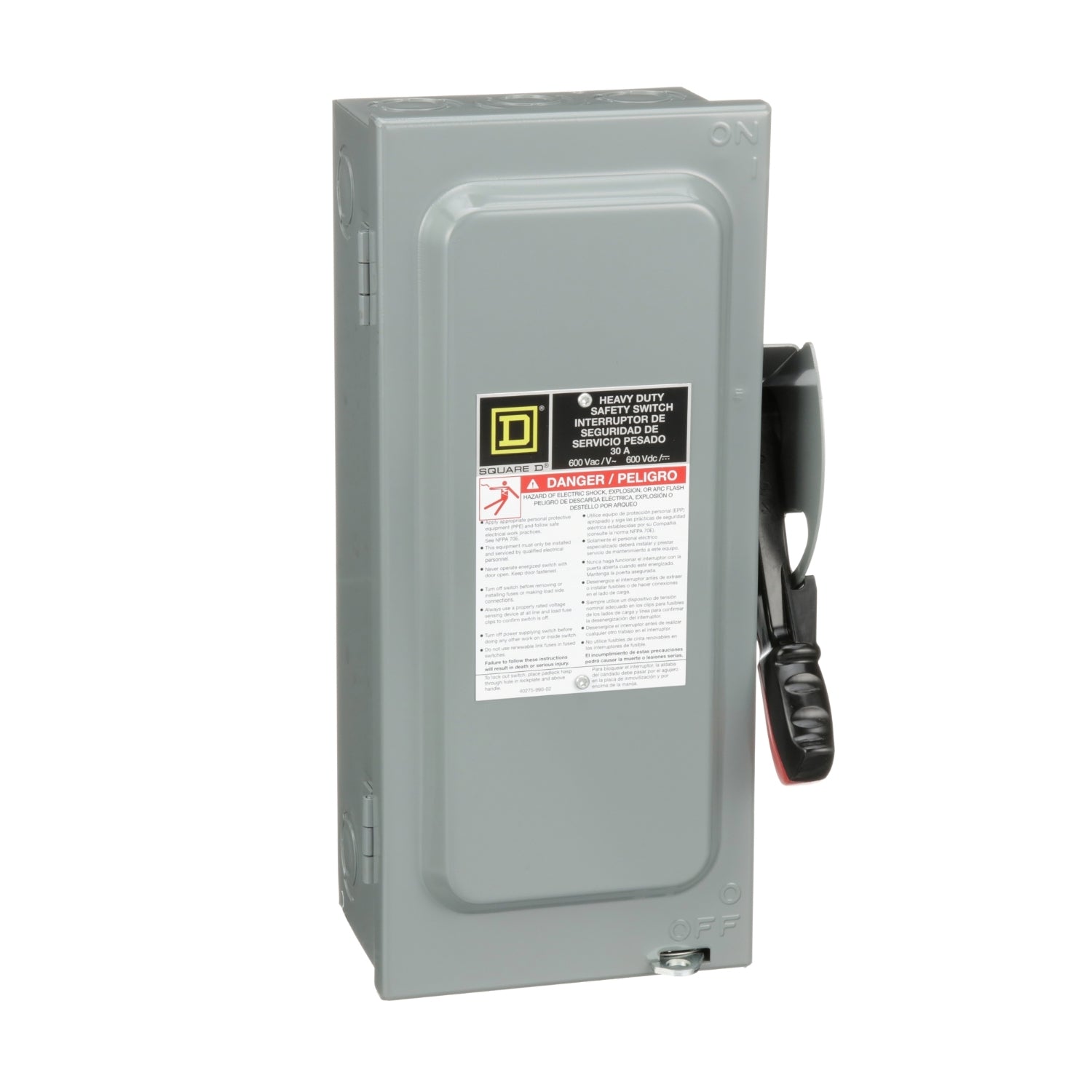

Square D H361 is a fusible safety switch designed for providing a visible disconnect and overcurrent protection in industrial power distribution systems. It is rated for 600V AC and 30A in a 3-phase configuration, featuring a robust NEMA 1 enclosure with dimensions of 370.8 mm H x 191.77 mm W x 123.70 mm D and a weight of 8.04 lb. The switch is UL Listed and engineered with a 200kA interrupting capacity at 600V, ensuring reliable protection for compatible ED frame equipment. Its design supports typical applications in motor control and feeder circuits, accommodating wire sizes from #12 to #6 AWG for aluminum or #14 to #6 AWG for copper conductors.
Key Features & Specifications
Type: Fusible Disconnect Safety Switch, Series F, Type H
Voltage Rating: 600V AC
Current Rating: 30A
Configuration: Single, 3-Pole
Phase: 3
AIC Rating: 200kA @ 600V
Fuse Class: R
Wire Size: #12 to #6 AWG (Al) or #14 to #6 AWG (Cu)
Dimensions: 14.6 in (370.8 mm) H x 7.55 in (191.77 mm) W x 4.87 in (123.70 mm) D
Weight: 8.04 lb
NEMA Rating: 1
Switch Style: Fusible
Certification: UL Listed
Compatible Frames: ED
Product Identification
UPC: 785901481843
GTIN: 00783164008821
