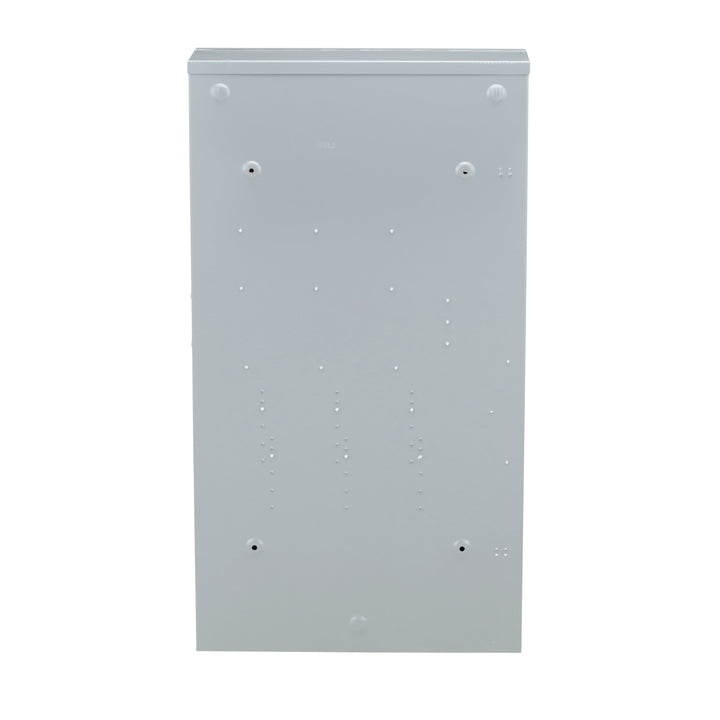

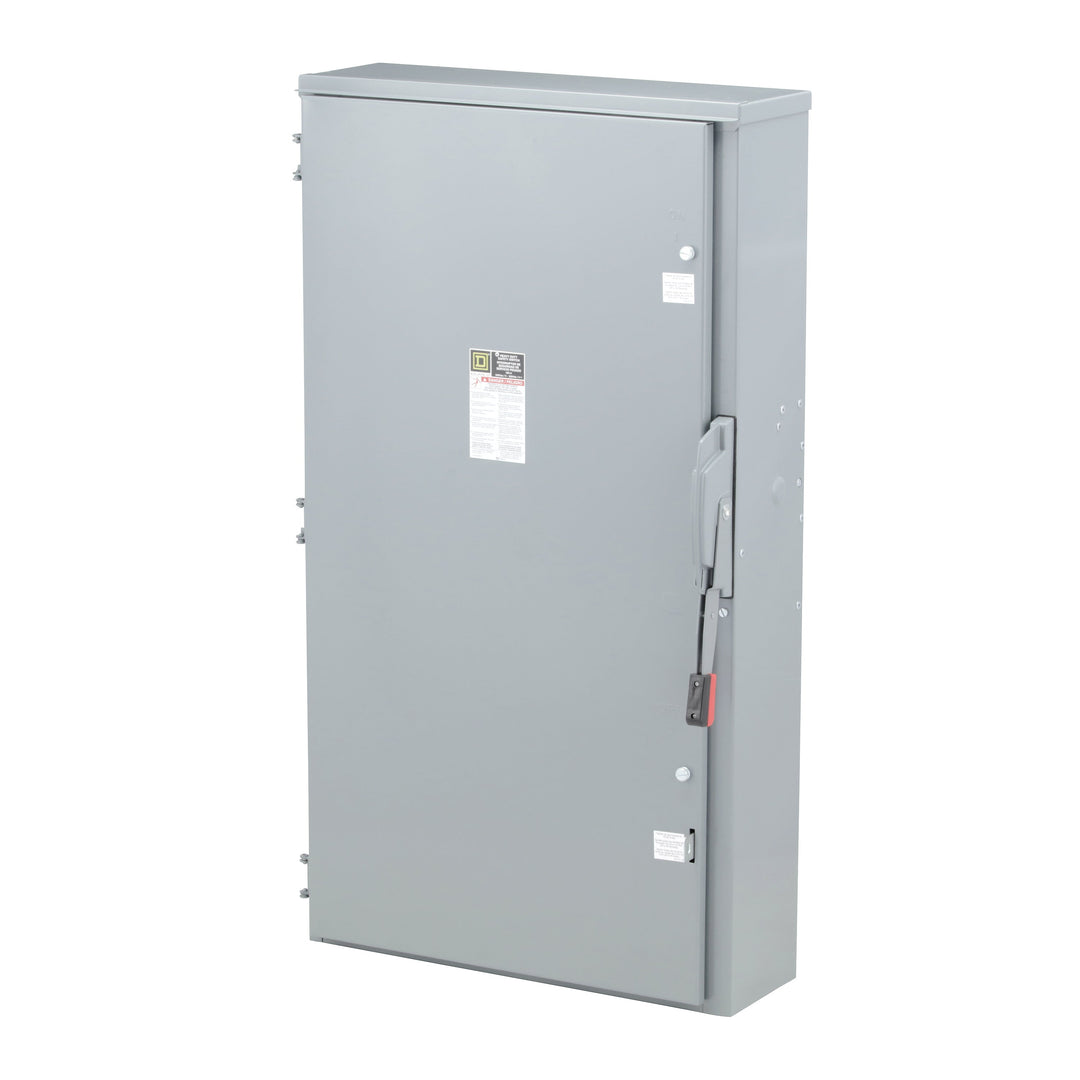

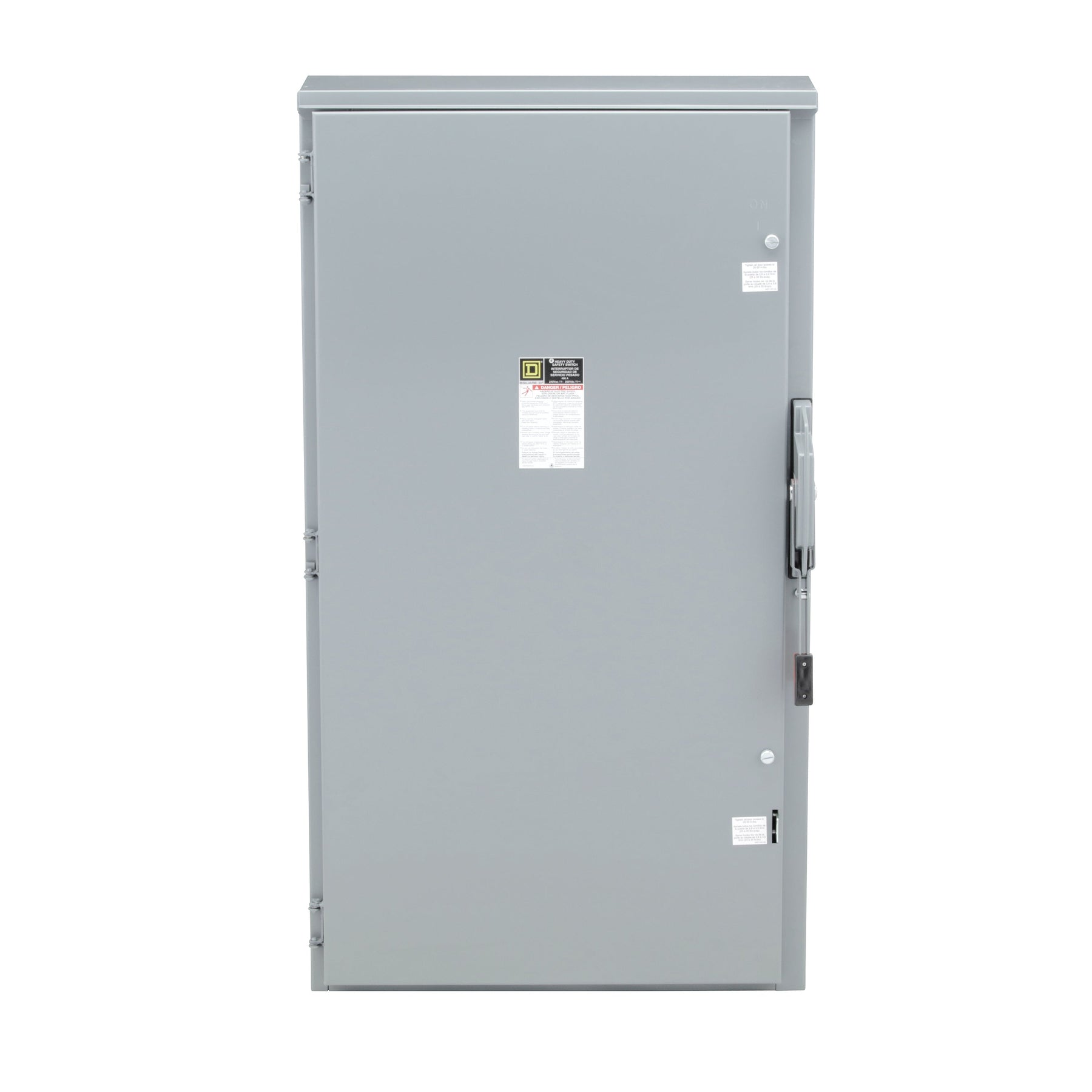

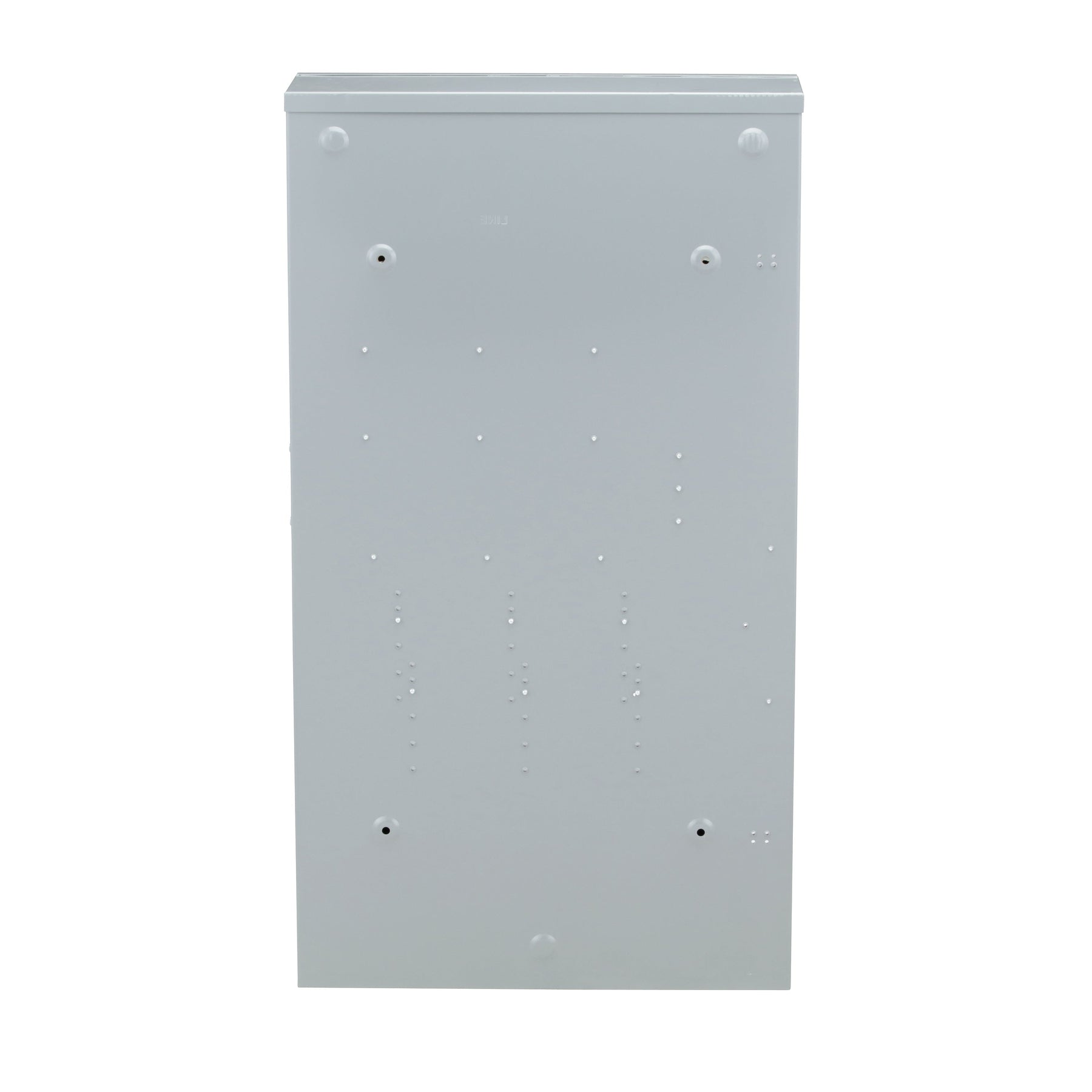

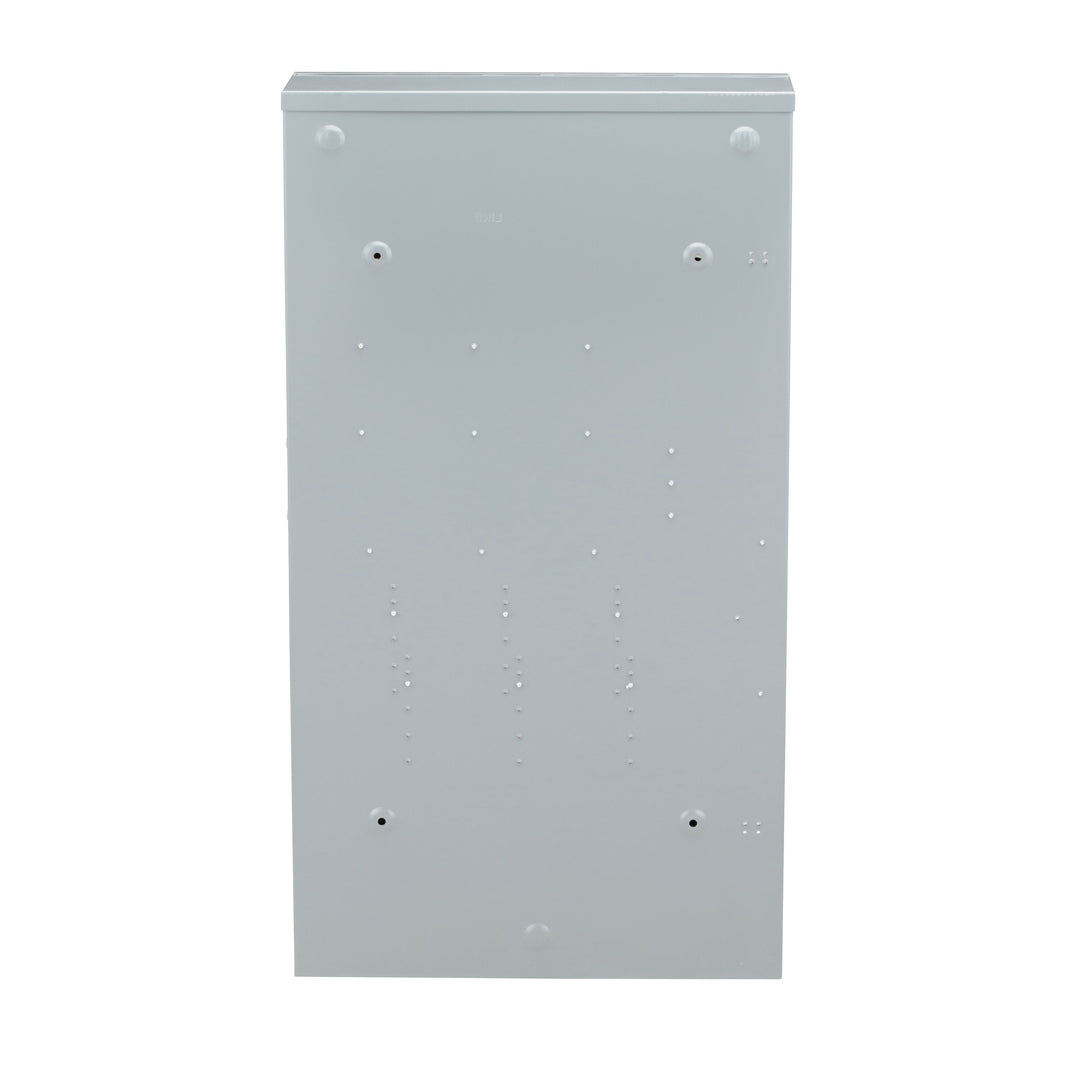

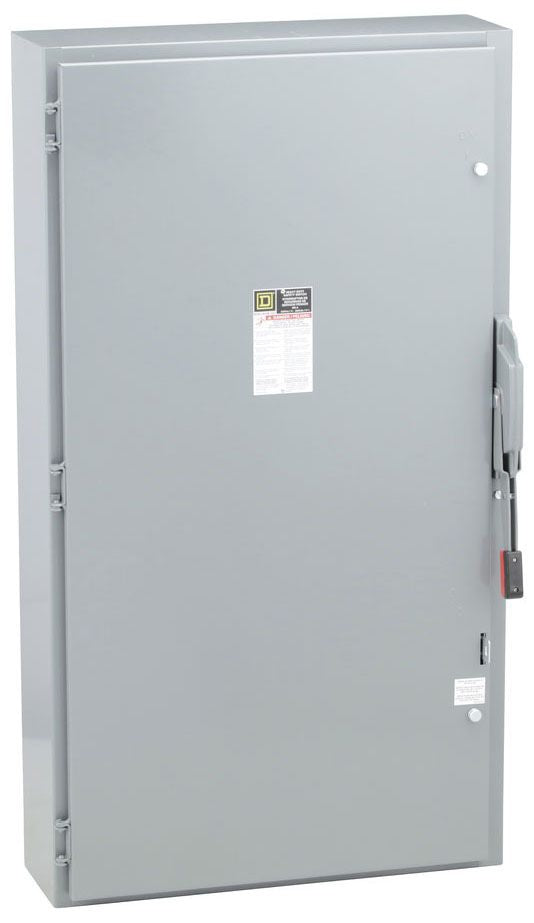

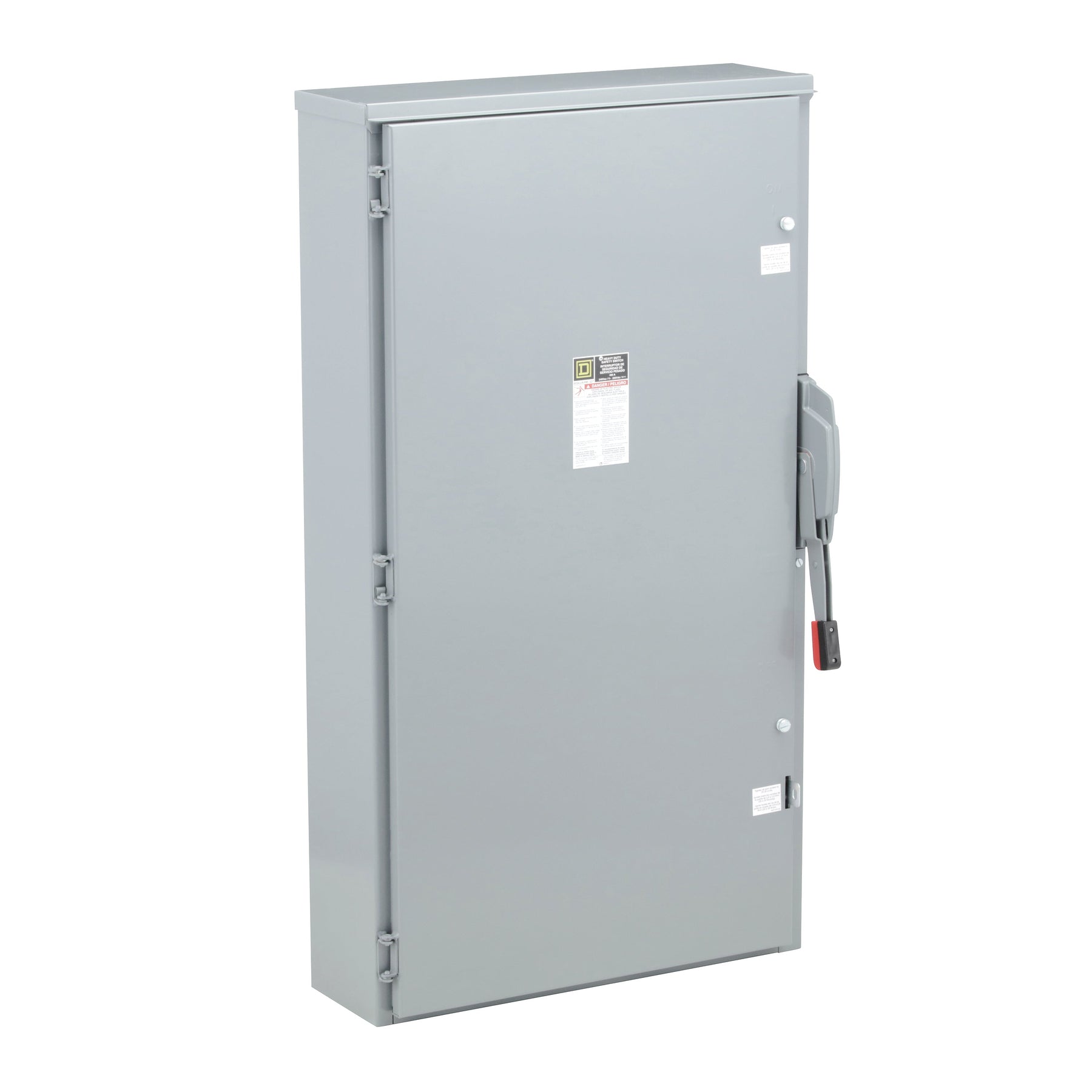

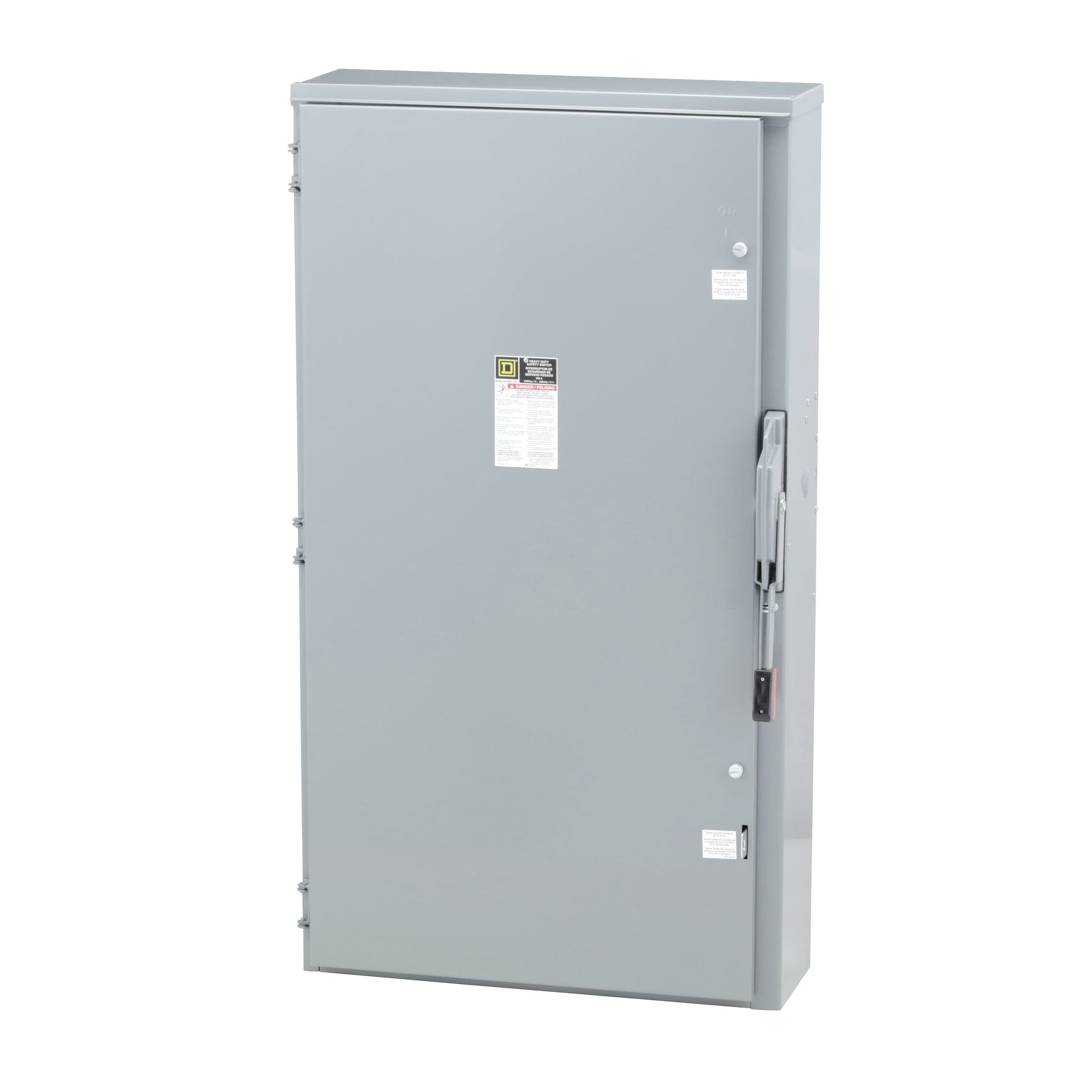

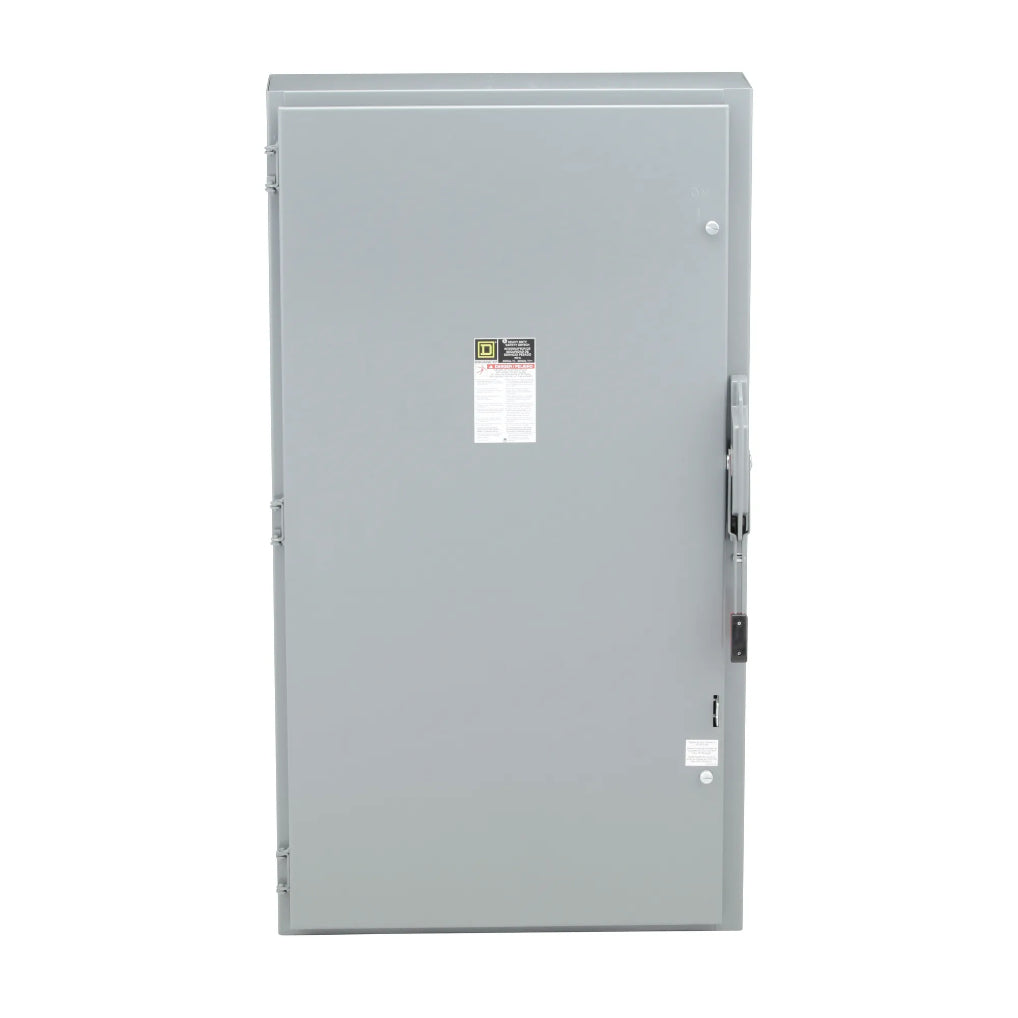

Square D H325NR - Fusible Safety Switch 400A 3P (200kA AIC)

Price
Regular price $0.00
Regular price Sale price $0.00
Save $0
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon
Square D H325NR is a heavy-duty fusible safety switch designed for providing reliable circuit isolation and protection in demanding three-phase industrial applications. It features a 400A current rating and a 240V AC voltage rating, housed within a robust NEMA 3R enclosure measuring 1277.87 mm H x 708.15 mm W x 257.30 mm D and weighing 183 lb. The switch is UL listed and offers a high 200kA interrupting capacity at 240V for superior fault protection. It is engineered for use in industrial power distribution, manufacturing facilities, and other environments requiring a secure disconnect for motor loads and feeder circuits.

Key Features & Specifications
  • Type: H-Type, Fusible Safety Disconnect Switch
  • Voltage Rating: 240V AC
  • Current Rating: 400A
  • Phase: 3
  • Poles: 3
  • Configuration: Single
  • AIC Rating: 200kA @ 240V
  • Fuse Class: R
  • NEMA Rating: NEMA 3R
  • Dimensions: 1277.87 mm H x 708.15 mm W x 257.30 mm D (50.31 in x 27.88 in x 10.13 in)
  • Weight: 183 lb (182.999 lb)
  • Standards/Certification: UL Listed
  • Compatible Frames: EH3
  • Family: Series E
  • Country of Origin: Mexico


Product Identification
  • UPC: 785901451440
  • GTIN: 00785901451440
