Square D H324NRB - Fusible Disconnect Switch, 200A 3P 240V
Square D H324NRB - Fusible Disconnect Switch, 200A 3P 240V
Square D H324NRB Disconnect Switch (Fusible) - Essential Electric Supply
Square D H324NRB - Fusible Disconnect Switch, 200A 3P 240V
Square D H324NRB - Fusible Disconnect Switch, 200A 3P 240V

Square D H324NRB - Fusible Disconnect Switch, 200A 3P 240V

Square D
Price
Save $901.65
/
Title
  • Low stock - 6 items left
  • Backordered, shipping soon
Call for Price

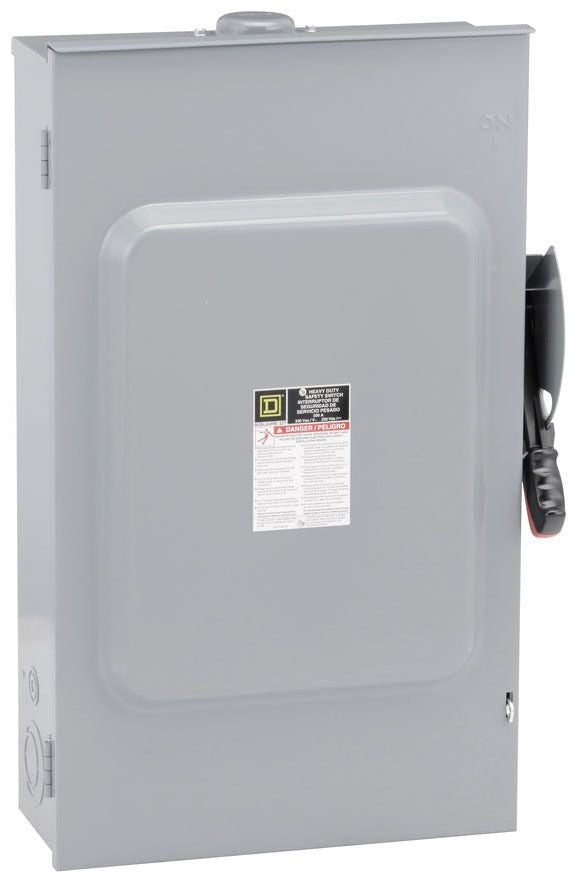

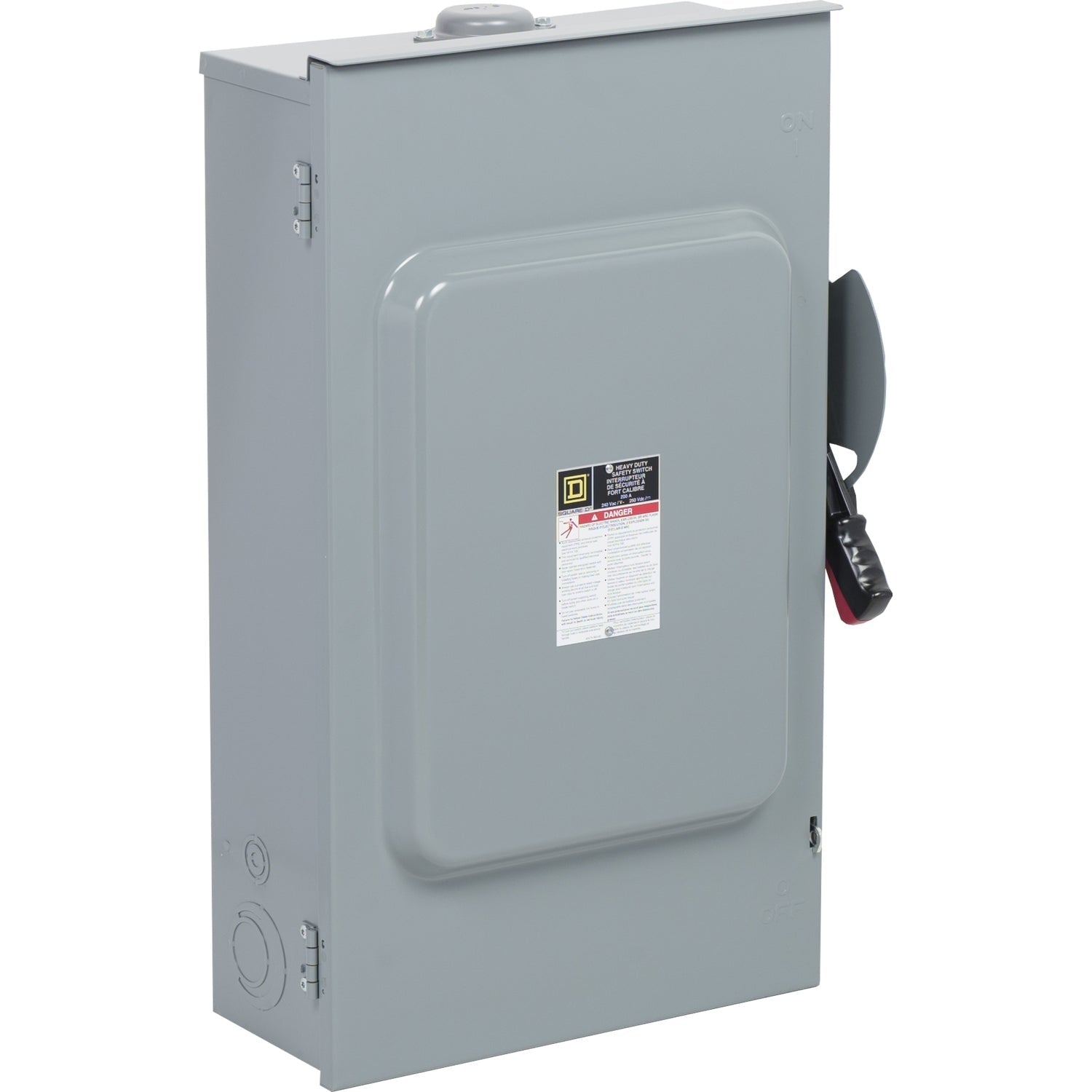

The Square D H324NRB is a heavy-duty fusible safety switch designed for the reliable isolation and protection of three-phase industrial circuits. It is rated for 240V AC systems with a continuous current capacity of 200A and features a high interrupting capacity of 200kA at 240V for robust short-circuit protection. The unit is constructed within a NEMA 3R-rated enclosure measuring 742.95 mm H x 438.15 mm W x 215.9 mm D and weighing 45.36 lb, ensuring durability for indoor or outdoor use where exposed to rain. This disconnect switch complies with industry standards for safety disconnects and is typically applied in industrial control panels, manufacturing equipment, and power distribution systems requiring a visible break and Class R fuse protection.

Key Features & Specifications
  • Type: H-Type, Fusible Safety Disconnect Switch
  • Voltage Rating: 240V AC
  • Current Rating: 200A
  • Dimensions: 742.95 mm H x 438.15 mm W x 215.9 mm D (29.25 in x 17.25 in x 8.5 in)
  • Standards: NEMA 3R Enclosure Rating
  • Applications: Industrial power distribution, motor control centers, machinery isolation
  • Switch Type: Fusible Disconnect
  • Configuration: Single Unit
  • Phase: 3-Phase
  • Amperage: 200A
  • AIC Rating: 200kA @ 240V
  • Connection: Line/Load Terminals
  • Poles: 3
  • Protection: Class R Fuse Compatible
  • Frame Size: Series F Family, Type H
  • Enclosure: NEMA 3R
  • Weight: 45.36 lb
  • Fuse Class: R


Product Identification
  • UPC: 785901480594
  • GTIN: 00785901480594
