Square D
Price
Save $765.98
/
Condition
  • Low stock - 4 items left
  • Backordered, shipping soon
Call for Price

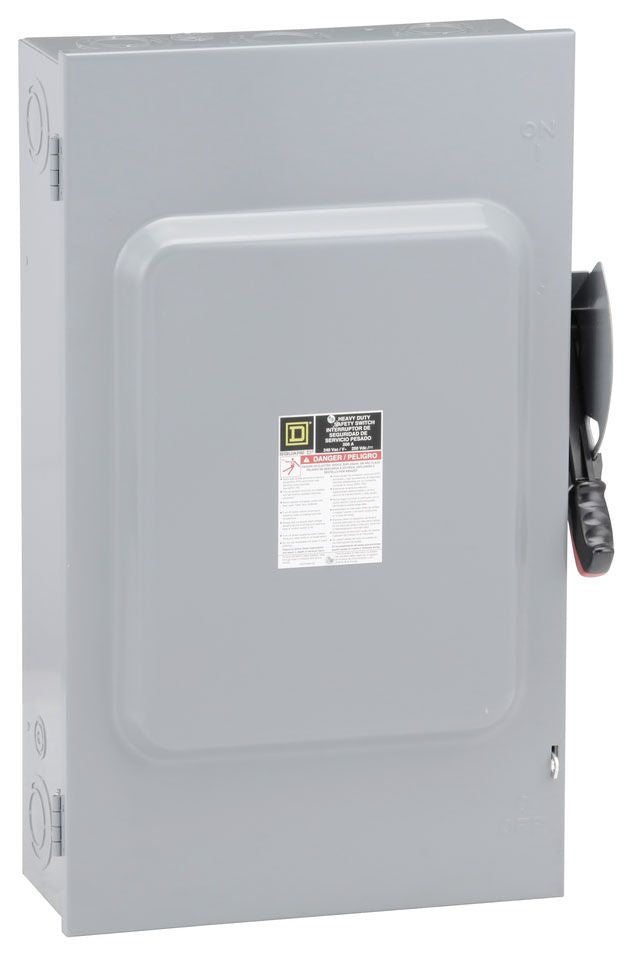

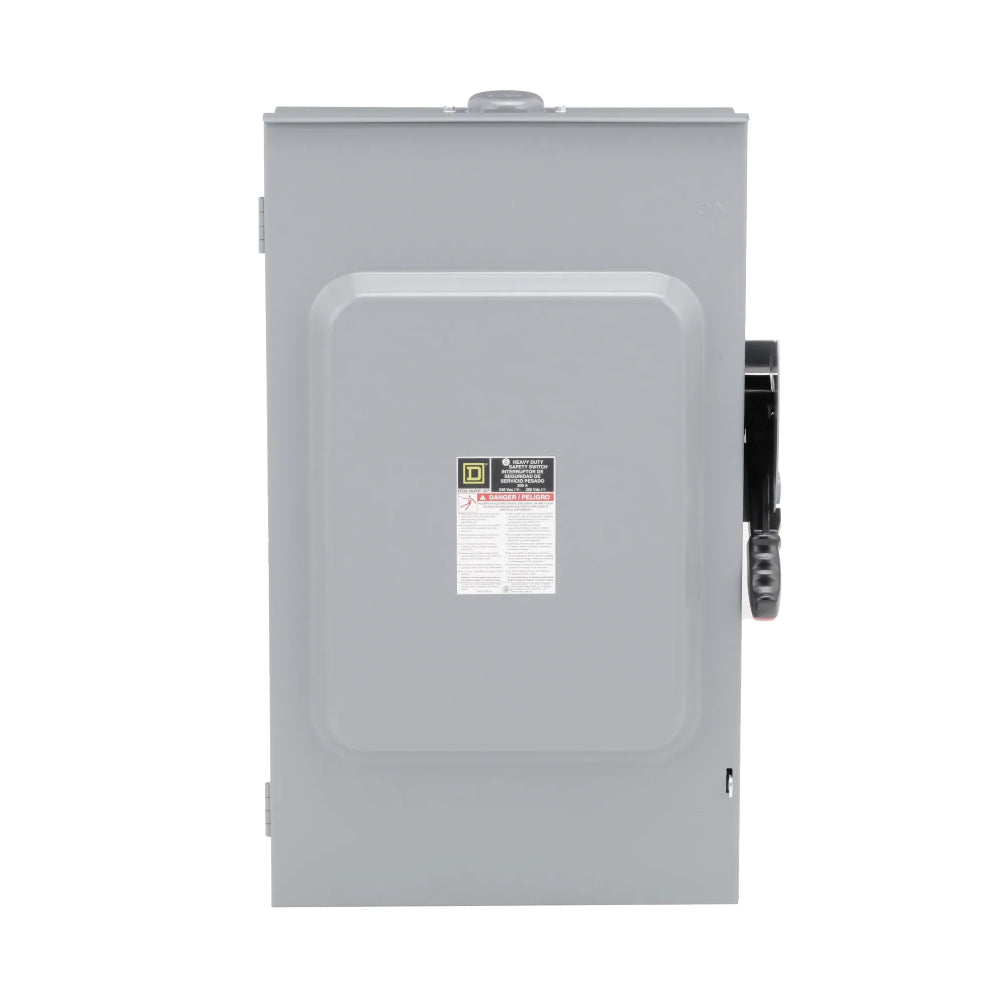

Square D H324N is a fusible safety switch designed for providing a visible disconnect and overcurrent protection in industrial power distribution systems. It is rated for 200A at 240V AC in a 3-phase configuration and features a 200kA interrupting capacity at 240V for robust short-circuit protection. The switch is constructed with a NEMA 1 enclosure measuring 736.6 mm H x 435.10 mm W x 209.55 mm D and weighs 43.901 lb, accepting Class R fuses and accommodating wire sizes from #6 to 250 kcmil for aluminum or copper conductors. It is UL98 certified, ensuring compliance with safety standards for disconnect switches. This unit is typically applied in industrial facilities, manufacturing plants, and commercial buildings for motor control and feeder circuit isolation.

Key Features & Specifications
  • Type: H-Type, Fusible Safety Disconnect Switch
  • Voltage Rating: 240V AC
  • Current Rating: 200A
  • Configuration: Single, 3-Pole
  • Phase: 3
  • AIC Rating: 200kA @ 240V
  • Fuse Class: R
  • Wire Size: #6 to 250 AWG/kcmil (Al/Cu)
  • Dimensions: 736.6 mm H x 435.10 mm W x 209.55 mm D (29 in x 17.13 in x 8.25 in)
  • Weight: 43.901 lb
  • Standards: UL98 Certified
  • NEMA Rating: 1
  • Switch Style: Fusible
  • Applications: Industrial power distribution, motor control, feeder circuit isolation


Product Identification
  • UPC: 785901480501
  • GTIN: 00785901480501
