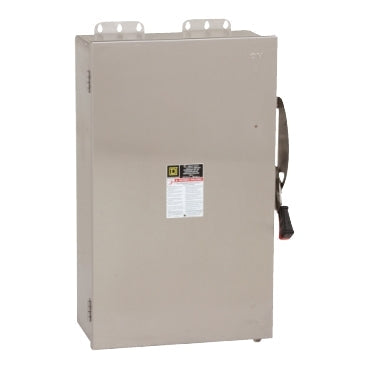

Square D H324DS - Fusible Safety Switch 200A 240V 3P (NEMA 4/4X)

Square D
Price
Save $4,913.64
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Square D H324DS is a heavy-duty industrial safety switch designed for providing a visible disconnect and overcurrent protection in three-phase electrical systems. It is rated for 240V AC operation with a 200A current capacity and features a 200kA interrupting rating at 240V for robust short-circuit protection. The switch is constructed within a NEMA 4/4X rated enclosure measuring 736.6 mm H x 438.15 mm W x 222.25 mm D and weighing 57.001 lb, ensuring durability in harsh, corrosive environments. It complies with industry standards for safety disconnects and is typically applied in industrial power distribution, motor control centers, and machinery requiring a fused disconnect for maintenance and protection.

Key Features & Specifications
  • Type: H-Type, Fusible Safety Disconnect Switch, Series F Family
  • Voltage Rating: 240V AC
  • Current Rating: 200A
  • Configuration: Single
  • Poles: 3
  • Phase: 3
  • AIC Rating: 200kA @ 240V
  • Fuse Class: R
  • Wire Size: AWG 6 to 250 KCMil (Copper/Aluminum)
  • NEMA Rating: 4/4X
  • Dimensions: 736.6 mm H x 438.15 mm W x 222.25 mm D (29 in x 17.25 in x 8.75 in)
  • Weight: 57.001 lb
  • Switch Style: Fusible
  • Item Subcategory: Disconnect


Product Identification
  • UPC: 078590102373
  • GTIN: 00785901023739
