H322DS Square D Series F Disconnect Switch - Essential Electric Supply
Square D H322DS - Heavy-Duty Safety Switch 200A 600V
Square D H322DS - Heavy-Duty Safety Switch 200A 600V
H322DS Square D Series F Disconnect Switch - Essential Electric Supply
Square D H322DS - Heavy-Duty Safety Switch 200A 600V
Square D H322DS - Heavy-Duty Safety Switch 200A 600V

Square D H322DS - Heavy-Duty Safety Switch 200A 600V

Square D
Price
Save $841.76
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price

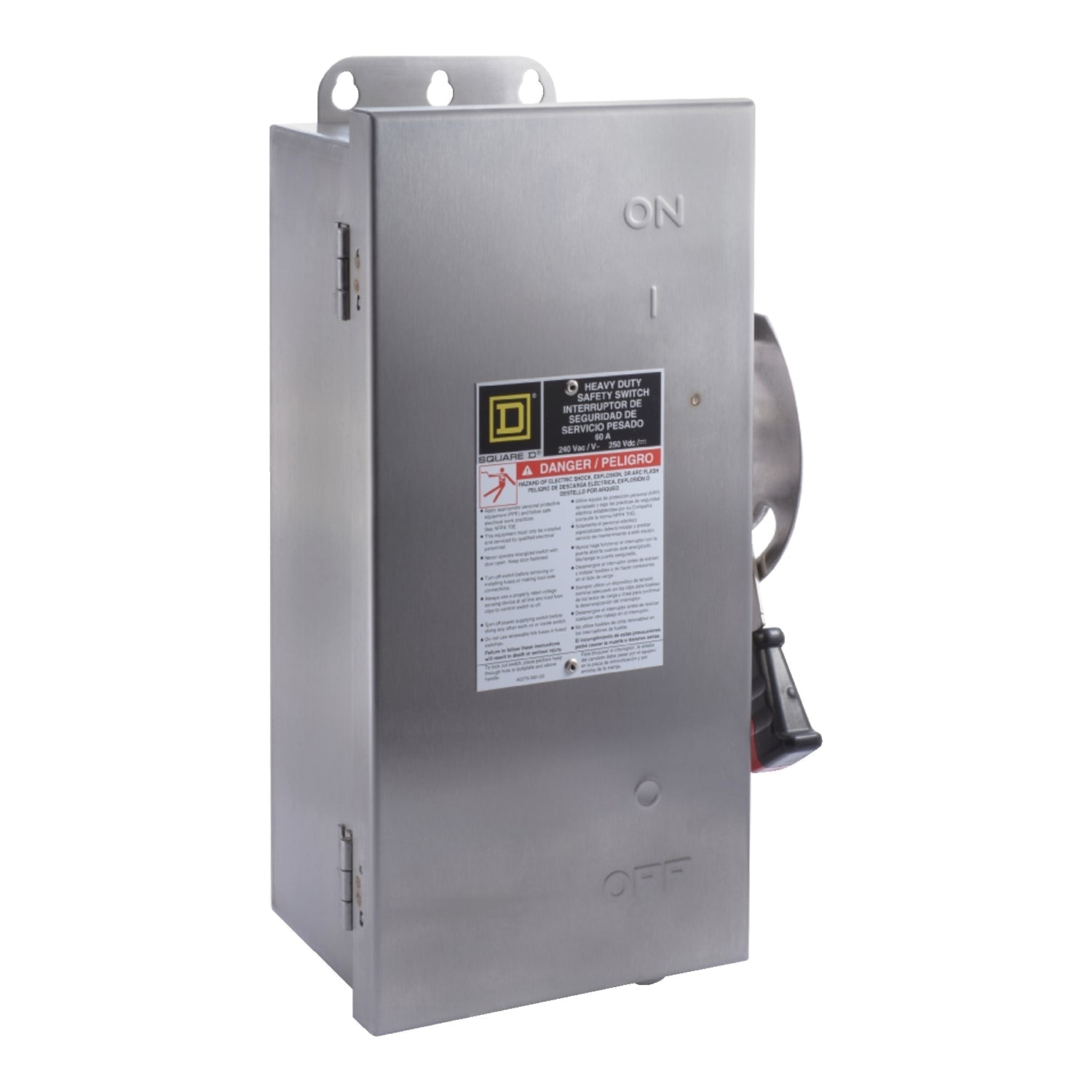

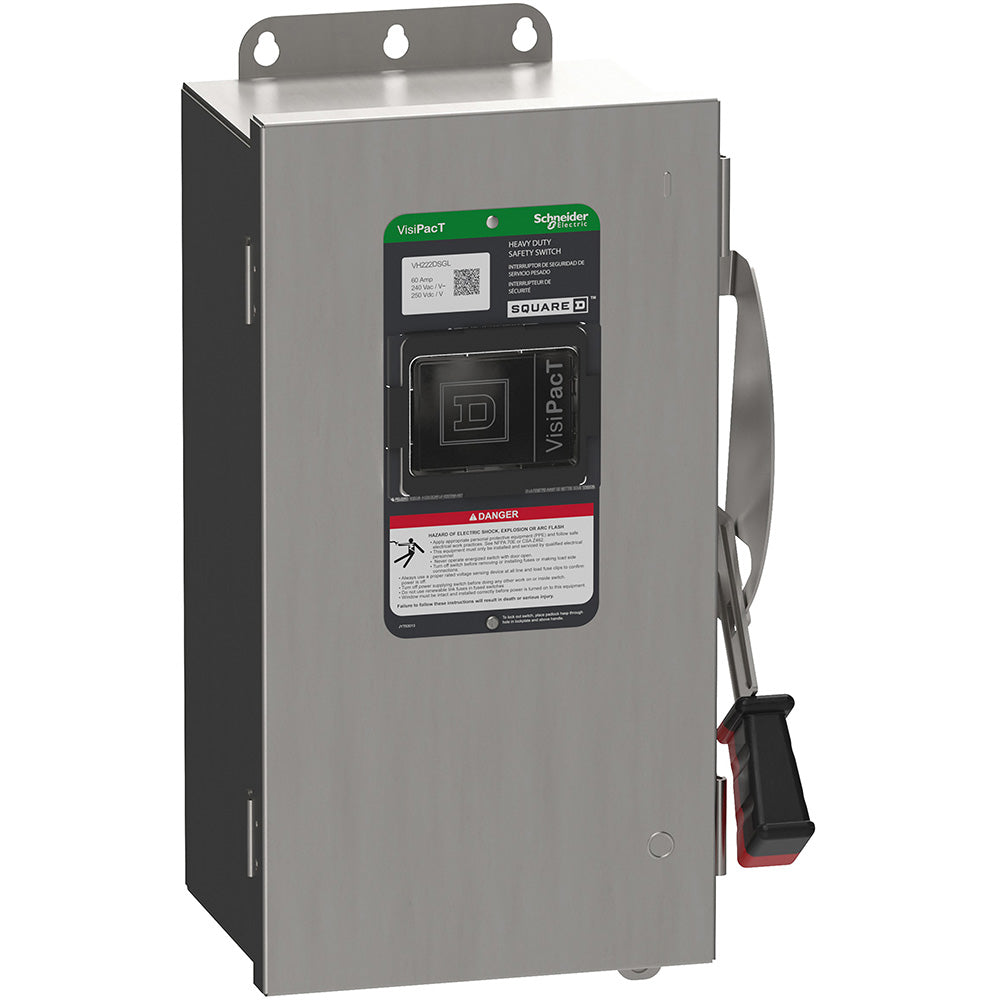

Square D H322DS is a heavy-duty safety switch designed for providing a visible disconnect and isolation point in industrial power circuits. It is engineered for systems requiring a 600V AC maximum voltage and a 200A continuous current rating, housed within a robust NEMA 1 steel enclosure measuring 14.93 in (379.22 mm) H x 7.22 in (183.39 mm) W x 5.11 in (129.79 mm) D and weighing 13.479 lb. The switch is UL listed and CSA certified, ensuring compliance with North American safety standards for industrial control equipment. Its typical applications include motor control centers, industrial machinery, and power distribution panels where a reliable, visible break is required for maintenance and safety.

Key Features & Specifications
  • Type: Heavy-duty safety disconnect switch, Series F, Type H, with visible blade operation
  • Voltage Rating: 600V AC maximum
  • Current Rating: 200A
  • Dimensions: 14.93 in (379.22 mm) H x 7.22 in (183.39 mm) W x 5.11 in (129.79 mm) D
  • Standards: UL Listed, CSA Certified
  • Applications: Motor control centers, industrial machinery, power distribution panels
  • Switch Type: Safety Disconnect
  • Configuration: 3-pole
  • Enclosure: NEMA 1, steel
  • Wire Size: Accepts AWG 14 to AWG 3 Copper or AWG 12 to AWG 3 Aluminum conductors
  • Compatible Frames: NSE
  • Weight: 13.479 lb


Product Identification
  • UPC: 078590102365
  • GTIN: 00785901023654
