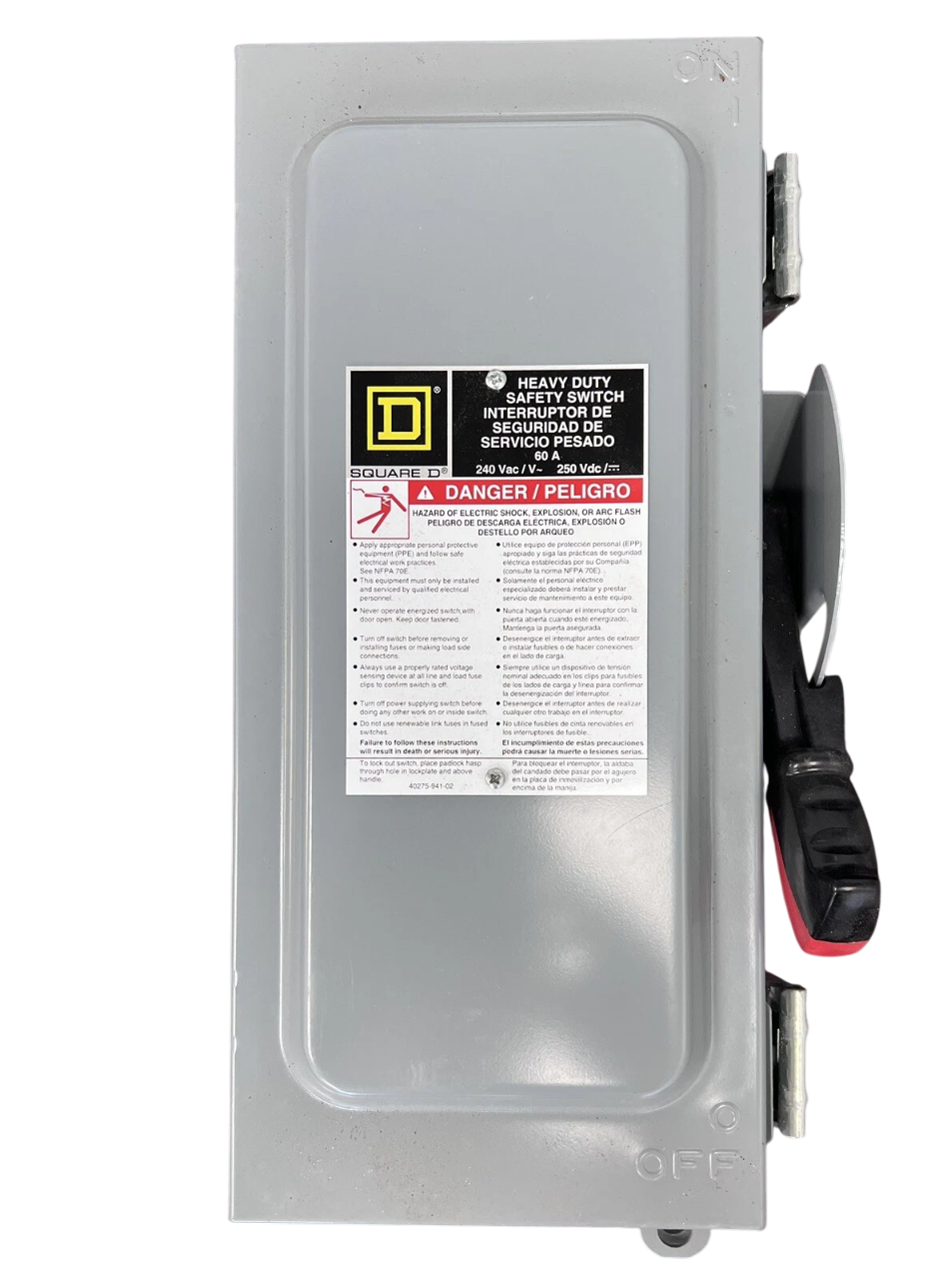

Square D H322AWK - Fusible Disconnect 60A 3P (200kA AIC, NEMA 3R/12)
Square D H322AWK - Fusible Disconnect 60A 3P (200kA AIC, NEMA 3R/12)
Square D H322AWK - Fusible Disconnect 60A 3P (200kA AIC, NEMA 3R/12)
Square D H322AWK - Fusible Disconnect 60A 3P (200kA AIC, NEMA 3R/12)

Square D H322AWK - Fusible Disconnect 60A 3P (200kA AIC, NEMA 3R/12)

Square D
Price
Save $-1,151.30
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Square D H322AWK is a fusible safety switch designed for providing a visible disconnect and overcurrent protection in three-phase industrial power systems. It is rated for 240V AC operation with a 60A current rating and features a 200kA interrupting capacity at 240V for robust short-circuit protection. The switch is constructed with a NEMA 3R/12 rated enclosure measuring 370.8 mm H x 168.4 mm W x 126.0 mm D and a weight of 10.2 lb, and it is configured as a 3-pole, single-throw device designed for use with Class R fuses and #4 AWG wire. This unit complies with relevant industry standards for safety disconnects and is typically applied in motor control centers, industrial machinery, and HVAC systems where reliable isolation and branch circuit protection are required.

Key Features & Specifications
  • Type: Fusible Safety Disconnect Switch, 3-Pole
  • Voltage Rating: 240V AC
  • Current Rating: 60A
  • Dimensions: 370.8 mm H x 168.4 mm W x 126.0 mm D (14.6 in x 6.63 in x 4.96 in)
  • Standards: NEMA 3R/12
  • Applications: Industrial machinery, Motor Control Centers (MCCs), HVAC systems
  • Switch Type: Fusible Disconnect
  • Configuration: Single Throw
  • Phase: 3
  • AIC Rating: 200kA @ 240V
  • Connection: Screw Terminal
  • Poles: 3
  • Protection: Requires Class R Fuses
  • Wire Size: #4 AWG
  • Enclosure: NEMA 3R/12
  • Weight: 10.2 lb


Product Identification
  • UPC: 78590147792
  • GTIN: 00785901477921
