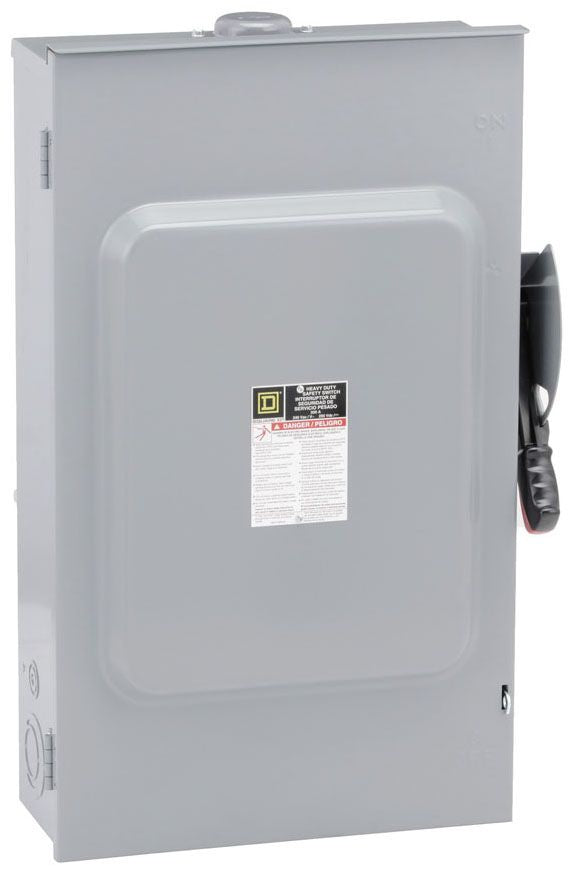

Square D H224NRB - Fusible Safety Switch, 200A 240V 2-Pole

Square D
Price
Save $893.86
/
Title
  • Low stock - 1 item left
  • Backordered, shipping soon
Call for Price
Square D H224NRB is a fusible safety switch designed for providing reliable circuit isolation and overcurrent protection in industrial applications. It is rated for 240V AC and a 200A current, featuring a robust NEMA 3R enclosure for outdoor use. The switch is constructed with a 2-pole, single-phase configuration, measures 742.95 mm H x 435.10 mm W x 215.9 mm D, and weighs 42.92 lb. It complies with industry standards for safety disconnects and is engineered for a high 200kA interrupting capacity at 240V. Typical applications include service entrance equipment, motor control centers, and main distribution panels where fused protection is required.

Key Features & Specifications
  • Type: Fusible Safety Disconnect Switch, Series F, Type H
  • Voltage Rating: 240V AC
  • Current Rating: 200A
  • Configuration: Single, 2-Pole
  • Phase: 1
  • AIC Rating: 200kA @ 240V
  • Fuse Class: R
  • Wire Size: #6 to 250 AWG/kcmil (Al/Cu)
  • Dimensions: 742.95 mm H x 435.10 mm W x 215.9 mm D (29.25 in x 17.13 in x 8.5 in)
  • Weight: 42.92 lb
  • NEMA Rating: 3R
  • Compatible Frames: FAP
  • Switch Style: Fusible


Product Identification
  • UPC: 785901478249
  • GTIN: 00785901478249
