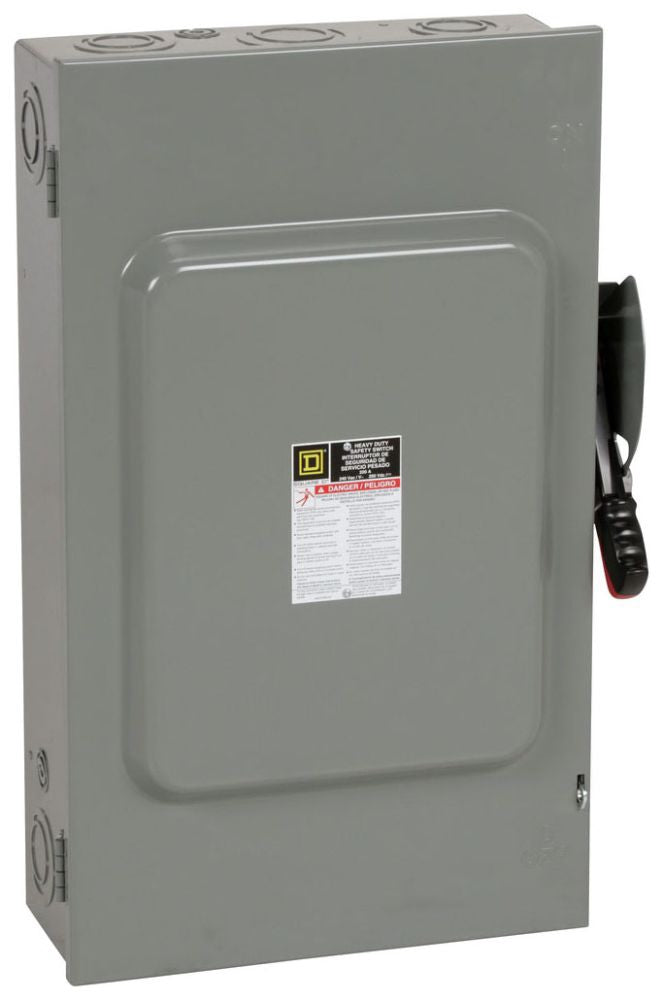

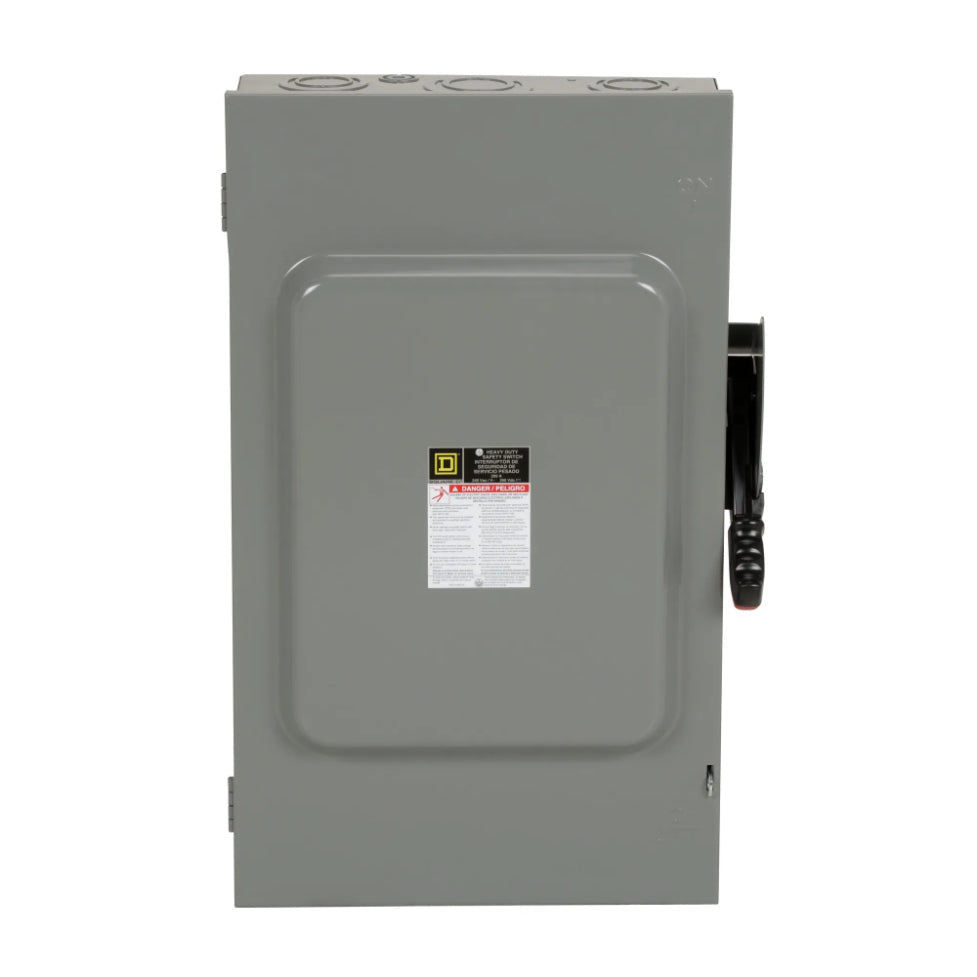

Square D H224N is a fusible safety switch designed for providing visible disconnect and overcurrent protection in industrial power distribution. It is rated for 240V AC systems with a 200A current capacity and features a robust NEMA 1 enclosure measuring 736.6 mm H x 435.1 mm W x 209.55 mm D with a weight of 41.74 lb. The switch is UL Listed and engineered for a high 200kA interrupting capacity at 240V, ensuring reliable protection. Its two-pole, single-phase configuration with Class R fuse compatibility makes it suitable for motor control and feeder circuit applications where a visible break is required.

Key Features & Specifications
  • Type: Fusible Safety Disconnect Switch, Series F, Type H
  • Voltage Rating: 240V AC
  • Current Rating: 200A
  • Dimensions: 736.6 mm H x 435.1 mm W x 209.55 mm D (29 in x 17.13 in x 8.25 in)
  • Standards: UL Listed
  • Applications: Industrial power distribution, motor control, and feeder circuits
  • Switch Type: Fusible
  • Configuration: Single
  • Poles: 2
  • AIC Rating: 200kA @ 240V
  • Phase: 1
  • Fuse Class: R
  • Wire Size: 6 to 250 AWG/kcmil (Al/Cu)
  • NEMA Rating: 1
  • Compatible Frames: FAP
  • Weight: 41.74 lb


Product Identification
  • UPC: 785901477952
  • GTIN: 00785901477952
