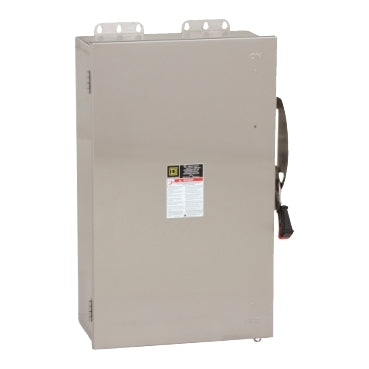

Square D H224DS - Fusible Safety Switch 200A (NEMA 4/4X)

Square D
Price
Save $6,960
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Square D H224DS is a fusible safety switch designed for providing reliable circuit isolation and overcurrent protection in industrial applications. It is rated for 240V AC and a continuous current of 200A, featuring a robust construction with dimensions of 736.6 mm H x 450.85 mm W x 225.55 mm D and a weight of 55.671 lb. This disconnect switch complies with NEMA 4/4X standards for watertight and corrosion-resistant enclosures and is engineered for use with Class R fuses to achieve an interrupting rating of 200kA at 240V. Its single-phase, 2-pole configuration makes it suitable for protecting motor control centers, industrial machinery, and power distribution equipment.

Key Features & Specifications
  • Type: Fusible Safety Disconnect Switch, NEMA 4/4X Enclosure
  • Voltage Rating: 240V AC
  • Current Rating: 200A
  • Dimensions: 736.6 mm H x 450.85 mm W x 225.55 mm D (29 in x 17.75 in x 8.88 in)
  • Standards: NEMA 4/4X
  • Applications: Motor Control Centers, Industrial Machinery, Power Distribution
  • Switch Type: Fusible
  • Configuration: Single
  • Phase: 1
  • Poles: 2
  • AIC Rating: 200kA @ 240V
  • Fuse Class: R
  • Wire: 3
  • Compatible Frames: FAP
  • Weight: 55.671 lb


Product Identification
  • UPC: 078590102372
