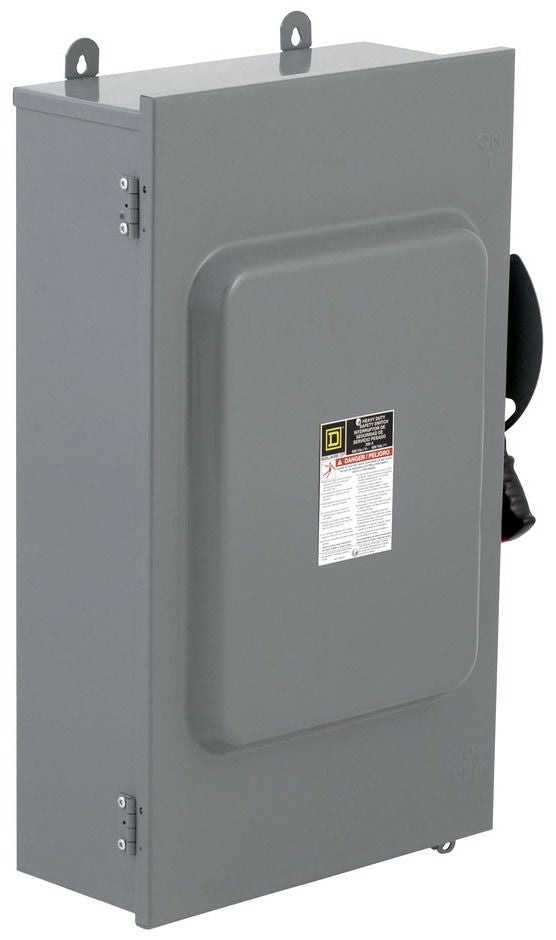

Square D H224AWK is a fusible safety switch designed for providing reliable circuit isolation and protection in industrial power distribution. It is rated for 240V AC, 200A, single-phase operation and features a 200kA interrupting capacity at 240V for robust short-circuit protection. The unit is constructed with a durable NEMA 3R/12 rated enclosure measuring 736.6 mm H x 438.15 mm W x 222.25 mm D and weighs 42.86 lb, designed for compatibility with FAP frames and R-class fuses. This disconnect switch complies with industry standards for safety and is typically applied in industrial facilities, manufacturing plants, and commercial electrical systems requiring a main or branch circuit disconnect.

Key Features & Specifications
  • Type: H-Series, Fusible Safety Disconnect Switch
  • Voltage Rating: 240V AC
  • Current Rating: 200A
  • Configuration: Single
  • Poles: 2
  • Phase: 1
  • AIC Rating: 200kA @ 240V
  • Fuse Class: R
  • NEMA Rating: 3R/12
  • Compatible Frames: FAP
  • Dimensions: 736.6 mm H x 438.15 mm W x 222.25 mm D (29 in x 17.25 in x 8.75 in)
  • Weight: 42.86 lb
  • Switch Style: Fusible
  • Family: Series E


Product Identification
  • UPC: 078590147822
  • GTIN: 00785901478225
