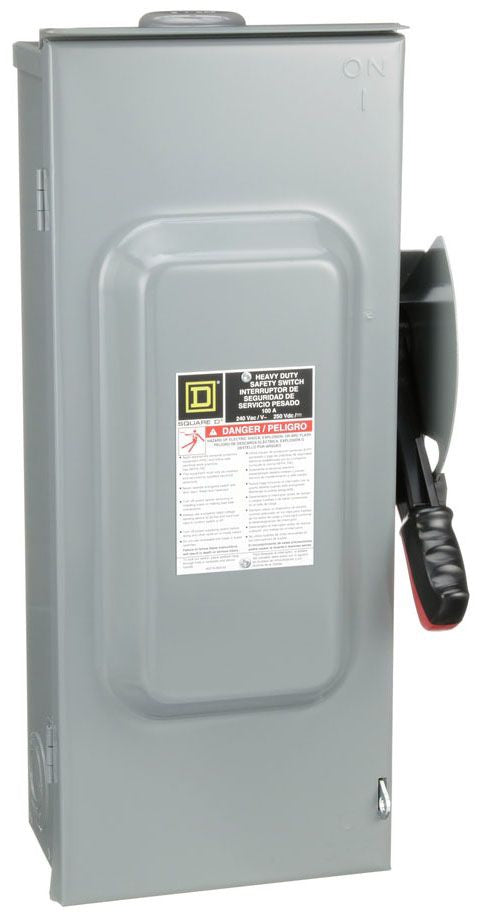

Square D H223NRB - Fusible Disconnect 100A 240V (200kA AIC)

Square D
Price
Save $421.60
/
Condition
  • Low stock - 4 items left
  • Backordered, shipping soon
Call for Price
Square D H223NRB is a fusible safety switch designed for providing visible load break isolation and overcurrent protection in industrial and commercial electrical systems. It is rated for 240V AC, 100A, single-phase operation with a 200kA interrupting capacity at 240V. The switch features a robust NEMA 3R rainproof enclosure with dimensions of 539.75 mm H x 215.9 mm W x 162.05 mm D and a weight of 17.939 lb, and it is designed for use with Class R fuses. This disconnect switch complies with industry standards for safety and is typically applied in motor control centers, HVAC systems, and industrial machinery where reliable circuit protection and isolation are required.

Key Features & Specifications
  • Type: Fusible Safety Switch, Series F, Type H, with visible blade design for load break isolation
  • Voltage Rating: 240V AC
  • Current Rating: 100A
  • Dimensions: 539.75 mm H x 215.9 mm W x 162.05 mm D (21.25 in x 8.5 in x 6.38 in)
  • Standards: NEMA 3R rated for outdoor, rainproof service
  • Applications: Motor control centers, HVAC systems, industrial machinery protection
  • Switch Type: Fusible Disconnect
  • Configuration: Single
  • Poles: 2
  • AIC rating: 200kA @ 240V
  • Phase: 1
  • Fuse Class: R
  • Compatible Frames: FAP
  • Weight: 17.939 lb


Product Identification
  • UPC: 078590147816
  • GTIN: 00785901478164
