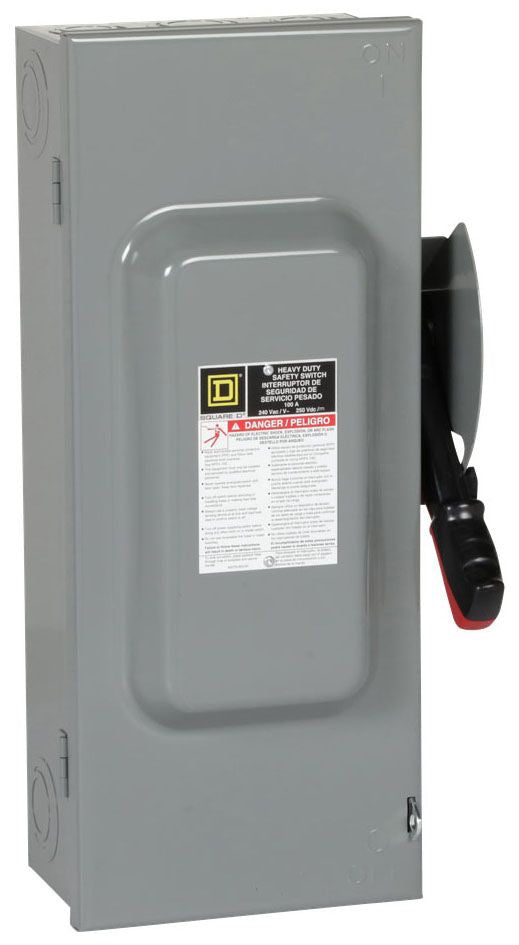

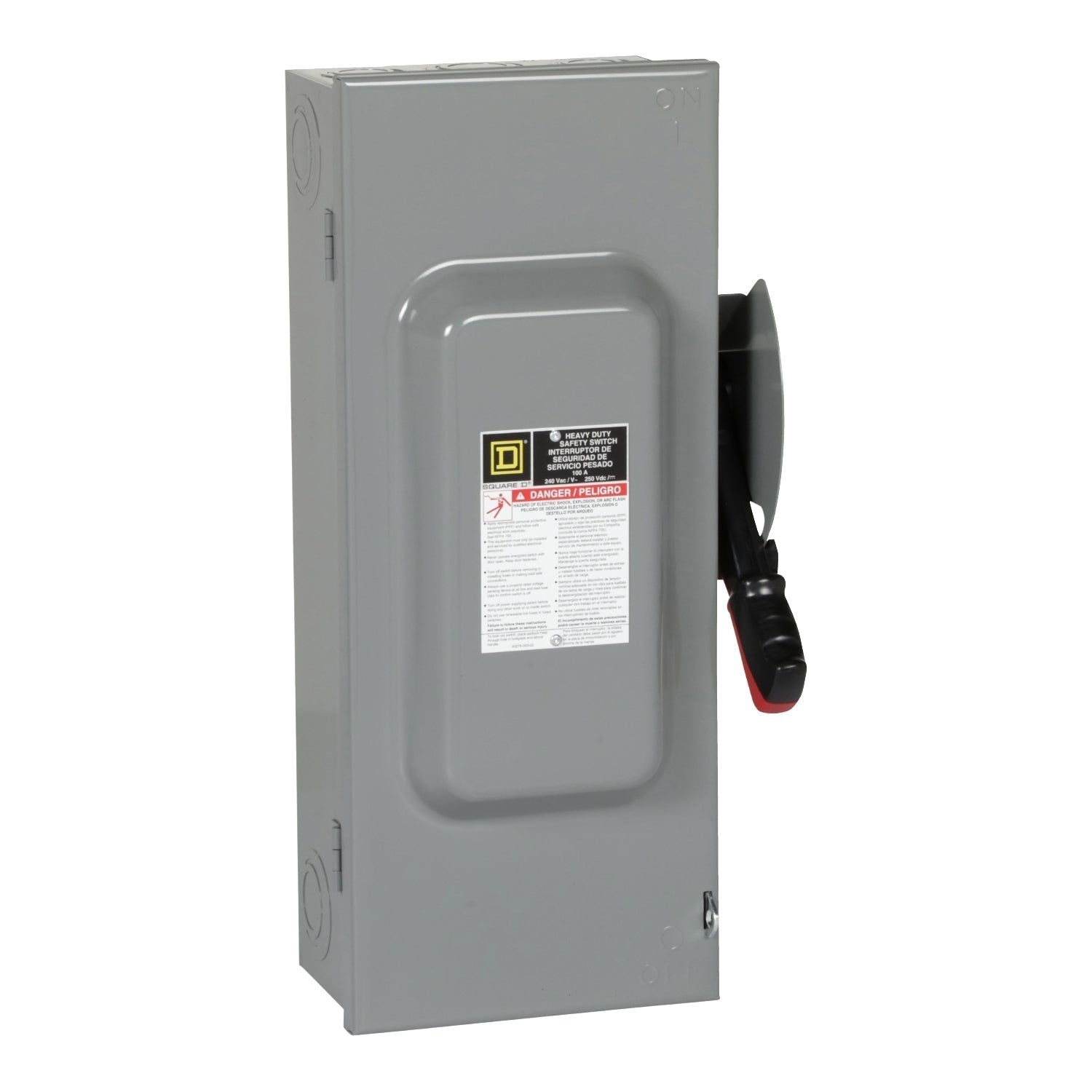

Square D H223N is a fusible safety switch designed for providing a visible disconnect and overcurrent protection in industrial power distribution. It is rated for 240V AC, 100A, and features a robust NEMA 1 enclosure measuring 539.75 mm H x 215.9 mm W x 162.05 mm D with a weight of 17.209 lb. The switch is UL Listed and engineered for a high 200kA interrupting capacity at 240V, ensuring reliable protection. Its 2-pole, single-phase configuration with Class R fuse compatibility makes it suitable for controlling motors, HVAC systems, and other critical loads in commercial and industrial facilities.

Key Features & Specifications
  • Type: Fusible safety disconnect switch, Series F, Type H
  • Voltage Rating: 240V AC
  • Current Rating: 100A
  • Dimensions: 21.25 in (539.75 mm) H x 8.5 in (215.9 mm) W x 6.38 in (162.05 mm) D
  • Weight: 17.209 lb
  • Standards: UL Listed
  • Applications: Industrial power distribution, motor control, HVAC systems
  • Switch Style: Fusible
  • Configuration: Single
  • Poles: 2
  • Phase: 1
  • AIC Rating: 200kA @ 240V
  • Fuse Class: R
  • Wire Size: #12 to #1/0 AWG (Al) or #14 to #1/0 AWG (Cu)
  • NEMA Rating: 1
  • Compatible Frames: FAP


Product Identification
  • UPC: 785901477877
  • GTIN: 00785901477877
