Square D H222N Disconnect Switch (Fusible) - Essential Electric Supply
Square D H222N - Fusible Safety Switch 60A 240V (200kA AIC)
Square D H222N - Fusible Safety Switch 60A 240V (200kA AIC)
Square D H222N Disconnect Switch (Fusible) - Essential Electric Supply
Square D H222N - Fusible Safety Switch 60A 240V (200kA AIC)
Square D H222N - Fusible Safety Switch 60A 240V (200kA AIC)

Square D H222N - Fusible Safety Switch 60A 240V (200kA AIC)

Square D
Price
Save $427.23
/
Title
  • Low stock - 1 item left
  • Backordered, shipping soon
Call for Price

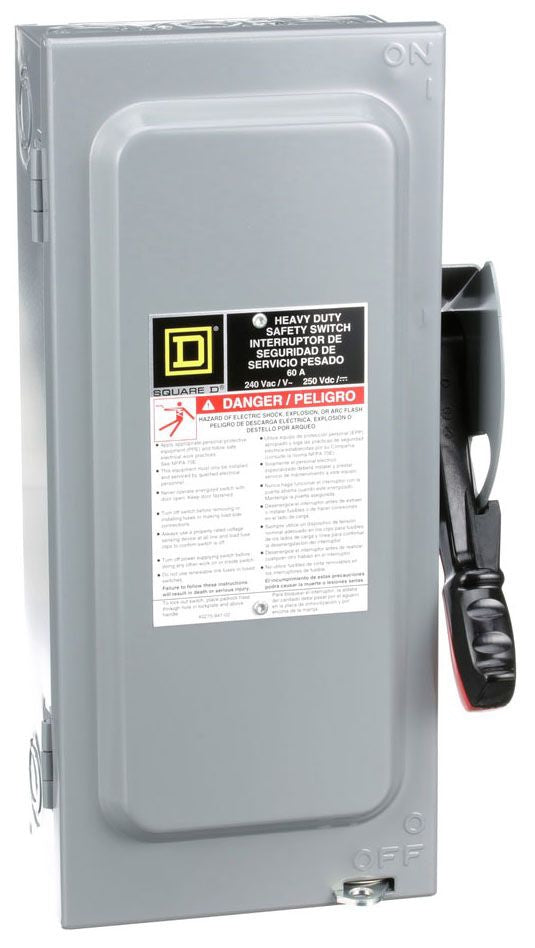

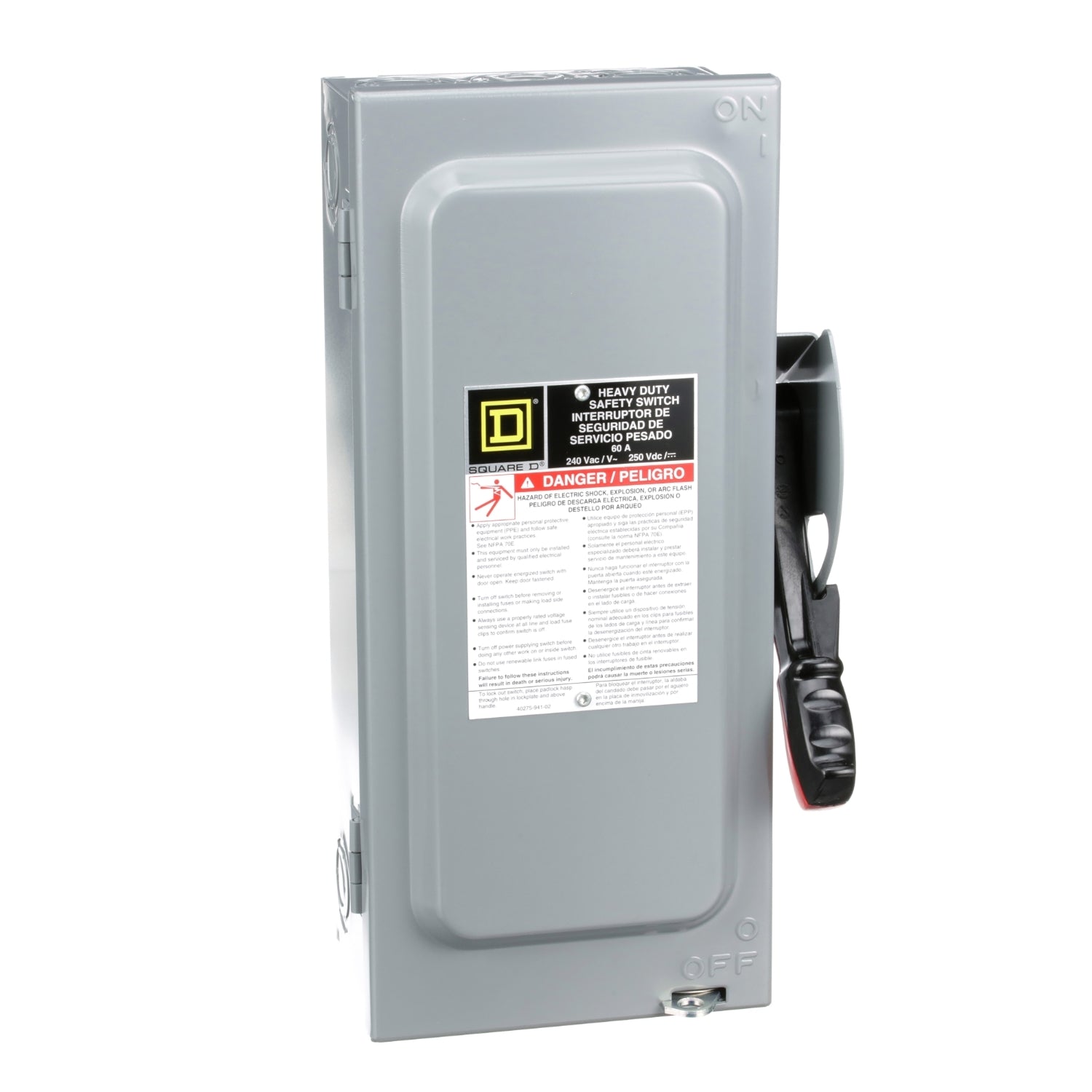

Square D H222N is a fusible safety switch designed for providing visible disconnect and overcurrent protection in industrial and commercial electrical systems. It is rated for 240V AC, 60A, and features a robust NEMA 1 enclosure with dimensions of 370.8 mm H x 165.1 mm W x 123.95 mm D and a weight of 7.95 lb. The switch is constructed for high-fault current protection with an interrupting rating of 200kA at 240V and complies with industry standards for safety disconnects. Its 2-pole, single-phase fusible configuration is typically applied in motor control and power distribution applications where reliable circuit isolation is required.

Key Features & Specifications
  • Type: H-Type, Fusible Safety Disconnect Switch
  • Voltage Rating: 240V AC
  • Current Rating: 60A
  • Dimensions: 14.6 in (370.8 mm) H x 6.5 in (165.1 mm) W x 4.88 in (123.95 mm) D
  • Standards: NEMA 1 Enclosure Rating
  • Applications: Industrial Motor Control, Power Distribution
  • Switch Style: Fusible
  • Configuration: Single
  • Poles: 2
  • AIC rating: 200kA@240V
  • Phase: 1
  • Fuse Class: R
  • Compatible Frames: FAP
  • Family: Series F
  • Weight: 7.95 lb


Product Identification
  • UPC: 785901477709
  • GTIN: 00785901477709
