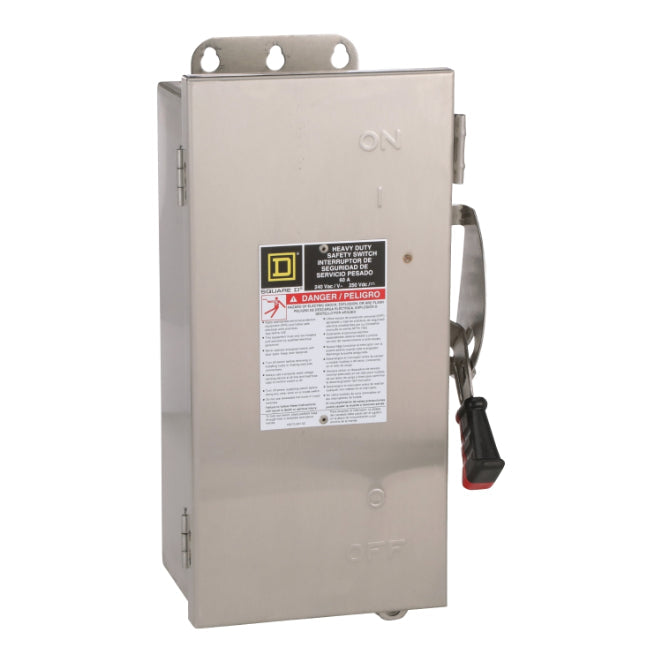

Square D H222DS - Fusible Safety Switch 60A 240V (NEMA 4/4X)
Square D H222DS - Fusible Safety Switch 60A 240V (NEMA 4/4X)
Square D H222DS Disconnect Switch (Fusible) - Essential Electric Supply
Square D H222DS - Fusible Safety Switch 60A 240V (NEMA 4/4X)
Square D H222DS - Fusible Safety Switch 60A 240V (NEMA 4/4X)

Square D H222DS - Fusible Safety Switch 60A 240V (NEMA 4/4X)

Square D
Price
Save $1,290.61
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Square D H222DS is a fusible safety switch designed for providing a visible disconnect and overcurrent protection in industrial power distribution. It is rated for 240V AC, 60A, single-phase operation and features a robust NEMA 4/4X enclosure measuring 379.22 mm H x 183.39 mm W x 129.79 mm D with a weight of 13.3 lb. The switch is UL Listed and offers a high interrupting capacity of 200kA at 240V, ensuring reliable protection. Its 2-pole, fusible design with R-class fuse compatibility and a wiring range of #14 to #3 AWG makes it suitable for motor control and feeder disconnects in demanding environments.

Key Features & Specifications
  • Type: Fusible Safety Disconnect Switch, Series F, Type H
  • Voltage Rating: 240V AC
  • Current Rating: 60A
  • Dimensions: 14.93 in (379.22 mm) H x 7.22 in (183.39 mm) W x 5.11 in (129.79 mm) D
  • Standards: UL Listed
  • Applications: Industrial power distribution, motor control, feeder disconnect
  • Switch Style: Fusible
  • Configuration: Single
  • Poles: 2
  • Phase: 1
  • AIC Rating: 200kA @ 240V
  • Wire Size: #14 to #3 AWG (Al/Cu)
  • Fuse Class: R
  • NEMA Rating: 4/4X
  • Compatible Frames: NSE
  • Weight: 13.3 lb


Product Identification
  • UPC: 785901023647
  • GTIN: 00785901023647
