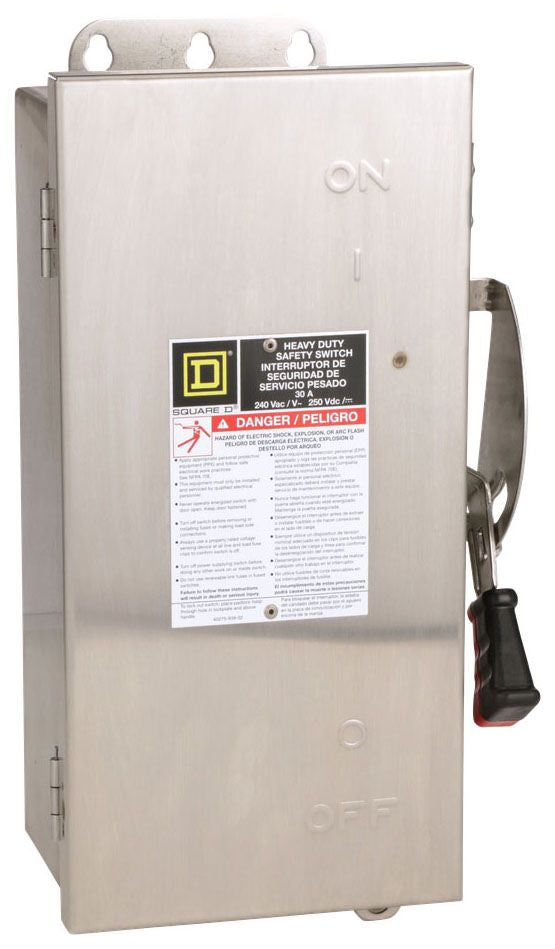

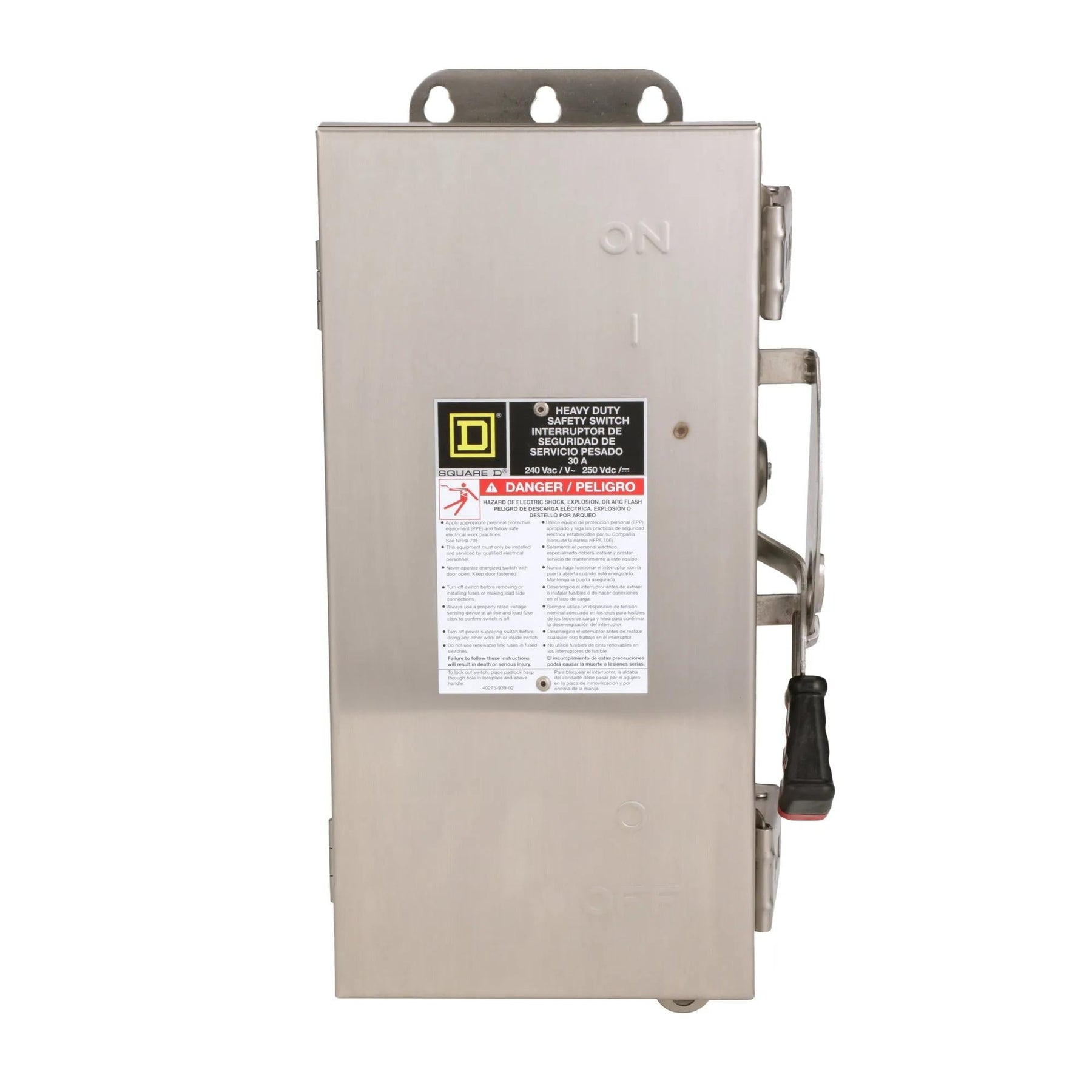

The Square D H221DS is a fusible safety switch designed to provide reliable circuit isolation and overcurrent protection in industrial applications. It is rated for 30A at 240V AC and features a robust construction with a compact footprint of 379.22 mm H x 183.39 mm W x 129.79 mm D and a weight of 13.329 lb. This UL-certified disconnect switch complies with NEMA 4/4X/5 standards for enclosure integrity and offers a high interrupting capacity of 200kA at 240V. It is typically used for motor and feeder circuit protection in demanding environments where a fusible disconnect is required.

Key Features & Specifications
  • Type: Fusible Safety Disconnect Switch, Series F, Type H
  • Voltage Rating: 240V AC
  • Current Rating: 30A
  • Dimensions: 14.93 in (379.22 mm) H x 7.22 in (183.39 mm) W x 5.11 in (129.79 mm) D
  • Standards: UL Certified, NEMA 4/4X/5 Enclosure Rating
  • Applications: Industrial motor and feeder circuit protection and isolation
  • Switch Type: Fusible Disconnect
  • Configuration: Single
  • Poles: 2
  • AIC Rating: 200kA @ 240V
  • Phase: 1
  • Fuse Class: R
  • Wire Size: AWG 12 to 6 Aluminum, AWG 14 to 6 Copper
  • Compatible Frames: FAP
  • Weight: 13.329 lb


Product Identification
  • UPC: 785901023579
  • GTIN: 00785901023579
