Square D H100XFA - Non-Fusible Safety Switch, 600V 100A 3-Pole
Square D H100XFA Disconnect Switch (Non-Fusible) - Essential Electric Supply
Square D H100XFA - Non-Fusible Safety Switch, 600V 100A 3-Pole

Square D H100XFA - Non-Fusible Safety Switch, 600V 100A 3-Pole

Square D
Price
Save $-2,436.17
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price

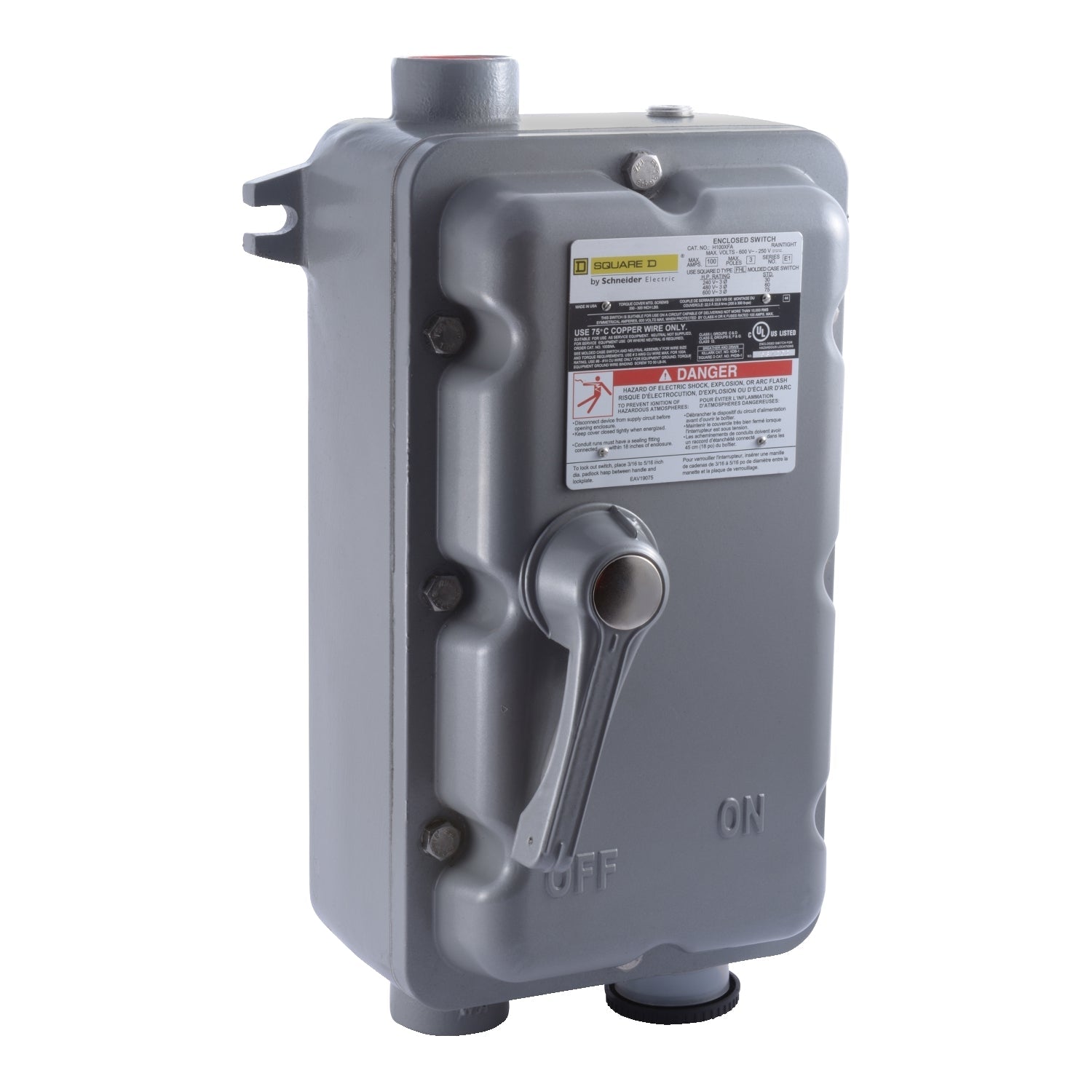

Square D H100XFA is a non-fusible safety switch designed for providing a visible disconnect means and overload protection in industrial power circuits. It is rated for 600V AC and 100A on a 3-phase system, constructed with a rugged metal enclosure measuring 404.62 mm H x 250.70 mm W x 176.78 mm D and weighing 27.291 lb. The switch is UL and CSA certified, meeting NEMA 9-Jul standards for hazardous locations, and is typically applied in manufacturing and processing environments where reliable circuit isolation is required for motors and machinery.

Key Features & Specifications
  • Type: H-Type, Non-Fusible Safety Disconnect Switch, Series E
  • Voltage Rating: 600V AC
  • Current Rating: 100A
  • Configuration: Single
  • Poles: 3
  • Phase: 3
  • Dimensions: 15.93 in H x 9.87 in W x 6.96 in D (404.62 mm x 250.70 mm x 176.78 mm)
  • Weight: 27.291 lb
  • Wire Size: AWG 12 to 1/0 Aluminum, AWG 14 to 1/0 Copper
  • Switch Style: Non-Fusible
  • NEMA Rating: 9-Jul
  • Standards: UL, CSA
  • Compatible Frames: FAP
  • Country of Origin: United States


Product Identification
  • UPC: 785901076902
  • GTIN: 00785901327578
