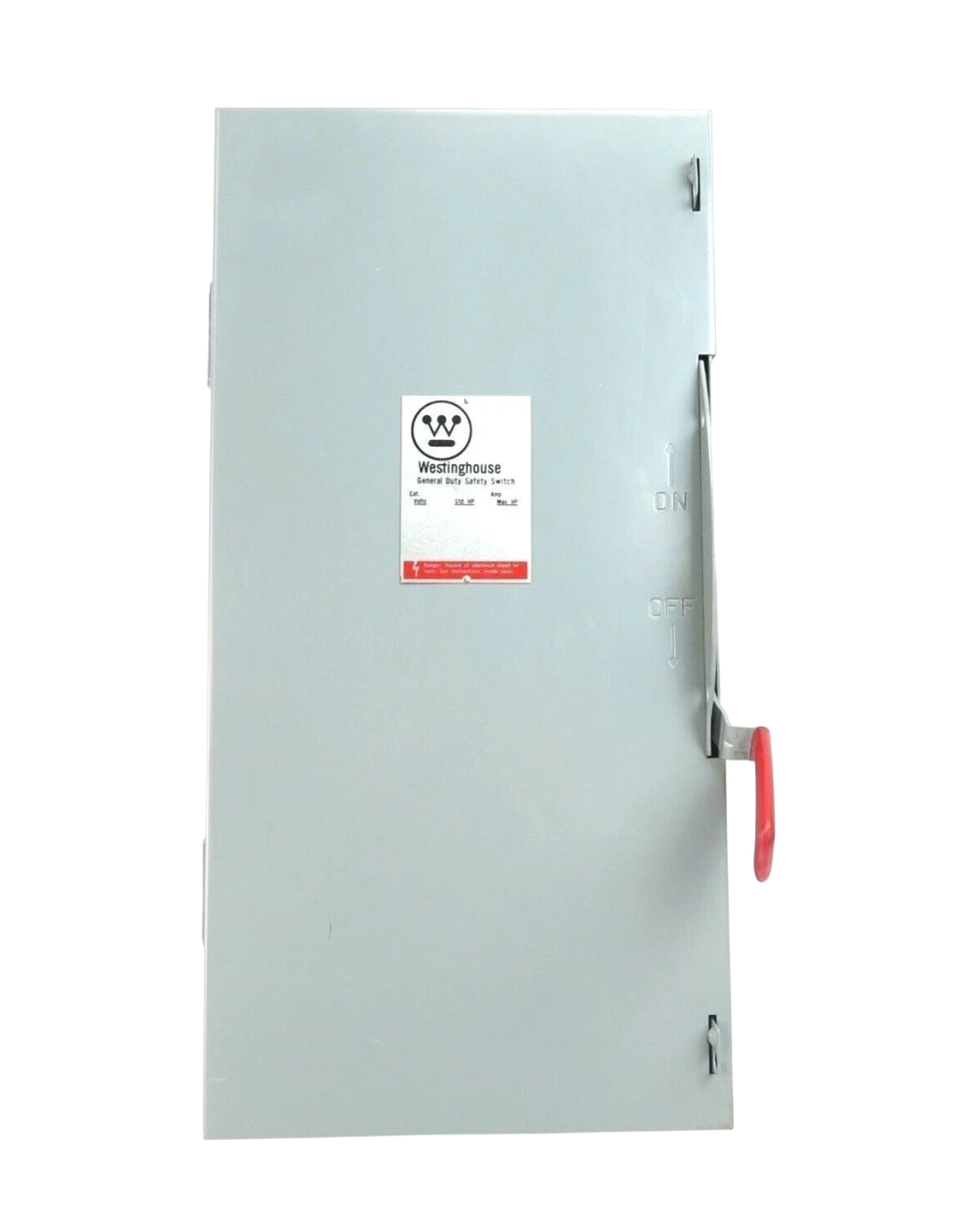

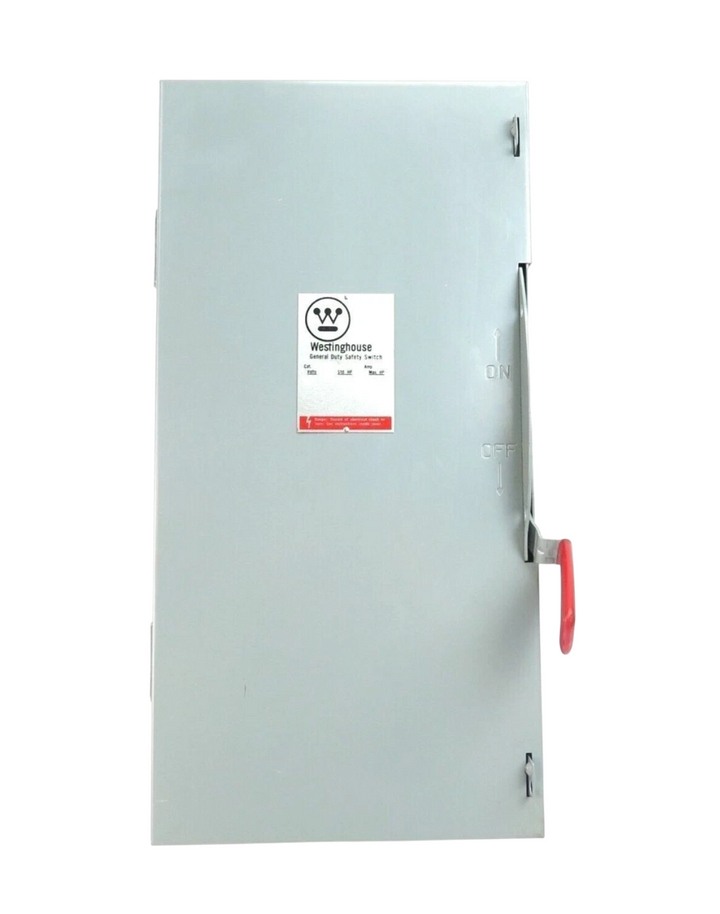

Westinghouse GUN323 is a non-fusible safety disconnect switch designed for providing a visible means of isolation and load break protection in industrial power distribution systems. It is rated for 240V AC, 3-phase operation with a continuous current rating of 100A and an interrupting capacity of 100kA at 240V. The switch features a robust, single-configuration design with three poles, housed in a NEMA Type 1 enclosure measuring 25.984 x 13.78 x 7.48 inches and weighing 19.643 lb. It complies with industry standards for safety disconnects and is designed for compatibility with ED-frame equipment. Typical applications include motor control centers, industrial machinery, and panelboards where reliable isolation is required.

Key Features & Specifications
  • Type: Non-Fusible Safety Disconnect Switch, G Series (GUN), Single Configuration
  • Voltage Rating: 240V AC
  • Current Rating: 100A
  • Phase: 3
  • Poles: 3
  • AIC Rating: 100kA @ 240V
  • Configuration: Single
  • Switch Style: Non-Fusible
  • NEMA Rating: 1
  • Compatible Frames: ED
  • Dimensions: 25.984 x 13.78 x 7.48 inch
  • Weight: 19.643 lb
  • Standards: Industry standards for safety disconnects
  • Applications: Motor Control Centers, Industrial Machinery, Panelboards
  • Country of Origin: Mexico


Product Identification
  • UPC: 040892004878
  • GTIN: 00782113207605
