Siemens
Price
Save $0
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price

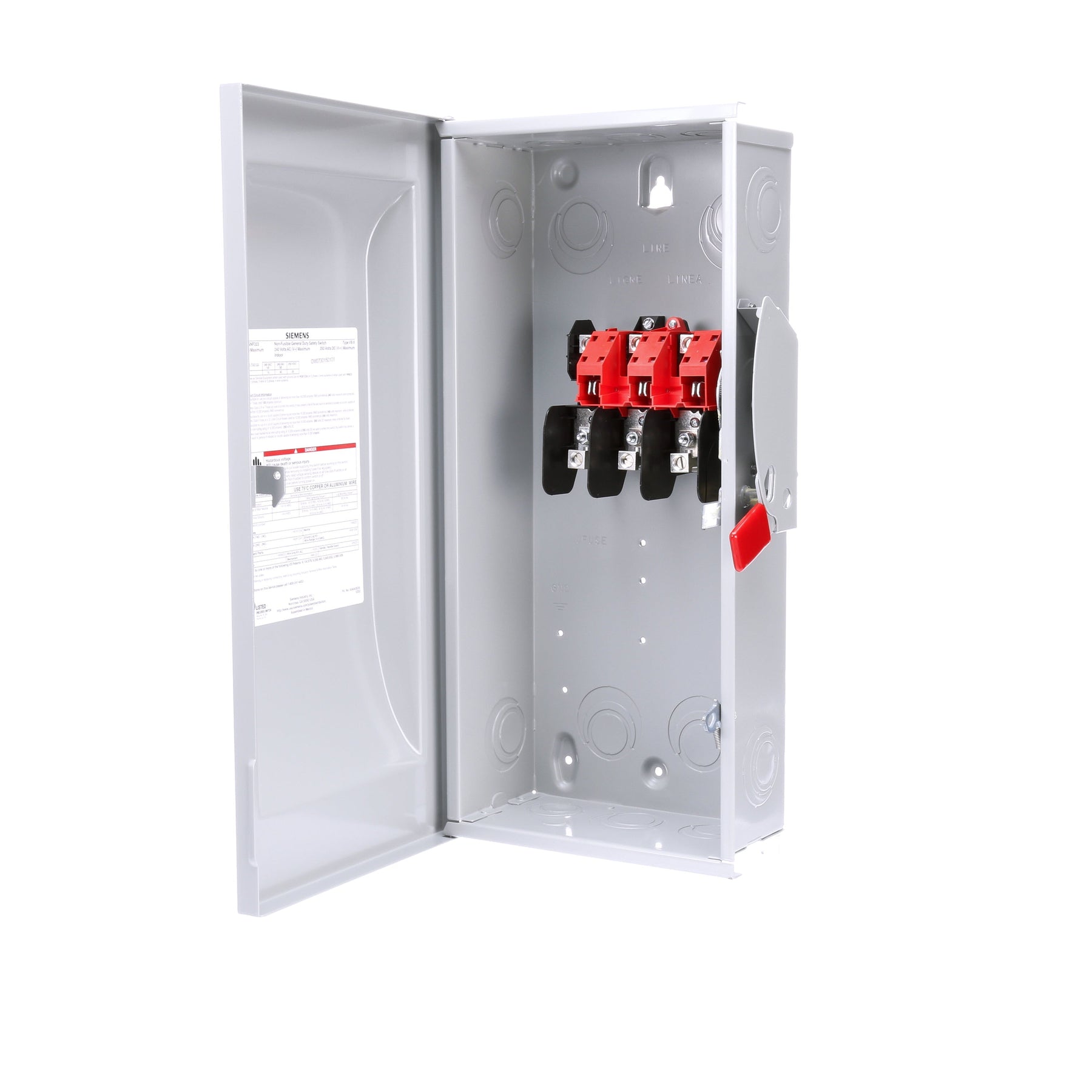

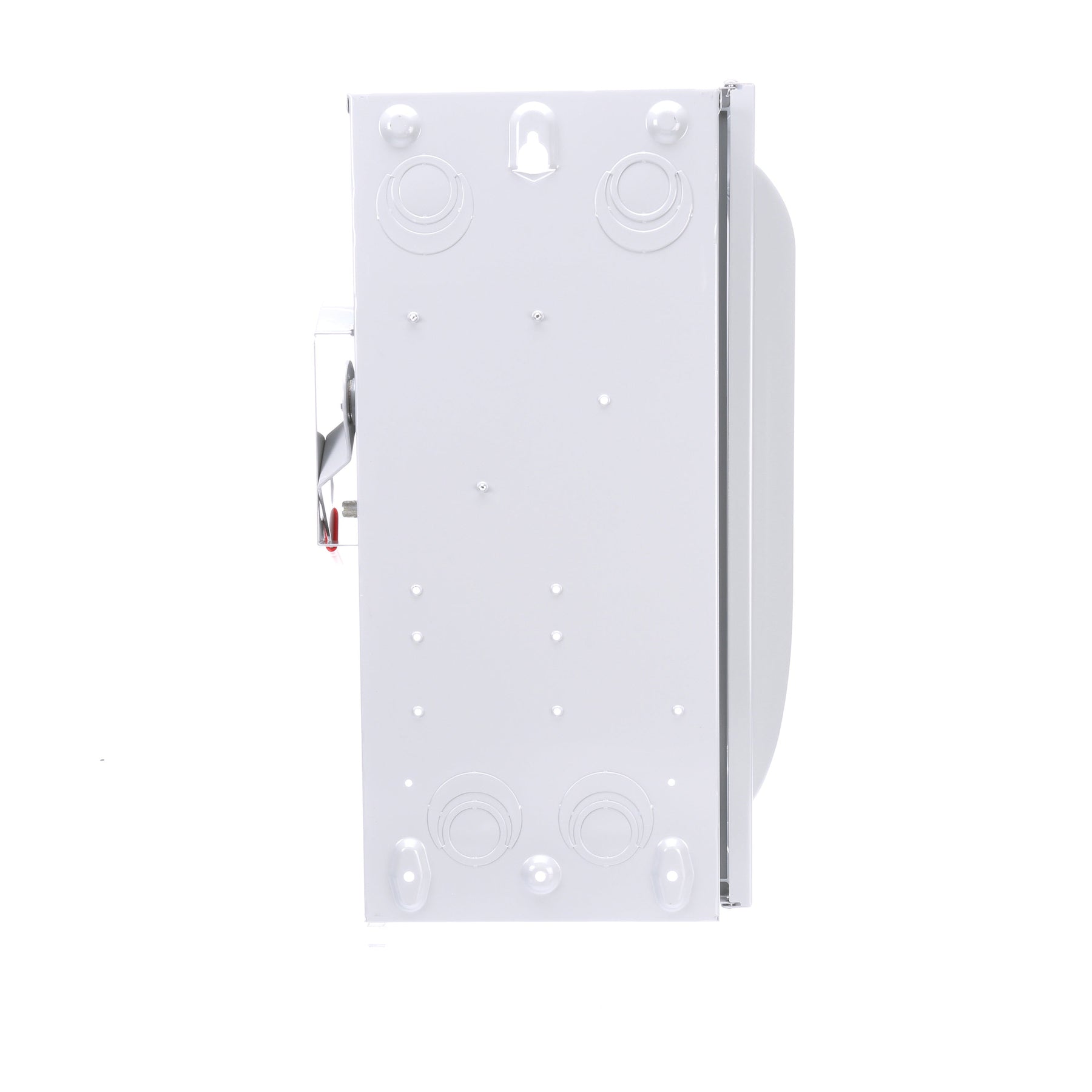

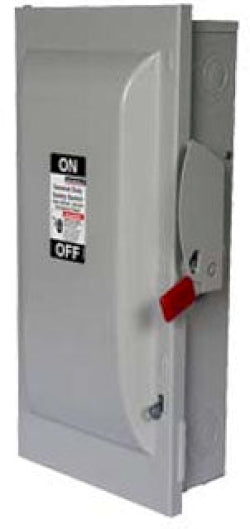

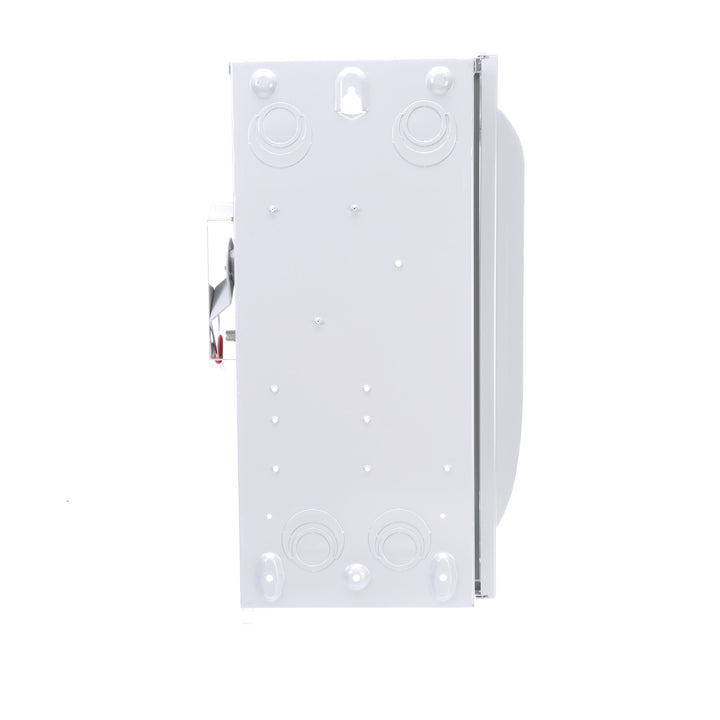

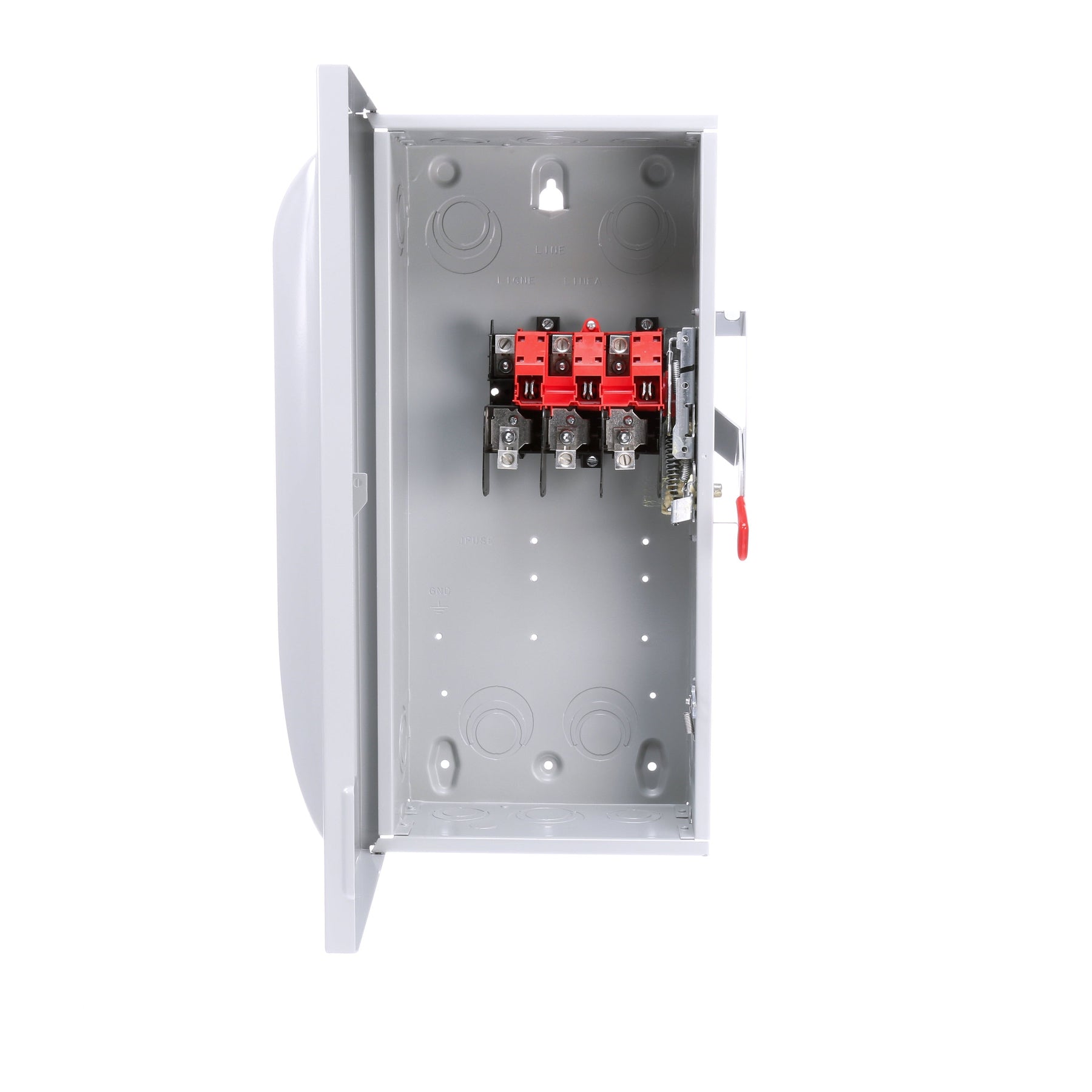

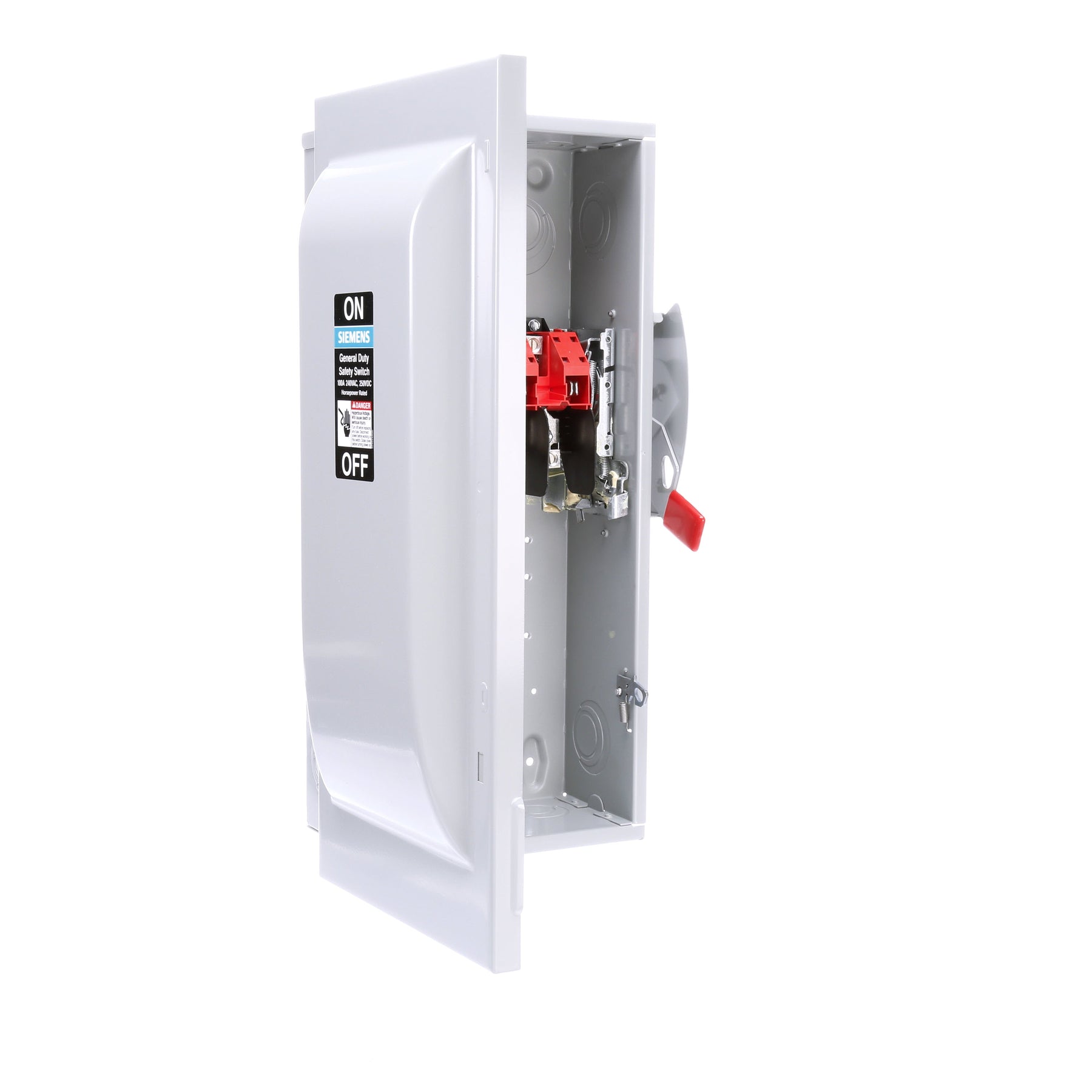

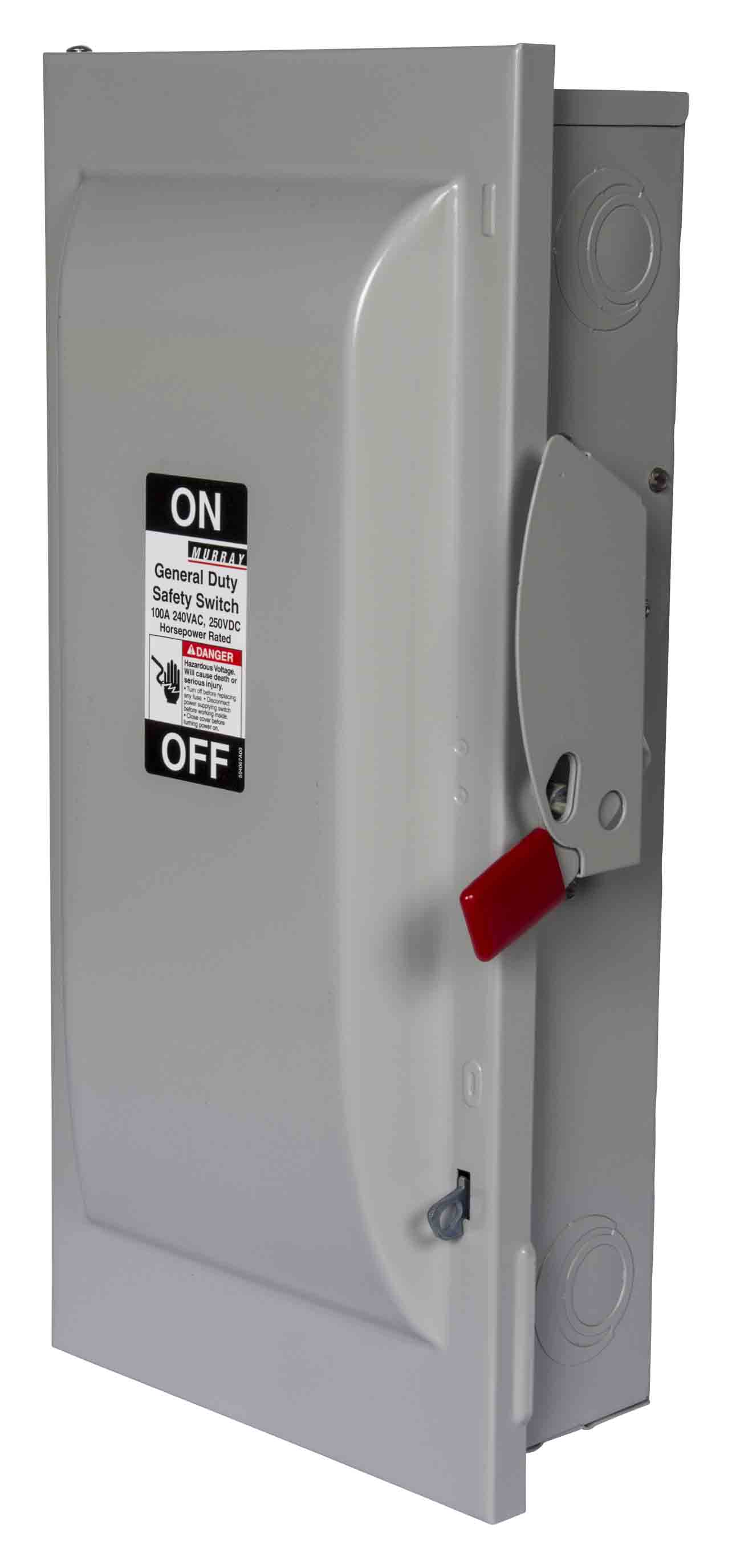

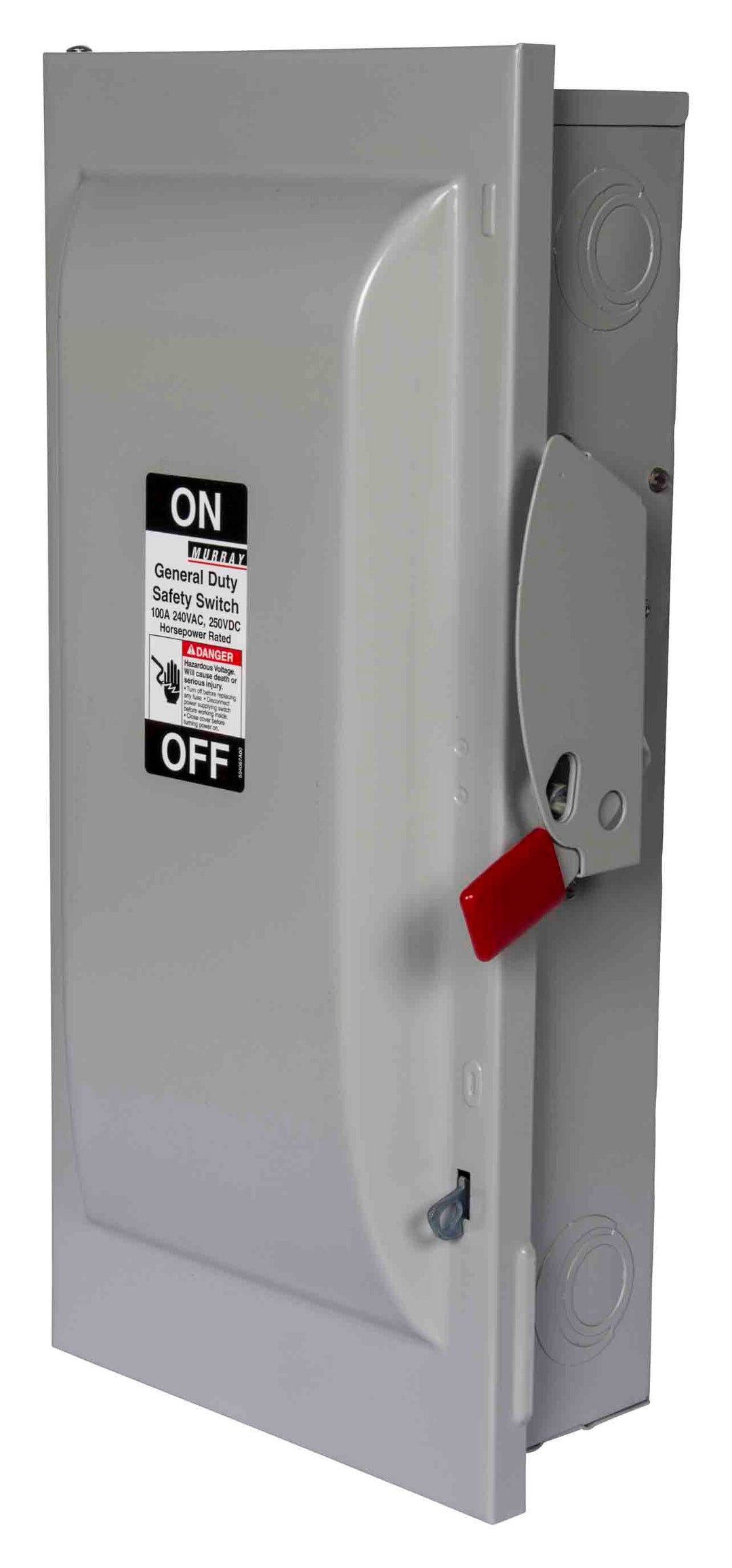

Siemens GNF323 is a non-fusible disconnect switch designed for providing a visible means of isolation and load break for three-phase industrial power circuits. It is rated for 240V AC operation with a 100A current rating and a high interrupting capacity of 100kA at 240V. The robust unit features a three-pole, single-configuration design housed in a NEMA 1 enclosure with dimensions of 650 x 350 x 200 mm (25.591 x 13.78 x 7.874 inches) and a weight of 19.445 lb, operating reliably within a temperature range of -25°C to 70°C (-13°F to 158°F). As part of the VBII Series, it is UL Listed and compatible with MHP frames, ensuring compliance with industry safety standards for use in motor control centers, industrial machinery, and power distribution panels where a non-fusible isolation point is required.

Key Features & Specifications
  • Type: Non-Fusible Disconnect Switch, VBII Series
  • Voltage Rating: 240V AC
  • Current Rating: 100A
  • Configuration: Single
  • Poles: 3
  • Phase: 3
  • AIC Rating: 100kA @ 240V
  • Switch Style: Non-Fusible
  • NEMA Rating: NEMA 1
  • Temp Rating: -25°C to 70°C (-13°F to 158°F)
  • Dimensions: 650 x 350 x 200 mm (25.591 x 13.78 x 7.874 in)
  • Weight: 19.445 lb
  • Standards: UL Listed
  • Compatible Frames: MHP
  • Applications: Motor control centers, industrial machinery, power distribution isolation
  • Country of Origin: Mexico


Product Identification
  • UPC: 783643149144
  • GTIN: 00783643149144
