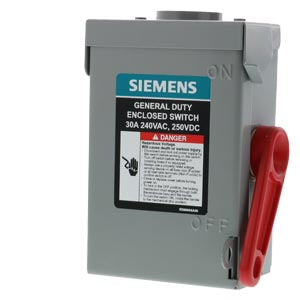

Siemens GNF321RA - Non-Fusible Disconnect Switch 30A 240V 3P

Siemens
Price
Save $538.29
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Siemens GNF321RA is a non-fusible disconnect switch designed for providing a visible break and safe isolation in three-phase industrial power circuits. It is rated for 30A at 240V AC with an interrupting capacity of 100kA and features a compact, rugged enclosure measuring 150 x 100 x 170 mm (5.906" x 3.937" x 6.693") with a weight of 2.006 lb. The switch is UL Listed, carries a NEMA 3R rating for outdoor use, and operates reliably across a temperature range of -25°C to 70°C (-13°F to 158°F). It is engineered for integration into compatible MHP panelboards and is suitable for applications such as motor control centers, HVAC systems, and industrial machinery where a reliable isolation point is required.

Key Features & Specifications
  • Type: Non-Fusible Disconnect Switch, VBII Series, Manual Operation
  • Voltage Rating: 240V AC
  • Current Rating: 30A
  • Configuration: Single Unit
  • Poles: 3
  • Phase: 3
  • AIC Rating: 100kA @ 240V
  • Dimensions: 150 x 100 x 170 mm (5.906" x 3.937" x 6.693")
  • Weight: 2.006 lb
  • Temp Rating: -25°C to 70°C (-13°F to 158°F)
  • NEMA Rating: NEMA 3R
  • Certification: UL Listed
  • Compatible Frames: MHP
  • Country of Origin: Mexico


Product Identification
  • UPC: 804766753343
  • GTIN: 00804766753343
