Eaton GHBGFEP1020 - Molded Case Breaker 20A 277V (14kA AIC)
Eaton GHBGFEP1020 - Molded Case Breaker 20A 277V (14kA AIC)
Eaton GHBGFEP1020 - Molded Case Breaker 20A 277V (14kA AIC)
Eaton GHBGFEP1020 - Molded Case Breaker 20A 277V (14kA AIC)
Eaton GHBGFEP1020 - Molded Case Breaker 20A 277V (14kA AIC)
Eaton GHBGFEP1020 - Molded Case Breaker 20A 277V (14kA AIC)

Eaton GHBGFEP1020 - Molded Case Breaker 20A 277V (14kA AIC)

Cutler Hammer
Price
Save $958.25
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price

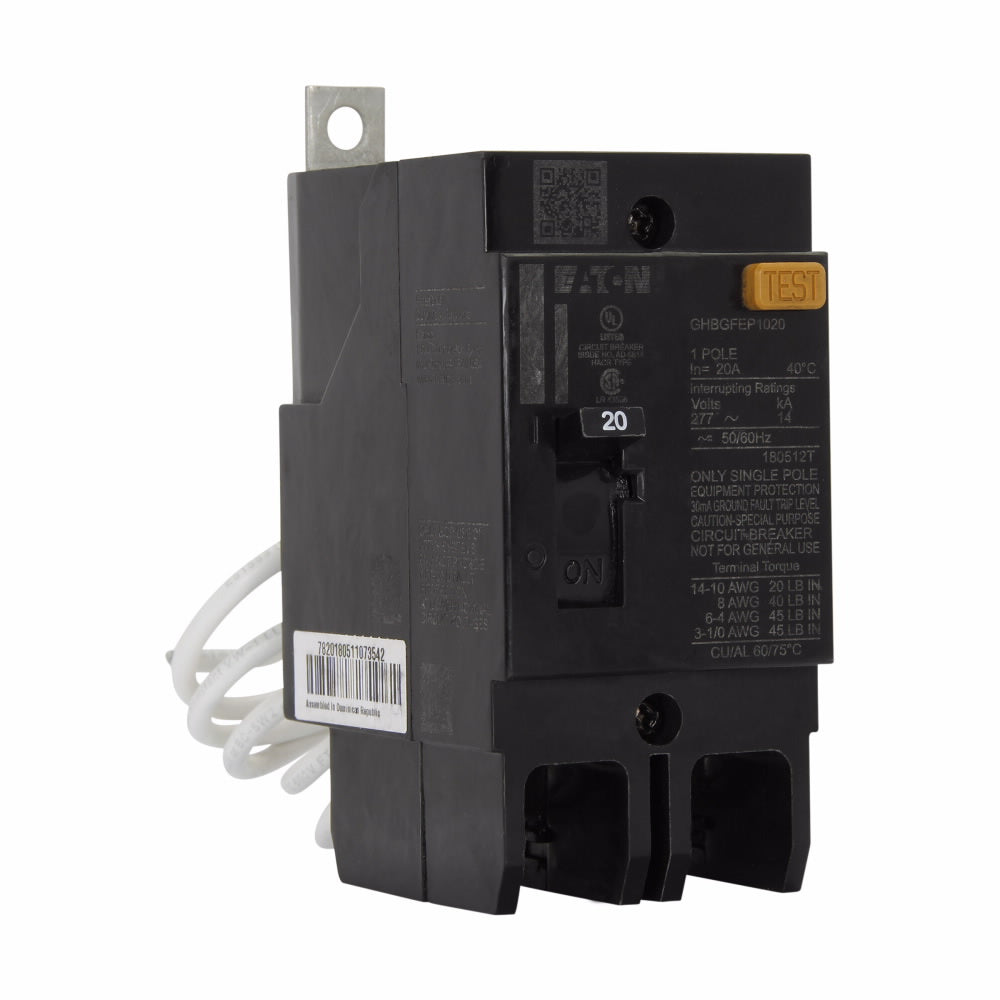

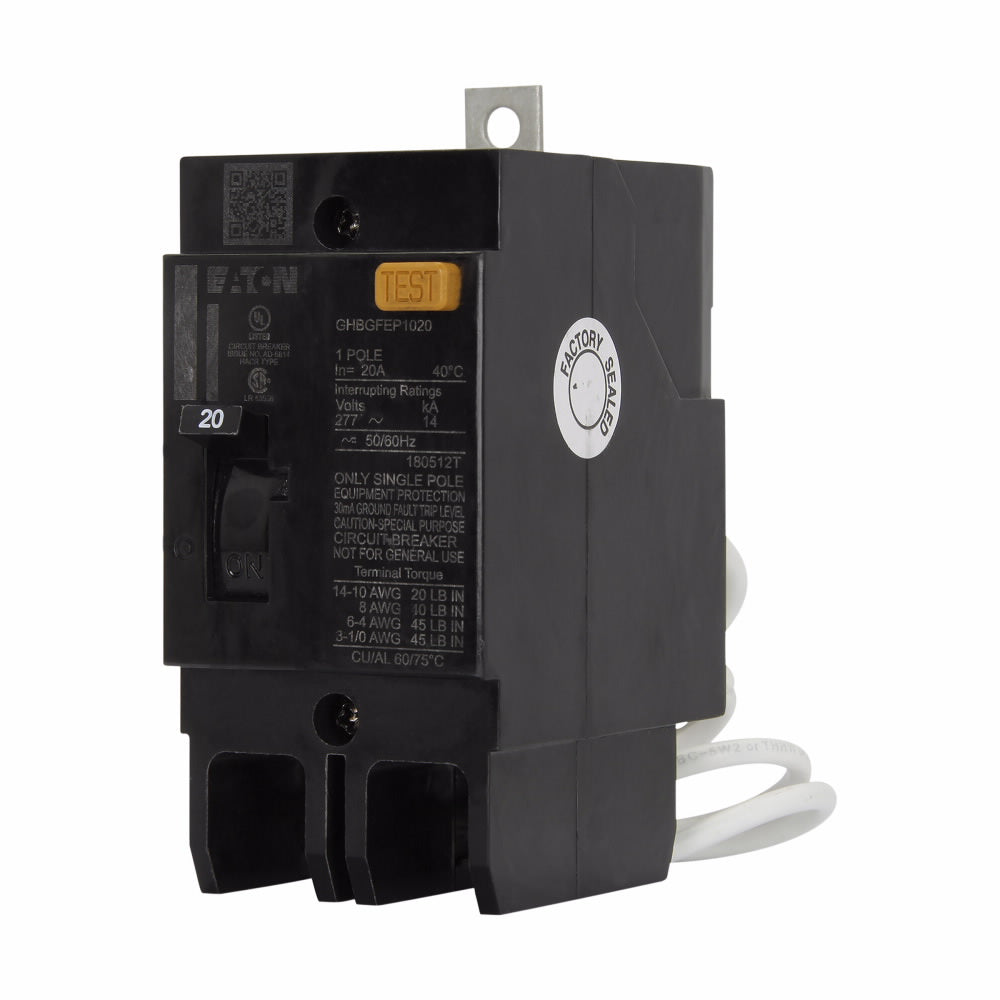

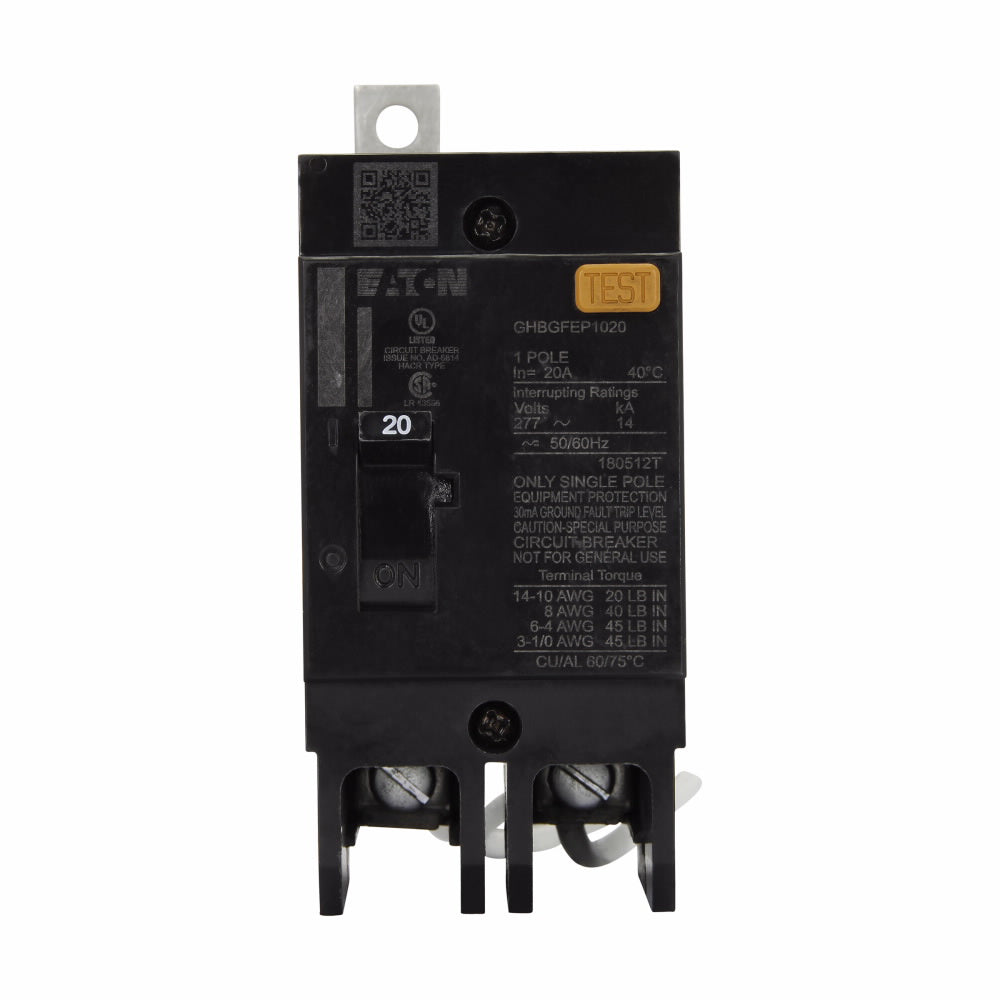

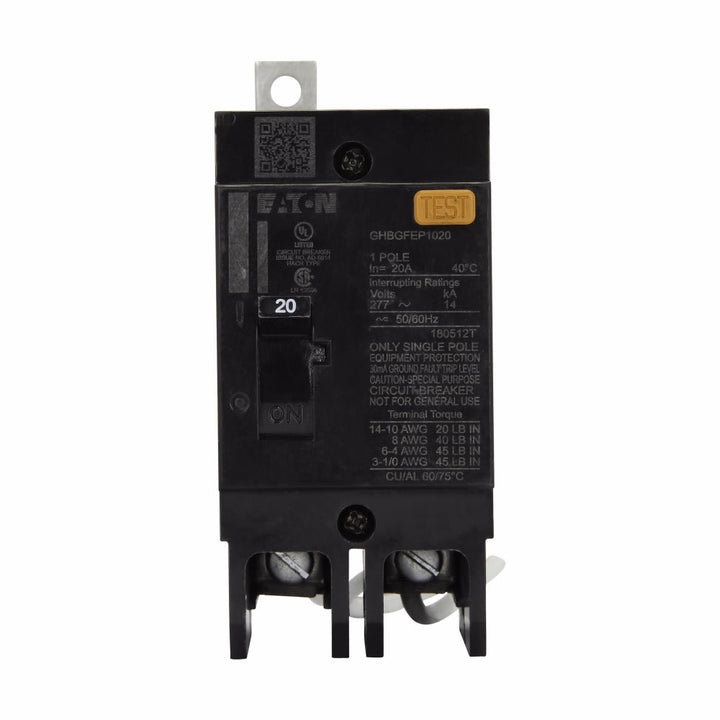

Eaton Cutler Hammer GHBGFEP1020 is a molded case circuit breaker designed for providing reliable overcurrent protection in single-phase commercial and light industrial electrical systems. It features a 20A current rating and a 277V AC voltage rating, housed within a compact 100/GHB frame measuring 2.63" x 4" x 1" (LxHxW) and weighing 1.5 lb. This thermal magnetic breaker, which complies with UL 568 standards and is CSA Certified and UL Listed, utilizes a long-time and instantaneous (LI) trip function and a 14kA interrupting rating at 277V for effective fault protection. Its bolt-on connection with screw clamp terminals accommodates 14 to 10 AWG wire, making it suitable for installation in Eaton Powerline panelboards across an operating temperature range of -2° to 70°C.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Thermal Magnetic Protection, Bolt-On Connection
  • Voltage Rating: 277V AC
  • Current Rating: 20A
  • Frame Size: 100/GHB
  • Poles: 1
  • Phase: 1
  • AIC Rating: 14kA @ 277V
  • Functions: LI (Long-Time and Instantaneous Trip)
  • Connection: Bolt-On
  • Terminal Connection: Screw Clamp
  • Wire Size: 14 to 10 AWG
  • Protection: Thermal Magnetic
  • Breaker Type: Standard
  • Panel Type: Eaton Powerline Panelboards
  • Temp Rating: -2° to 70°C (28 to 158°F)
  • Dimensions: 2.63 in (D) x 4 in (H) x 1 in (W)
  • Weight: 1.5 lb
  • Standards: UL 568
  • Certification: CSA Certified, UL Listed
  • Family: Series C


Product Identification
  • UPC: 786679067437
  • GTIN: 00786679067437
