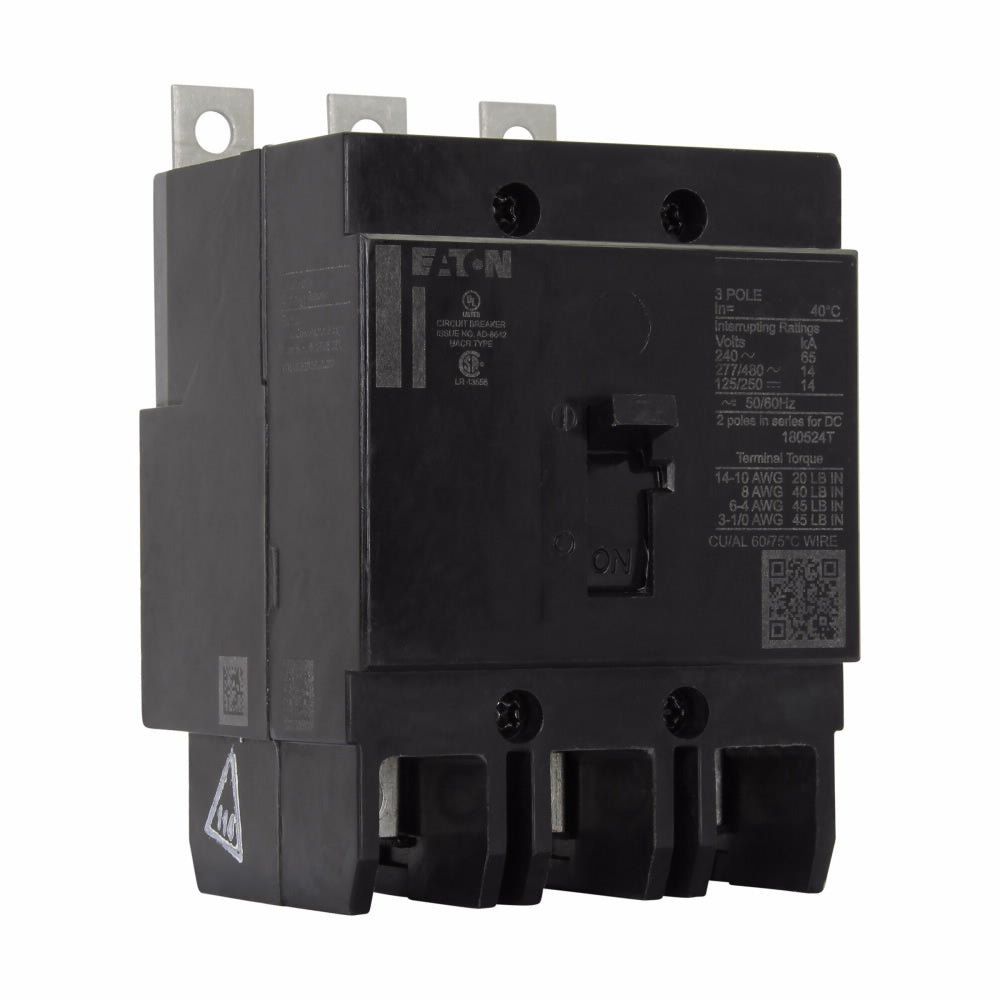

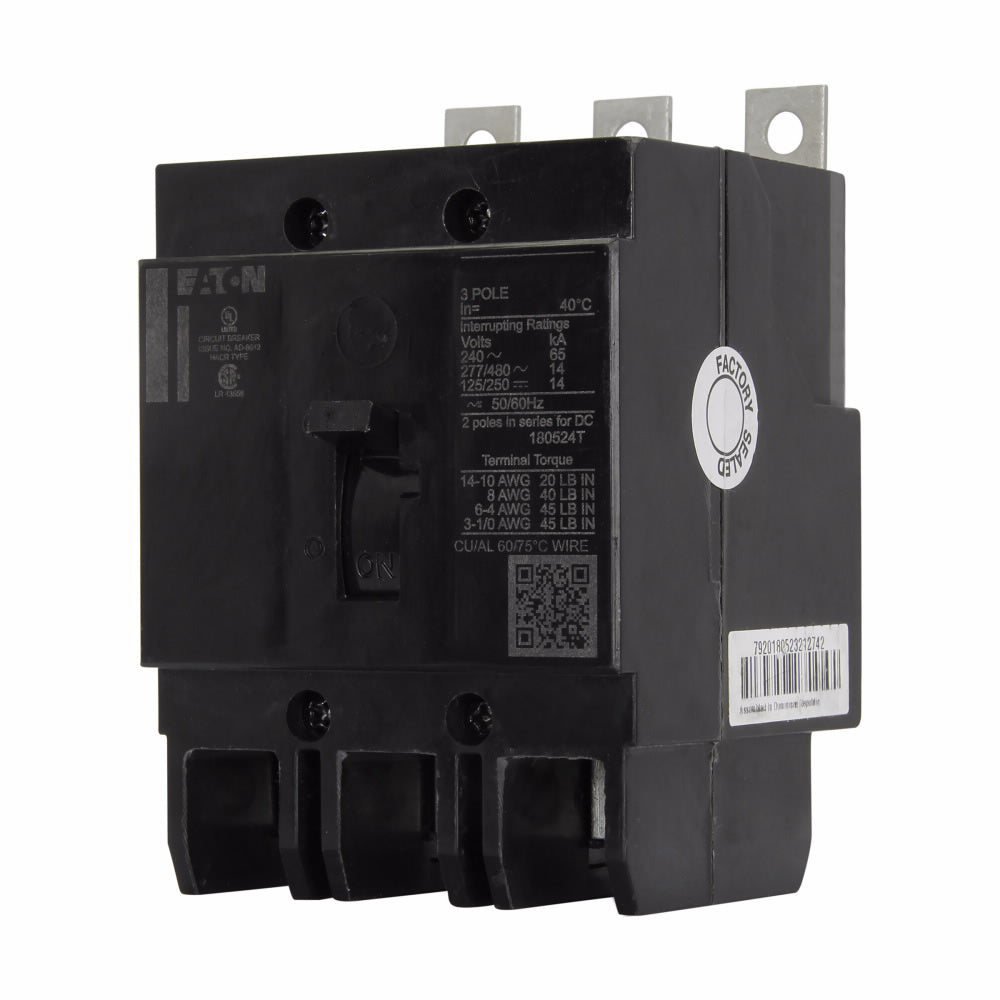

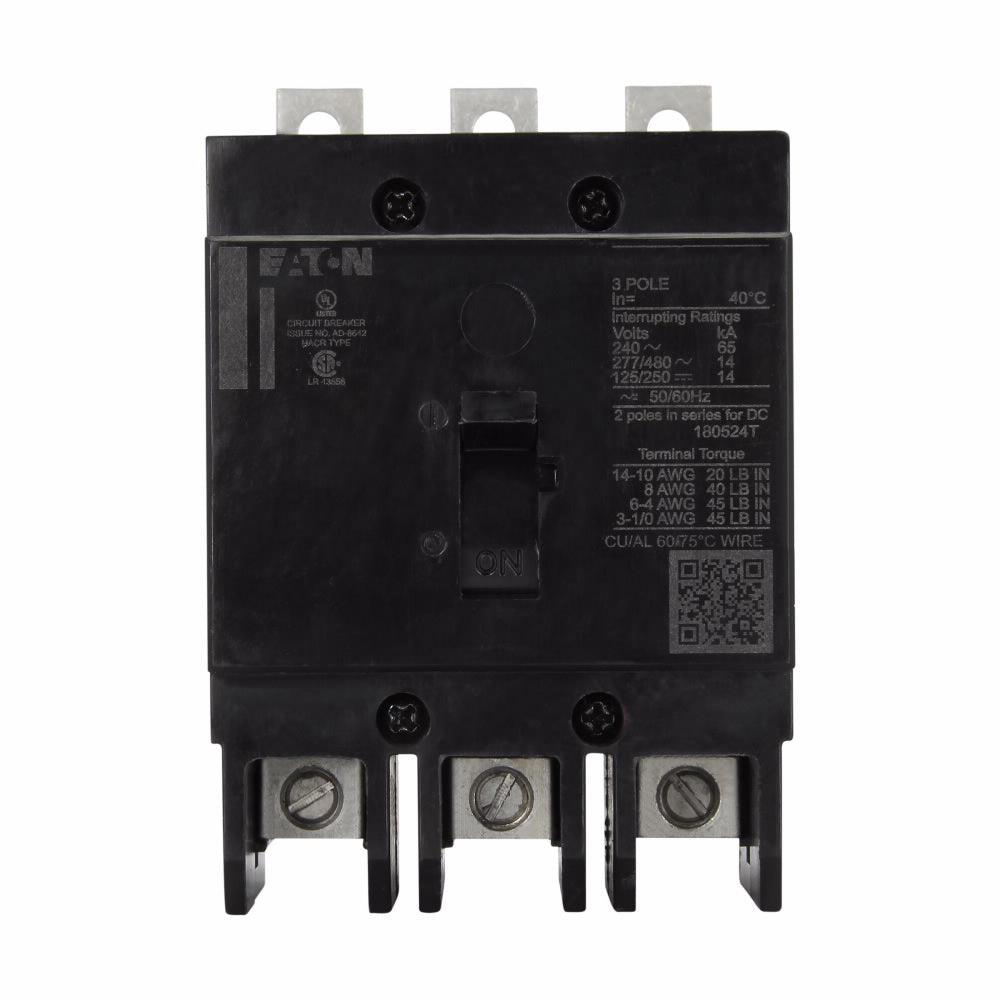

Eaton Cutler Hammer GHB3100S1 is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in three-phase industrial power distribution systems. It features a 100A current rating and a 480V AC voltage rating, housed within a compact 100/GHB frame with dimensions of 2.63" D x 4" H x 3" W and a weight of 1.8 lb. This thermal-magnetic breaker, compliant with UL 564 and certified by CSA and UL, utilizes a bolt-on, three-pole connection with screw clamp terminals and offers a 14kA interrupting capacity at 480V for Eaton Powerline panelboards. Its LI (Long-time and Instantaneous) trip functions ensure protection across a broad range of fault conditions, operating effectively within a temperature range of -2 to 70 °C (28 to 158 °F).

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Thermal-Magnetic Protection, Standard Type
  • Voltage Rating: 480V AC
  • Current Rating: 100A
  • Dimensions: 2.63 in (Depth) x 4 in (Height) x 3 in (Width)
  • Standards: UL 564
  • Certification: CSA Certified, UL Listed
  • Phase: 3
  • Poles: 3
  • Connection: Bolt-On
  • Terminal Connection: Screw Clamp
  • Frame Size: 100/GHB
  • AIC Rating: 14kA @ 480V
  • Functions: LI (Long-Time and Instantaneous Trip)
  • Protection: Thermal Magnetic
  • Panel Type: Eaton Powerline Panelboards
  • Breaker Type: Standard
  • Temp Rating: -2 to 70 °C (28 to 158 °F)
  • Weight: 1.8 lb
  • Family: Series C
  • Country of Origin: Dominican Republic


Product Identification
  • UPC: 786679194348
  • GTIN: 00786679194348
