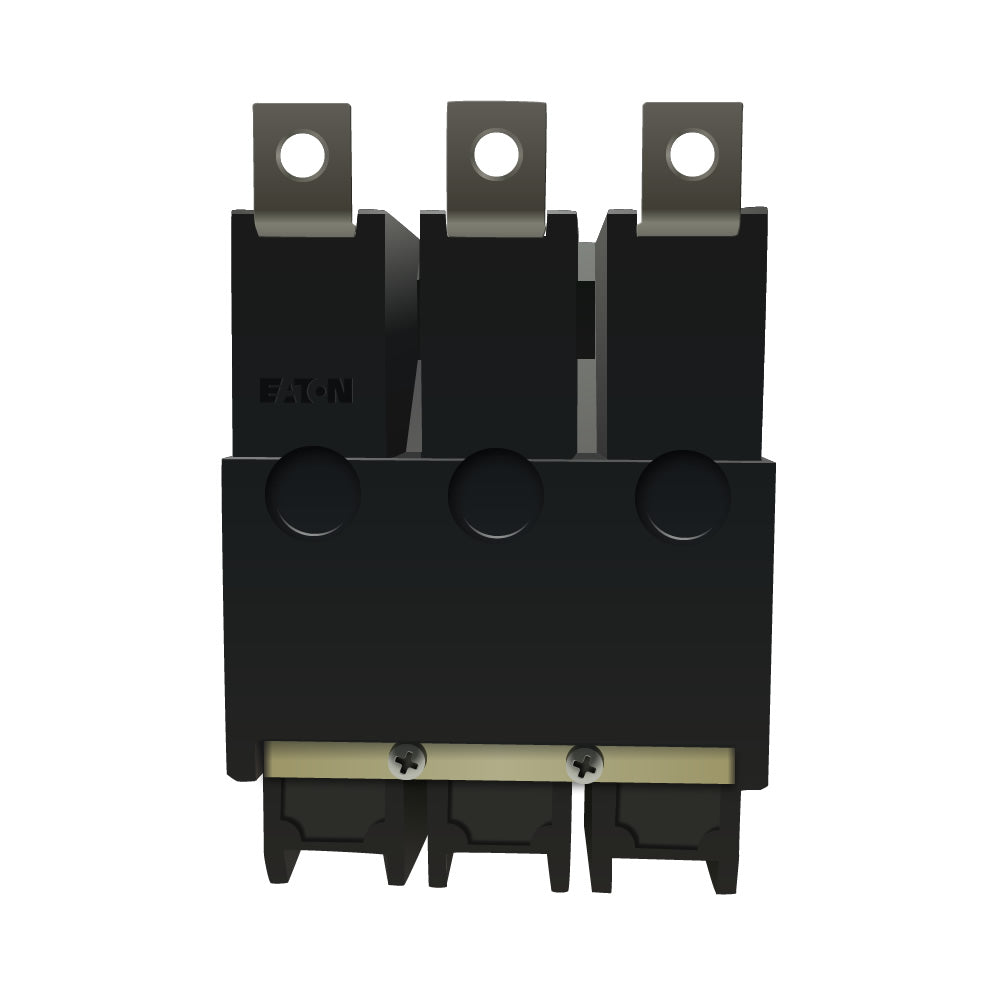

Eaton GHB3100 - Molded Case Circuit Breaker 100A 480V 3P (14kA AIC)
Eaton GHB3100 - Molded Case Circuit Breaker 100A 480V 3P (14kA AIC)
Eaton GHB3100 - Molded Case Circuit Breaker 100A 480V 3P (14kA AIC)
Eaton GHB3100 - Molded Case Circuit Breaker 100A 480V 3P (14kA AIC)

Eaton GHB3100 - Molded Case Circuit Breaker 100A 480V 3P (14kA AIC)

Cutler Hammer
Price
Save $1,113.68
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Eaton Cutler Hammer GHB3100 is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in three-phase industrial power distribution systems. It features a 100A current rating and a 480V AC voltage rating, housed within a compact 100/GHB frame measuring 2.63 in x 4 in x 3 in and weighing 1.75 lb. The breaker utilizes a thermal-magnetic trip unit for combined long-time and instantaneous (LI) protection, is UL 562 listed and CSA certified, and is engineered for bolt-on connection within Eaton Powerline panelboards. Its 14kA interrupting rating at 480V and screw clamp terminals accommodating 10 to 1/0 AWG wire make it suitable for a range of commercial and industrial applications.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Thermal-Magnetic Protection, Bolt-On Connection
  • Voltage Rating: 480V AC
  • Current Rating: 100A
  • Frame Size: 100/GHB
  • Poles: 3
  • AIC Rating: 14kA @ 480V
  • Phase: 3
  • Trip Functions: LI (Long-Time & Instantaneous)
  • Connection: Bolt-On, Screw Clamp Terminal
  • Wire Size: 10 to 1/0 AWG
  • Dimensions: 2.63 in (D) x 4 in (H) x 3 in (W)
  • Weight: 1.75 lb
  • Temp Rating: -2 to 70 °C (28 to 158 °F)
  • Standards & Certification: UL 562, UL Listed, CSA Certified
  • Panel Type: Eaton Powerline Panelboards
  • Breaker Type: Standard
  • Country of Origin: Dominican Republic


Product Identification
  • UPC: 786679911334
  • GTIN: 00786679911334
