Eaton GHB3080 - Molded Case Circuit Breaker 80A 480V 3P (14kA AIC)
Eaton GHB3080 - Molded Case Circuit Breaker 80A 480V 3P (14kA AIC)
Eaton GHB3080 - Molded Case Circuit Breaker 80A 480V 3P (14kA AIC)
Eaton GHB3080 - Molded Case Circuit Breaker 80A 480V 3P (14kA AIC)

Eaton GHB3080 - Molded Case Circuit Breaker 80A 480V 3P (14kA AIC)

Cutler Hammer
Price
Save $1,108.79
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price

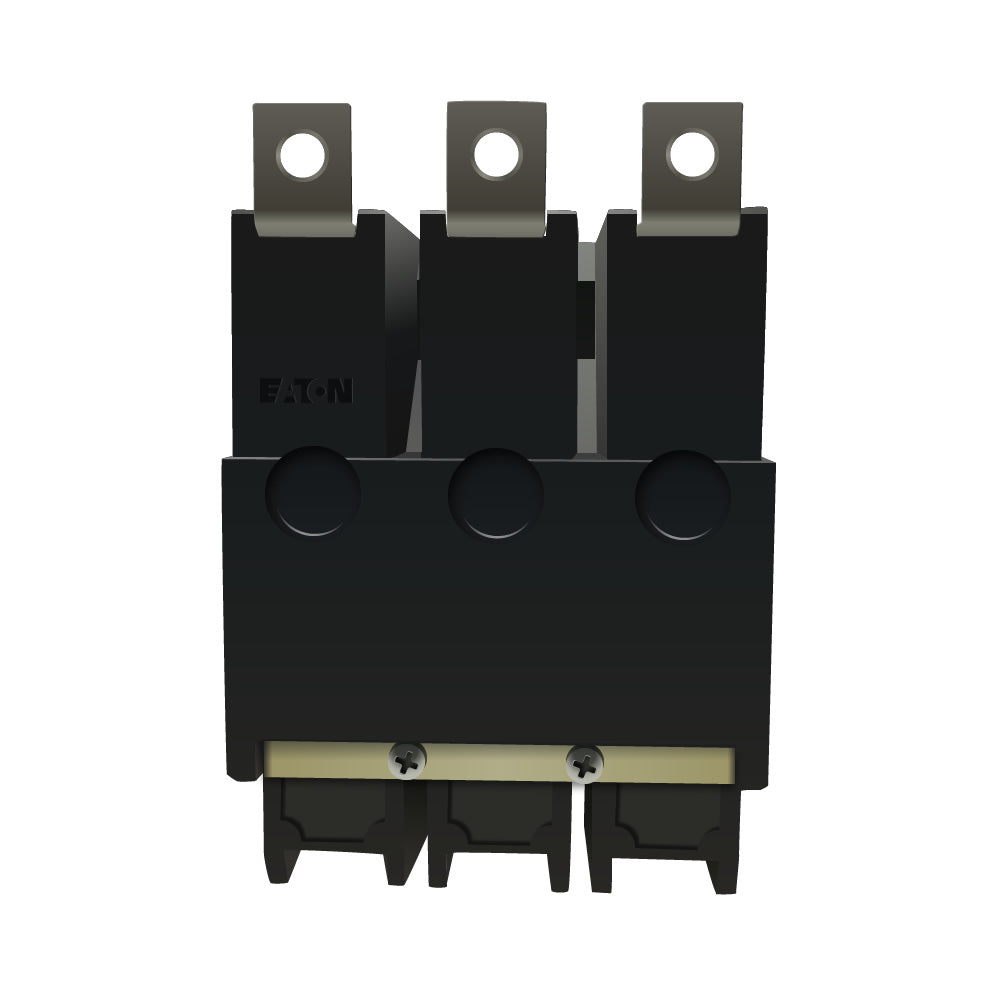

Eaton Cutler Hammer GHB3080 is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in three-phase industrial power distribution systems. It features an 80A current rating and a 480V AC voltage rating, housed within a compact, durable frame measuring 2.63" x 4" x 3" (LxHxW) and weighing 1.7 lb. This thermal-magnetic breaker utilizes a long-time and instantaneous (LI) trip function with a 14kA interrupting rating at 480V and is constructed for bolt-on connection to Eaton Powerline panelboards. It complies with UL 557 standards and is CSA Certified and UL Listed for safety, operating effectively within a temperature range of -2 to 70 °C (28 to 158 °F). Typical applications include protecting feeders and branch circuits in commercial and industrial facilities, compatible with wire sizes from 10 to 1/0 AWG using its screw clamp terminals.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Thermal-Magnetic Protection, Bolt-On Connection
  • Voltage Rating: 480V AC
  • Current Rating: 80A
  • Frame Size: 100/GHB
  • Poles: 3
  • AIC Rating: 14kA @ 480V AC
  • Trip Type: LI (Long-time and Instantaneous)
  • Connection: Bolt-On, Screw Clamp Terminal
  • Wire Size: 10 AWG to 1/0 AWG
  • Dimensions: 2.63 in (D) x 4 in (H) x 3 in (W)
  • Weight: 1.7 lb
  • Operating Temperature: -2°C to 70°C (28°F to 158°F)
  • Standards & Certification: UL 557, CSA Certified, UL Listed
  • Panel Compatibility: Eaton Powerline Panelboards
  • Phase: 3


Product Identification
  • UPC: 786679762806
  • GTIN: 00786679762806
