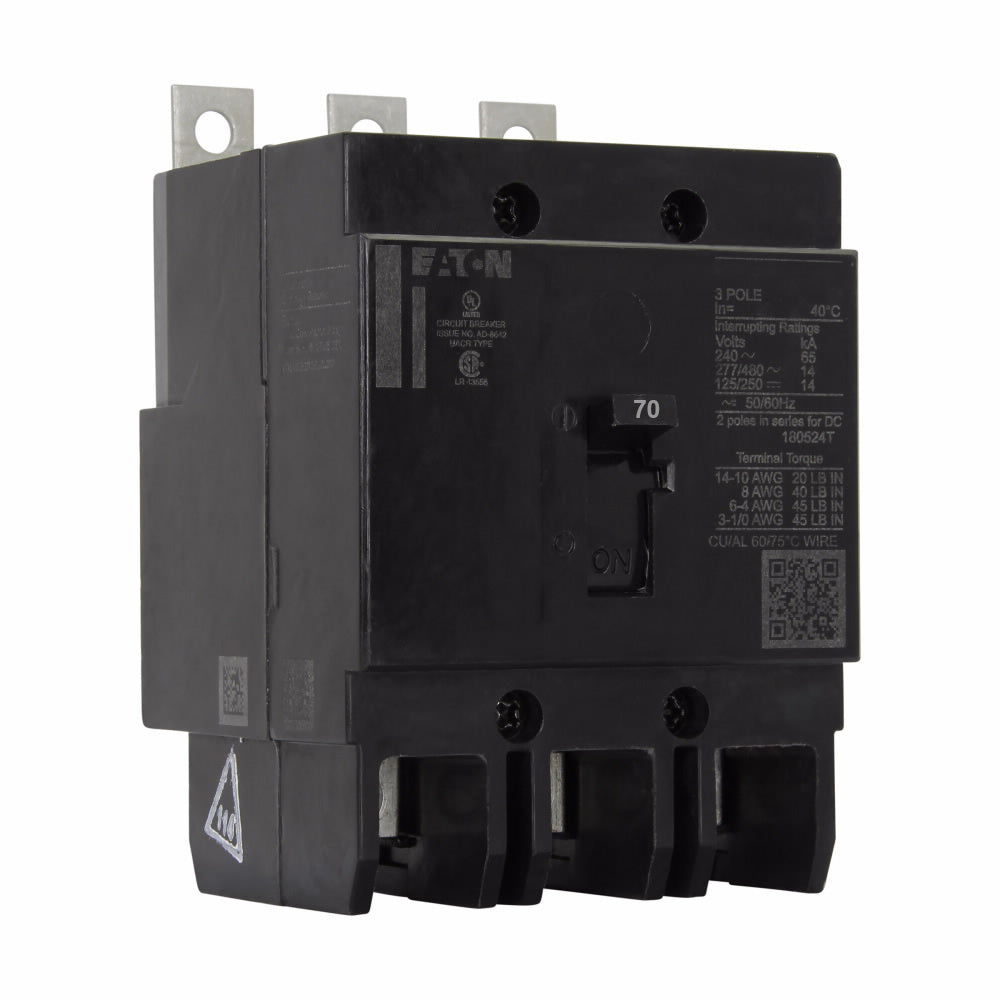

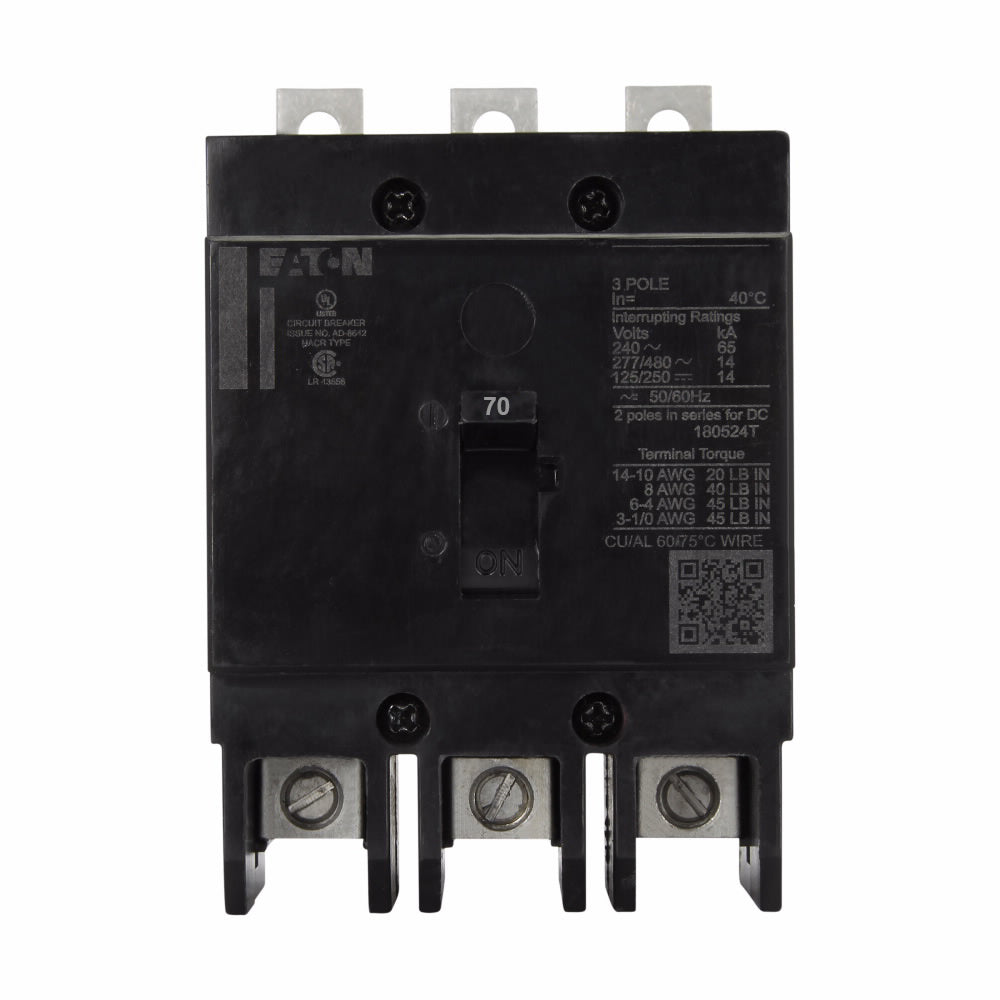

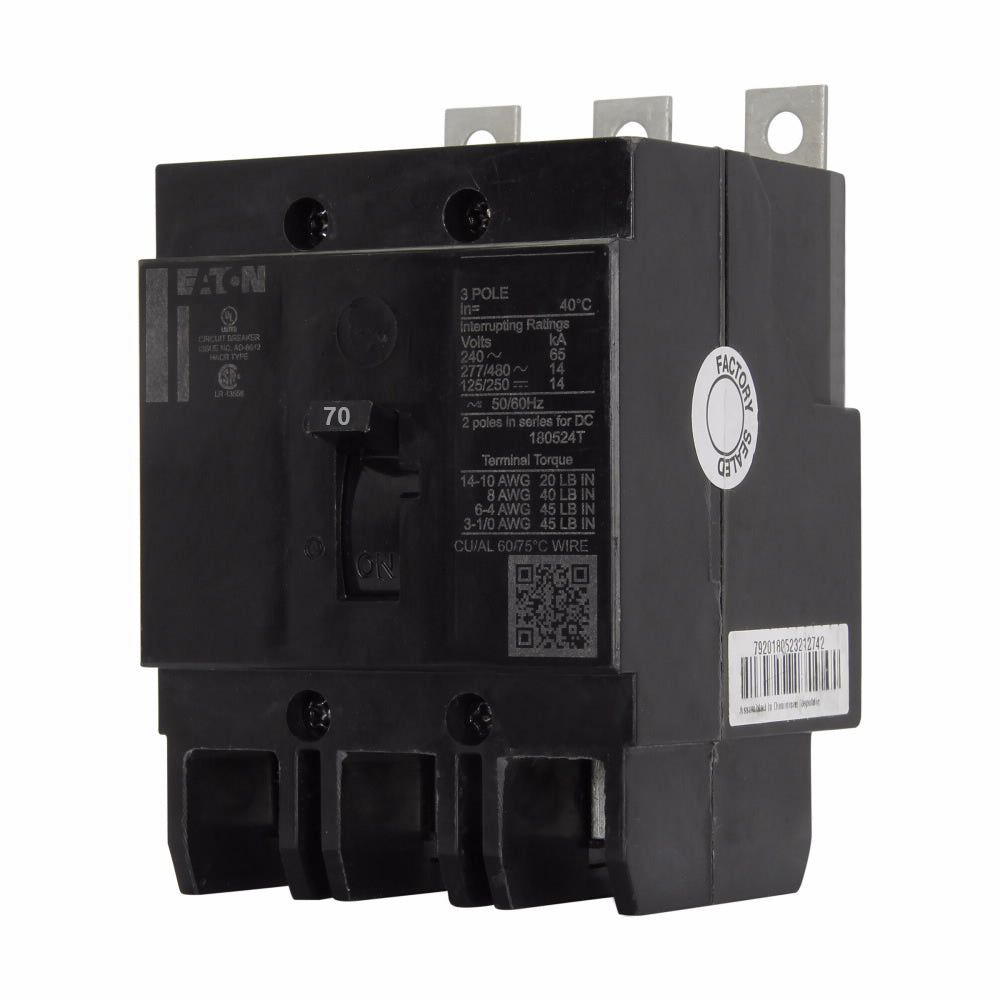

Eaton Cutler-Hammer GHB3070S1 is a molded case circuit breaker designed for providing reliable overcurrent protection in three-phase industrial power distribution systems. It features a 70A current rating and a 480V AC voltage rating, housed within a compact 100/GHB frame measuring 2.63" x 4" x 3" (LxHxW) and weighing 1.8 lb. The breaker utilizes a thermal-magnetic trip unit for combined long-time and instantaneous (LI) protection, offers a 14kA interrupting capacity at 480V, and is constructed for bolt-on connection with screw clamp terminals. It complies with UL 556 standards and is certified by both UL and CSA for safe operation in temperatures from -2°C to 70°C, making it suitable for integration into Eaton Powerline panelboards and similar commercial and industrial applications.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Thermal-Magnetic Protection, Bolt-On Connection
  • Voltage Rating: 480V AC
  • Current Rating: 70A
  • Frame Size: 100/GHB
  • Poles: 3
  • AIC Rating: 14kA @ 480V AC
  • Phase: 3
  • Trip Functions: LI (Long-Time & Instantaneous)
  • Connection: Bolt-On, Screw Clamp Terminals
  • Standards & Certification: UL 556, UL Listed, CSA Certified
  • Operating Temperature: -2°C to 70°C (28°F to 158°F)
  • Dimensions (L x H x W): 2.63 in x 4 in x 3 in
  • Weight: 1.8 lb
  • Compatible Panel Type: Eaton Powerline Panelboards
  • Breaker Type: Standard
  • Family: Series C
  • Country of Origin: Dominican Republic


Product Identification
  • UPC: 786679029824
  • GTIN: 00786679029824
