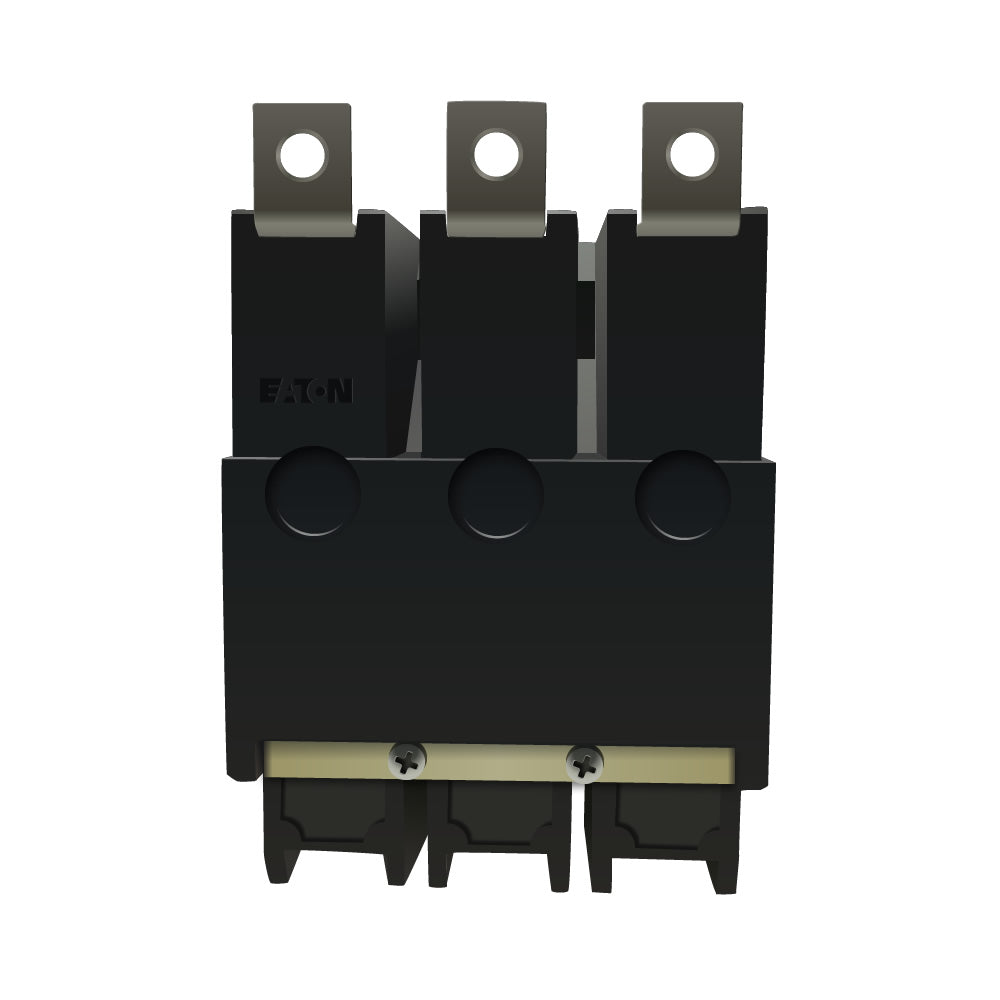

Cutler Hammer GHB3070 - Molded Case Circuit Breaker 70A 480V 3P
Cutler Hammer GHB3070 - Molded Case Circuit Breaker 70A 480V 3P
Cutler Hammer GHB3070 - Molded Case Circuit Breaker 70A 480V 3P
Cutler Hammer GHB3070 - Molded Case Circuit Breaker 70A 480V 3P

Cutler Hammer GHB3070 - Molded Case Circuit Breaker 70A 480V 3P

Cutler Hammer
Price
Save $1,116.18
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Cutler Hammer GHB3070 is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in three-phase industrial power distribution systems. It features a 70A current rating and a 480V AC voltage rating, housed within a compact 100/GHB frame measuring 2.63 in x 4 in x 3 in (L x H x W) and weighing 1.75 lb. This thermal-magnetic breaker complies with UL 555 standards and is CSA Certified and UL Listed, ensuring safe operation within a temperature range of -2 to 70 °C. Its bolt-on, three-pole configuration with screw clamp terminals for 10 to 1/0 AWG wire makes it suitable for installation in Eaton Powerline panelboards and similar industrial applications.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Thermal-Magnetic Protection, Series C Family
  • Voltage Rating: 480V AC
  • Current Rating: 70A
  • Frame Size: 100/GHB
  • Poles: 3
  • AIC Rating: 14kA @ 480V
  • Connection: Bolt-On
  • Terminal Connection: Screw Clamp
  • Wire Size: 10 to 1/0 AWG
  • Trip Functions: LI (Long-Time and Instantaneous)
  • Phase: 3
  • Dimensions: 2.63 in (Depth) x 4 in (Height) x 3 in (Width)
  • Weight: 1.75 lb
  • Operating Temperature: -2 to 70 °C (28 to 158 °F)
  • Standards & Certification: UL 555, CSA Certified, UL Listed
  • Panel Type: Compatible with Eaton Powerline Panelboards
  • Country of Origin: Dominican Republic


Product Identification
  • UPC: 786679911310
  • GTIN: 00786679911310
