Cutler Hammer GHB3050 - Molded Case Circuit Breaker 50A 480V 3P
Cutler Hammer GHB3050 - Molded Case Circuit Breaker 50A 480V 3P
Cutler Hammer GHB3050 - Molded Case Circuit Breaker 50A 480V 3P
Cutler Hammer GHB3050 - Molded Case Circuit Breaker 50A 480V 3P

Cutler Hammer GHB3050 - Molded Case Circuit Breaker 50A 480V 3P

Cutler Hammer
Price
Save $772.53
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price

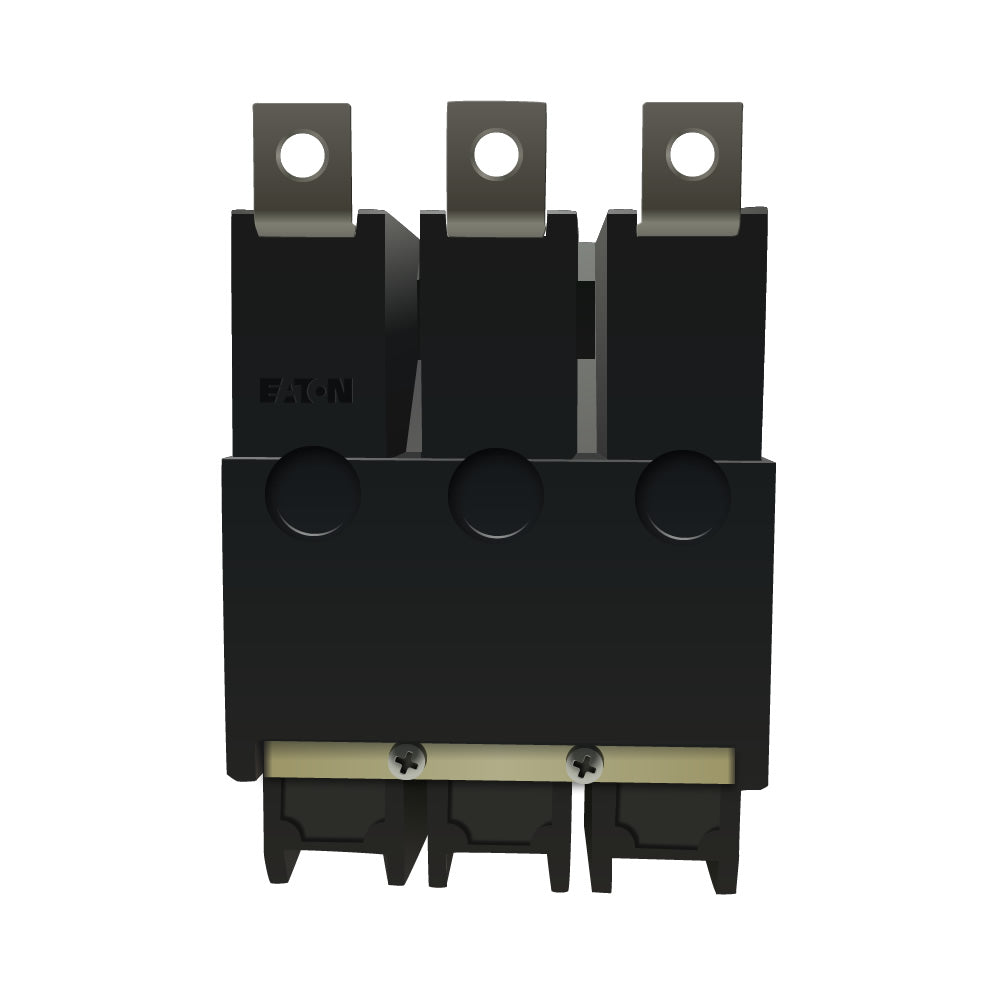

Cutler Hammer GHB3050 is a molded case circuit breaker designed for providing reliable overcurrent protection in three-phase industrial power distribution systems. It features a 50A current rating and a 480V AC voltage rating, housed within a compact 100/GHB frame measuring 2.63" D x 4" H x 3" W and weighing 1.75 lb. This thermal magnetic breaker utilizes a long-time and instantaneous (LI) trip function and offers 14kA interrupting capacity at 480V, ensuring compliance with UL 548 standards and carrying both UL Listed and CSA certifications. Its bolt-on, three-pole configuration with screw clamp terminals accommodates wire sizes from 10 to 1/0 AWG, making it suitable for installation in Eaton Powerline panelboards across various industrial and commercial applications.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Thermal Magnetic Protection, Bolt-On Connection
  • Voltage Rating: 480V AC
  • Current Rating: 50A
  • Frame Size: 100/GHB
  • Poles: 3
  • AIC Rating: 14kA @ 480V
  • Trip Type: LI (Long-time and Instantaneous)
  • Connection: Bolt-On, Screw Clamp Terminal
  • Wire Size: 10 to 1/0 AWG
  • Phase: 3
  • Dimensions: 2.63 in (D) x 4 in (H) x 3 in (W)
  • Weight: 1.75 lb
  • Operating Temperature: -2°C to 70°C (28°F to 158°F)
  • Standards & Certification: UL 548, UL Listed, CSA Certified
  • Panel Type: Compatible with Eaton Powerline Panelboards
  • Breaker Type: Standard
  • Family: Series C
  • Country of Origin: Dominican Republic


Product Identification
  • UPC: 786679911297
  • GTIN: 00786679911297
