Cutler Hammer
Price
Save $1,571.32
/
Condition
  • Low stock - 5 items left
  • Backordered, shipping soon
Call for Price

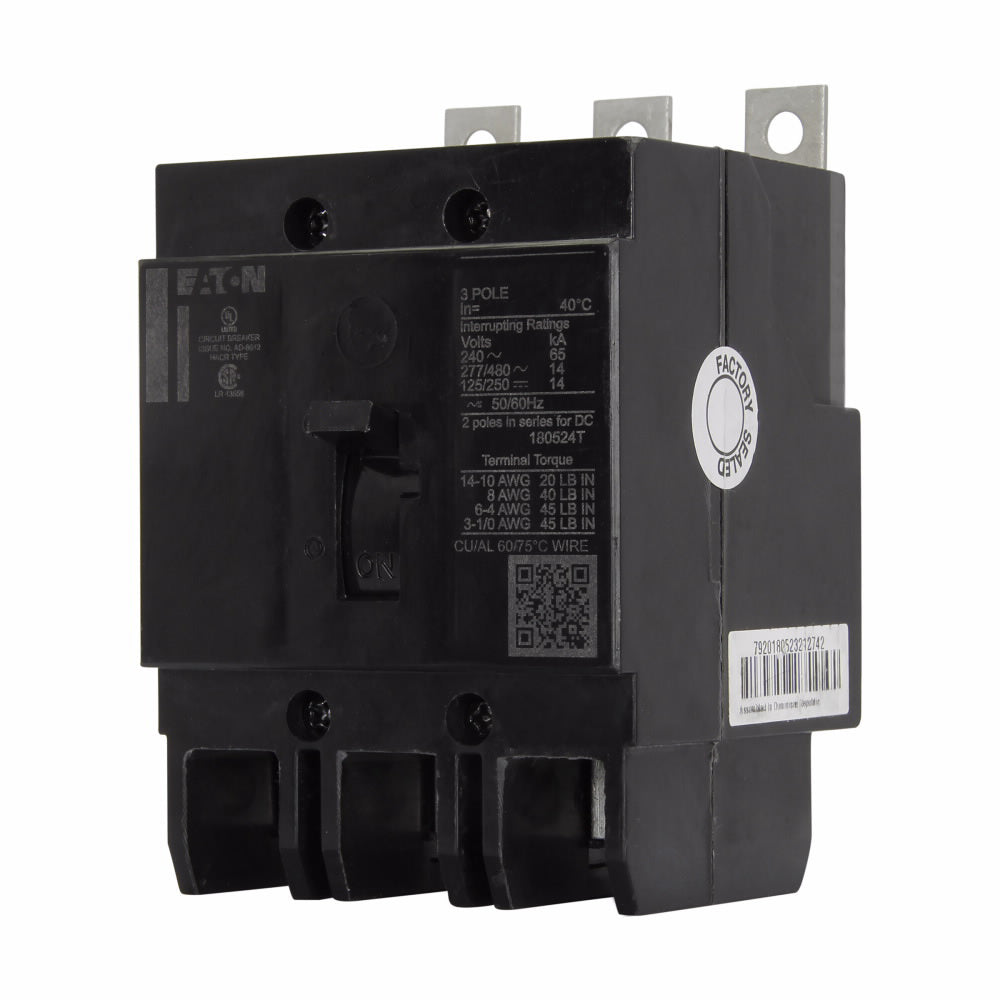

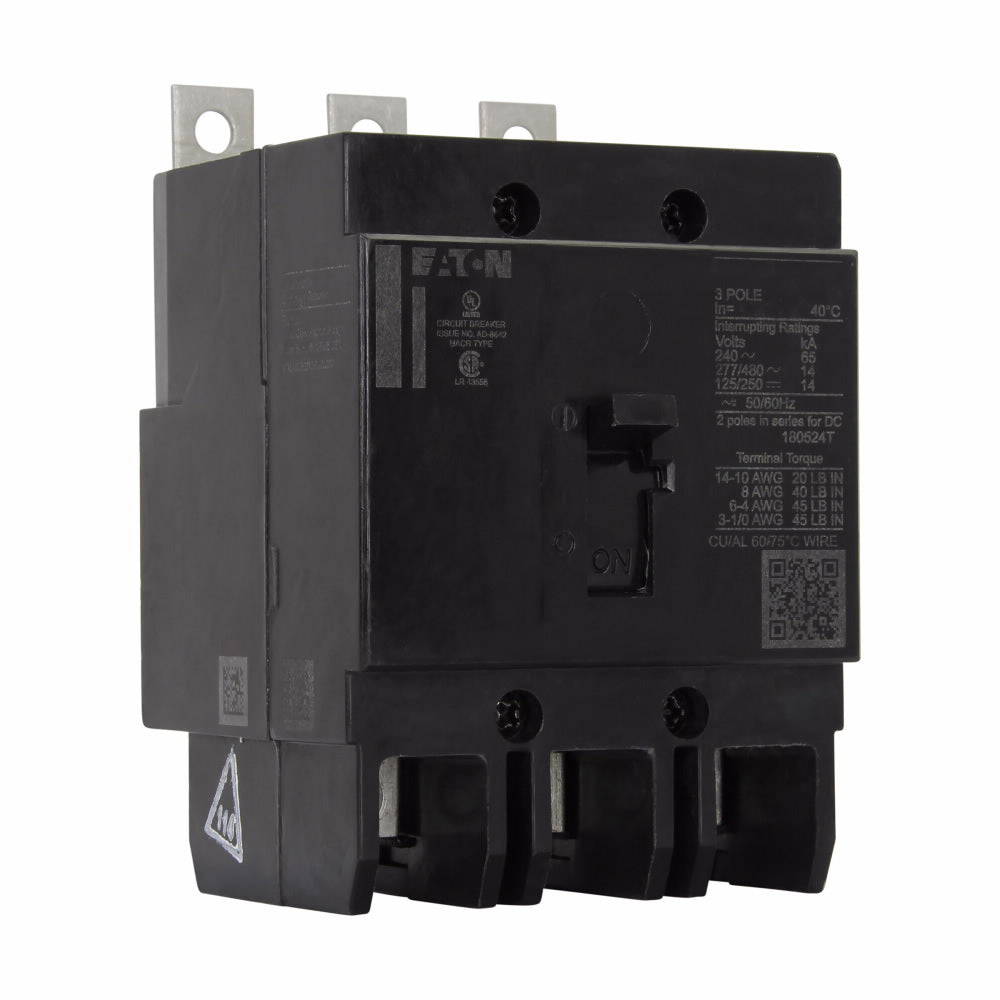

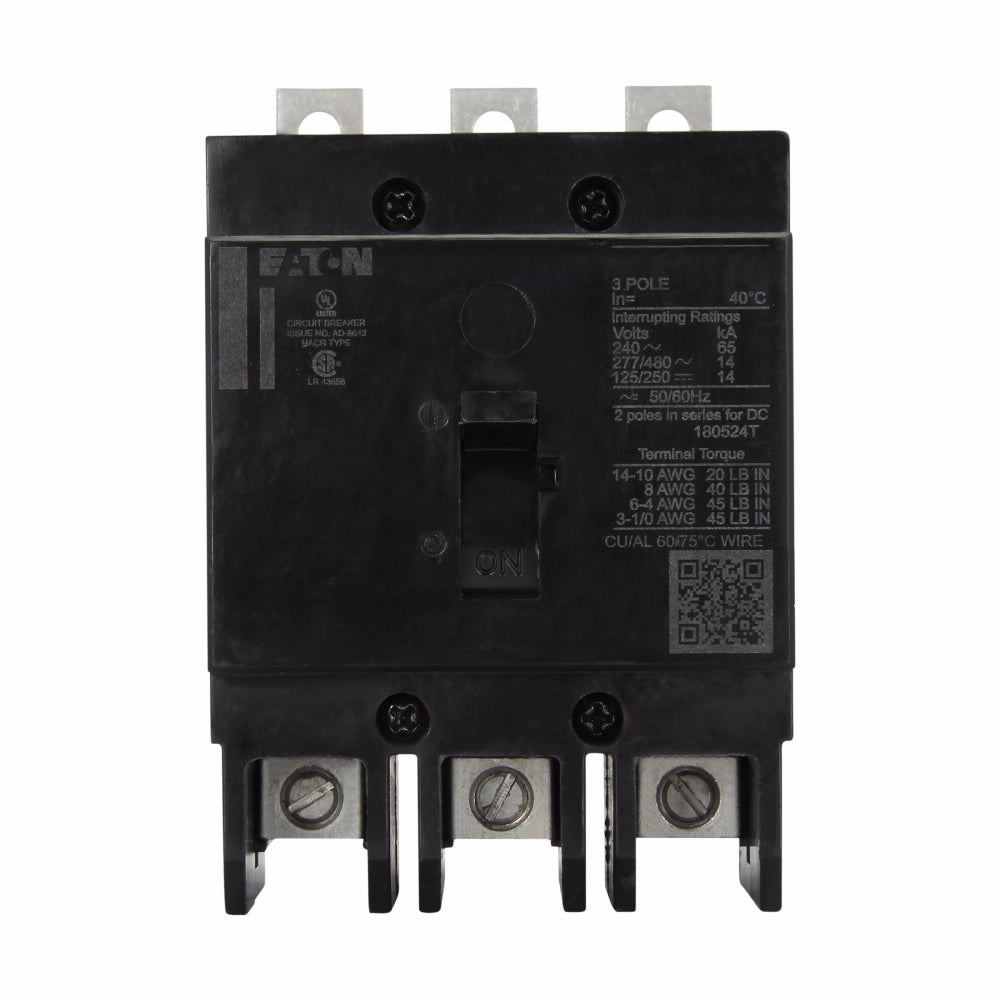

Eaton Cutler-Hammer GHB3030S1 is a molded case circuit breaker designed for providing reliable overcurrent protection in three-phase industrial power distribution systems. It features a 30A current rating and a 480V AC voltage rating, housed within a compact 100/GHB frame measuring 2.63" x 4" x 3" (LxHxW) and weighing 1.75 lb. This thermal-magnetic breaker utilizes a long-time and instantaneous (LI) trip function with a 14kA interrupting rating at 480V and is constructed for bolt-on connection with screw clamp terminals. It complies with UL 535 standards and carries both UL Listed and CSA certifications, ensuring suitability for use in Eaton Powerline panelboards and similar industrial environments operating within a temperature range of -2 to 70 °C.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Thermal-Magnetic Protection, LI (Long-time & Instantaneous) Trip
  • Voltage Rating: 480V AC
  • Current Rating: 30A
  • Frame Size: 100/GHB
  • Poles: 3
  • Phase: 3
  • AIC Rating: 14kA @ 480V
  • Connection: Bolt-On
  • Terminal Connection: Screw Clamp
  • Protection: Thermal Magnetic
  • Breaker Type: Standard
  • Panel Type: Eaton Powerline Panelboards
  • Standards: UL 535
  • Certification: CSA Certified, UL Listed
  • Temp Rating: -2 to 70 °C (28 to 158 °F)
  • Dimensions: 2.63 in (Depth) x 4 in (Height) x 3 in (Width)
  • Weight: 1.75 lb
  • Family: Series C
  • Country of Origin: Dominican Republic


Product Identification
  • UPC: 786679010303
  • GTIN: 00786679010303
