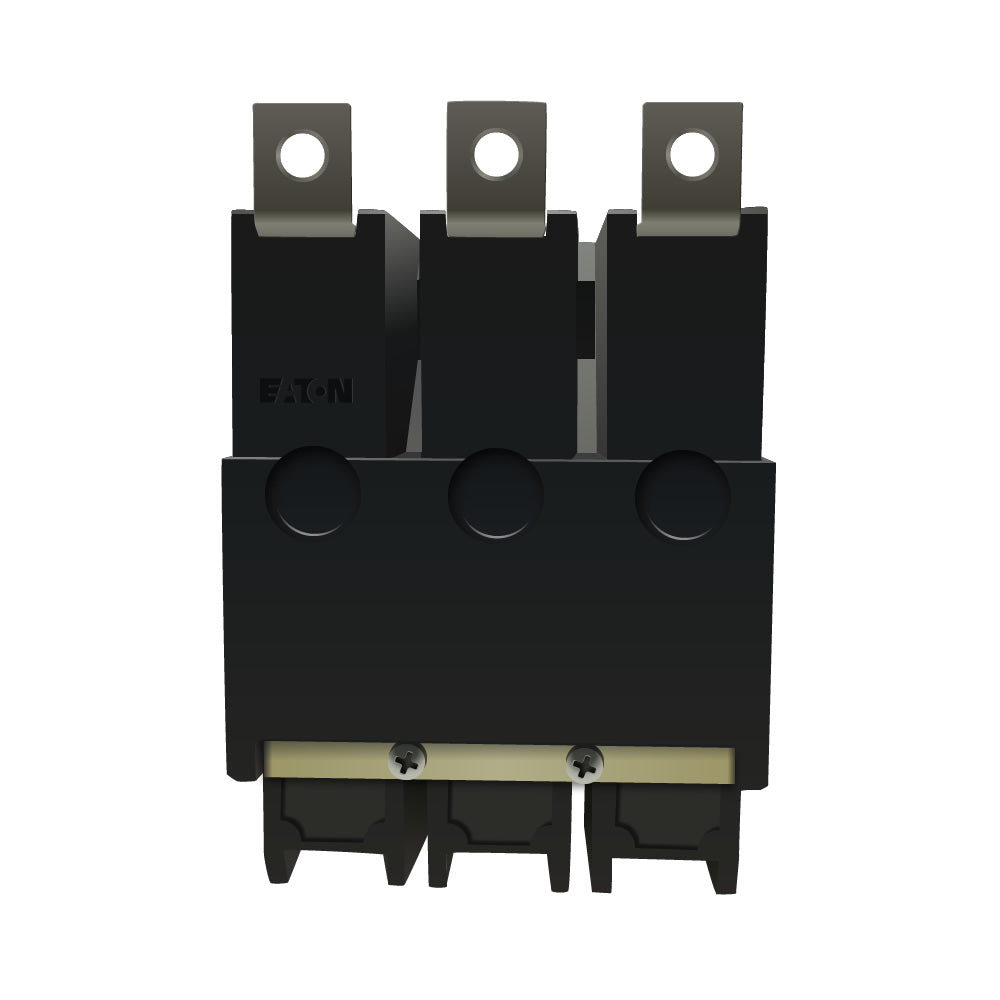

Eaton GHB3030 - 30A 3-Pole Circuit Breaker (480V, 14kA)
Eaton GHB3030 - 30A 3-Pole Circuit Breaker (480V, 14kA)
Eaton GHB3030 - 30A 3-Pole Circuit Breaker (480V, 14kA)
Eaton GHB3030 - 30A 3-Pole Circuit Breaker (480V, 14kA)

Eaton GHB3030 - 30A 3-Pole Circuit Breaker (480V, 14kA)

Cutler Hammer
Price
Save $753.25
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Eaton Cutler Hammer GHB3030 is a molded case circuit breaker designed for providing reliable overcurrent protection in three-phase industrial power distribution systems. It features a 30A current rating and a 480V AC voltage rating, housed within a compact 100/GHB frame measuring 2.63" x 4" x 3" and weighing 1.75 lb. The breaker utilizes a thermal-magnetic trip unit for both long-time and instantaneous (LI) protection, is UL 533 listed and CSA certified, and is constructed for bolt-on connection to Eaton Powerline panelboards with screw clamp terminals accepting 10 to 1/0 AWG wire. Its 14kA interrupting rating at 480V and operational temperature range of -2 to 70 °C make it suitable for a wide array of commercial and industrial applications requiring robust circuit protection.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Thermal-Magnetic Protection, Standard
  • Voltage Rating: 480V AC
  • Current Rating: 30A
  • Dimensions: 2.63 in (D) x 4 in (H) x 3 in (W)
  • Weight: 1.75 lb
  • Standards: UL 533
  • Certification: CSA Certified, UL Listed
  • Applications: Industrial Power Distribution, Panelboard Protection
  • Switch Type: Circuit Breaker
  • Configuration: Bolt-On
  • Temp Rating: -2 to 70 °C (28 to 158 °F)
  • Phase: 3
  • AIC Rating: 14kA @ 480V
  • Connection: Bolt-On
  • Poles: 3
  • Protection: Thermal Magnetic
  • Functions: Long-Time and Instantaneous Trip (LI)
  • Frame Size: 100/GHB
  • Panel Type: Eaton Powerline Panelboards
  • Breaker Type: Standard
  • Wire Size: 10 to 1/0 AWG
  • Terminal Connection: Screw Clamp
  • Family: Series C
  • Country of Origin: Dominican Republic


Product Identification
  • UPC: 786679911273
  • GTIN: 00786679911273
