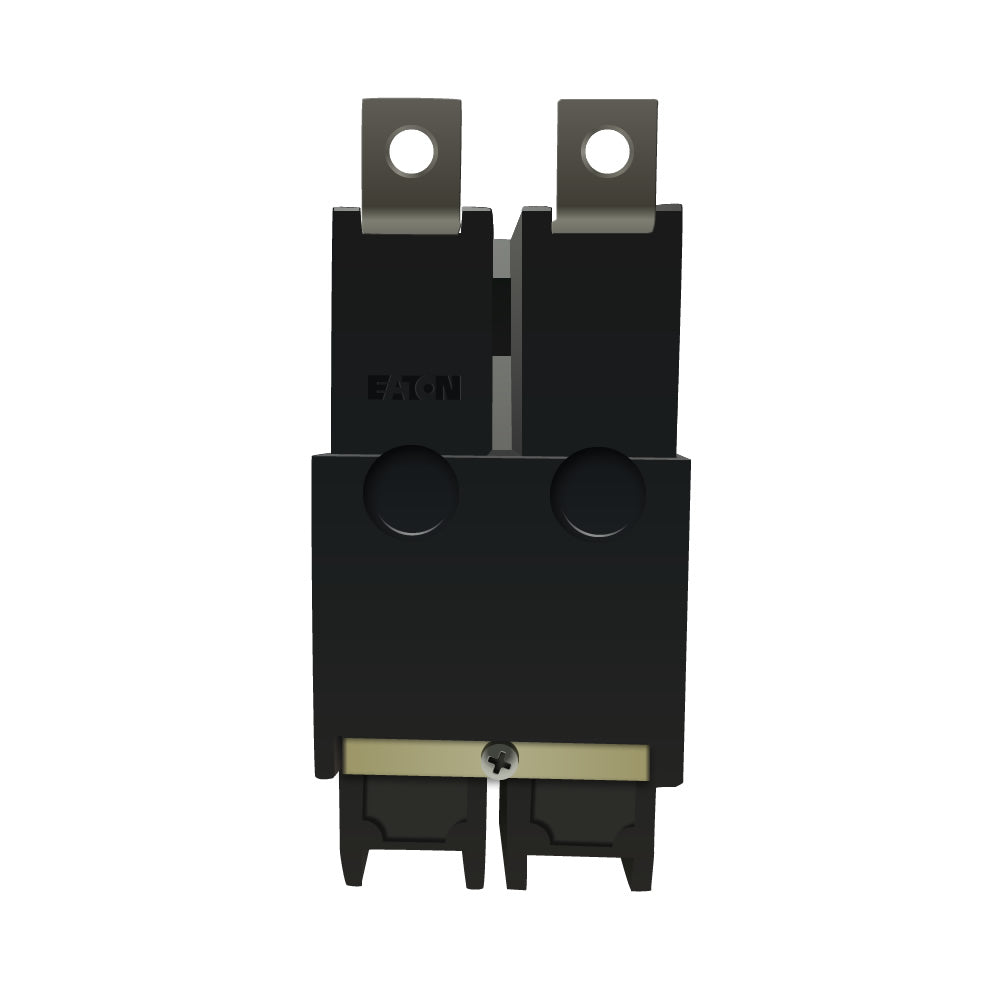

Eaton Cutler-Hammer GHB2090 is a molded case circuit breaker designed for providing reliable overcurrent protection in industrial power distribution systems. It features a 90A current rating and a 480V AC voltage rating, housed within a compact 100/GHB frame measuring 2.63 in (D) x 4 in (H) x 2 in (W) and weighing 1.15 lb. The breaker utilizes a thermal-magnetic trip mechanism for both long-time and instantaneous (LI) protection, is UL 520 listed and CSA certified, and is engineered for bolt-on connection in Eaton Powerline panelboards for commercial and industrial applications.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Thermal-Magnetic Protection, Bolt-On Connection
  • Voltage Rating: 480V AC
  • Current Rating: 90A
  • Frame Size: 100/GHB
  • Poles: 2
  • AIC Rating: 14kA @ 480V
  • Phase: 1
  • Trip Functions: LI (Long-Time and Instantaneous)
  • Connection: Bolt-On, Screw Clamp Terminal
  • Wire Size Range: 10 to 1/0 AWG
  • Operating Temperature: -2°C to 70°C (28°F to 158°F)
  • Standards & Certification: UL 520, CSA Certified, UL Listed
  • Dimensions: 2.63 in (Depth) x 4 in (Height) x 2 in (Width)
  • Weight: 1.15 lb
  • Compatible Panel Type: Eaton Powerline Panelboards
  • Breaker Type: Standard
  • Country of Origin: Dominican Republic
  • Family: Series C


Product Identification
  • UPC: 786679172544
  • GTIN: 00786679172544
