Eaton Cutler-Hammer GHB2070 - 70A 2-Pole Molded Case Circuit Breaker
Eaton Cutler-Hammer GHB2070 - 70A 2-Pole Molded Case Circuit Breaker
Eaton Cutler-Hammer GHB2070 - 70A 2-Pole Molded Case Circuit Breaker
Eaton Cutler-Hammer GHB2070 - 70A 2-Pole Molded Case Circuit Breaker

Eaton Cutler-Hammer GHB2070 - 70A 2-Pole Molded Case Circuit Breaker

Cutler Hammer
Price
Save $928.41
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price

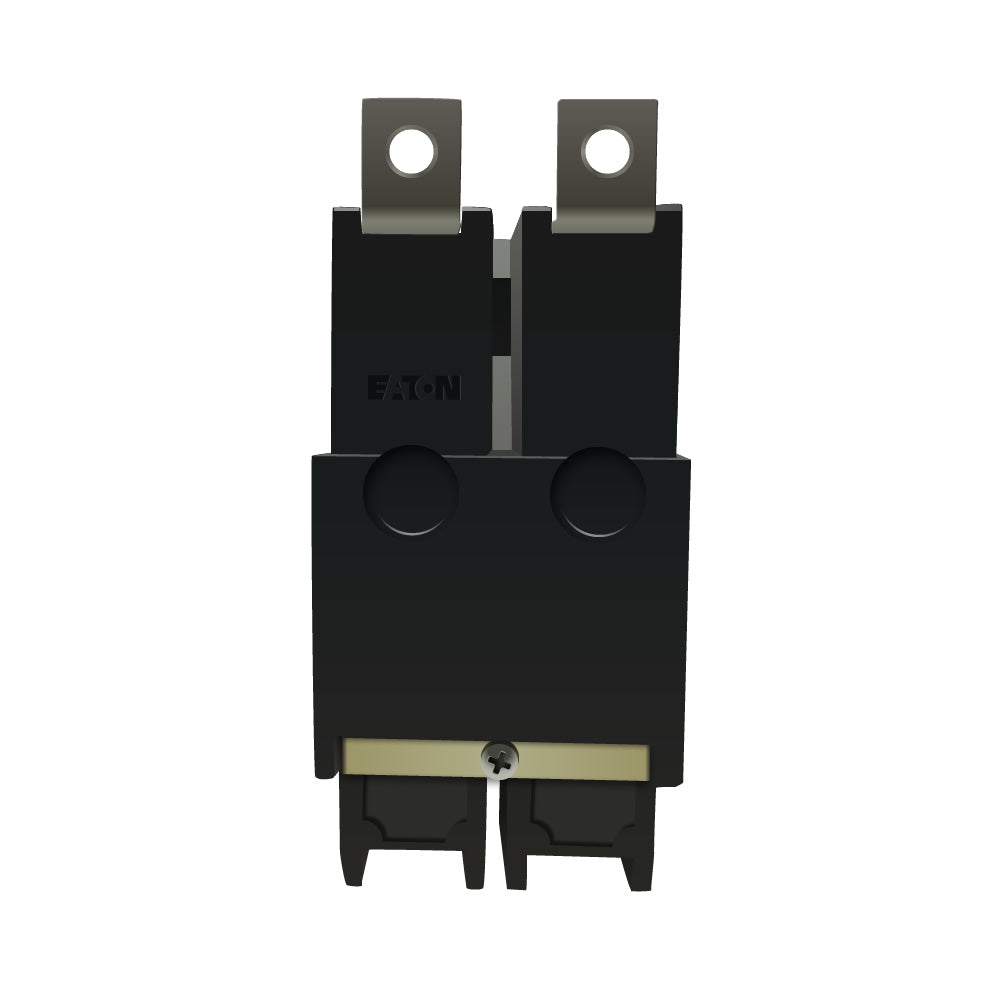

Eaton Cutler-Hammer GHB2070 is a molded case circuit breaker designed for providing reliable overcurrent protection in industrial power distribution systems. It features a 70A current rating and a 480V AC voltage rating, housed within a compact 100/GHB frame measuring 2.63 in (D) x 4 in (H) x 2 in (W) and weighing 1.15 lb. This thermal magnetic breaker, compliant with UL 517 and certified by CSA and UL, utilizes a long-time and instantaneous (LI) trip function with a 14kA interrupting rating at 480V to safeguard equipment. Its bolt-on, 2-pole configuration with screw clamp terminals accommodates wire sizes from 10 to 1/0 AWG, making it suitable for integration into Eaton Powerline panelboards for single-phase branch circuit protection in environments with an operating temperature range of -2 to 70 °C.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Thermal Magnetic Protection, LI (Long-time & Instantaneous) Trip
  • Voltage Rating: 480V AC
  • Current Rating: 70A
  • Dimensions: 2.63 in (Depth) x 4 in (Height) x 2 in (Width)
  • Standards: UL 517, CSA Certified, UL Listed
  • Applications: Industrial Power Distribution, Branch Circuit Protection in Panelboards
  • Switch Type: Standard Circuit Breaker
  • Configuration: Bolt-On Connection
  • Temp Rating: -2 to 70 °C (28 to 158 °F)
  • Phase: 1
  • AIC Rating: 14kA @ 480V
  • Connection: Screw Clamp Terminal
  • Poles: 2
  • Protection: Thermal Magnetic
  • Functions: Long-Time and Instantaneous Trip
  • Frame Size: 100/GHB
  • Panel Type: Eaton Powerline Panelboards
  • Breaker Type: Standard
  • Wire Size: 10 to 1/0 AWG
  • Certification: CSA, UL
  • Family: Series C
  • Country of Origin: Dominican Republic


Product Identification
  • UPC: 786679172520
  • GTIN: 00786679172520
