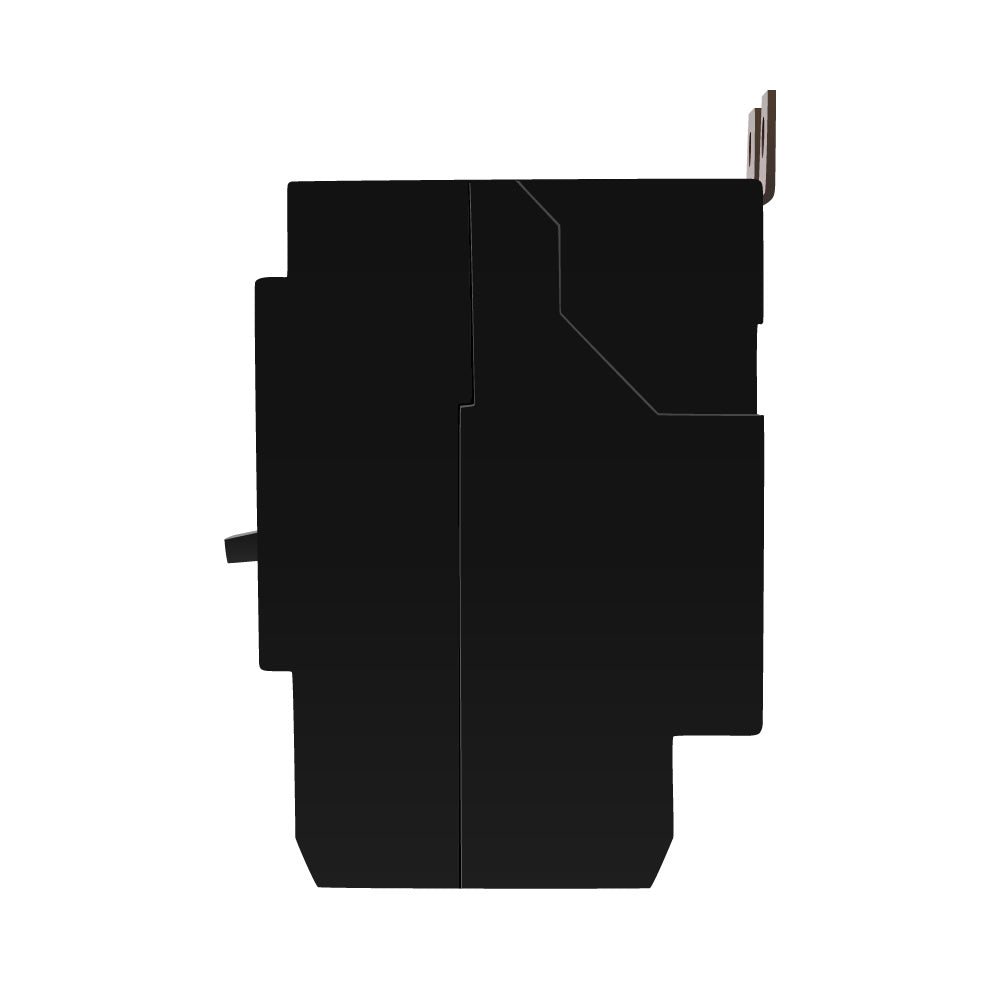

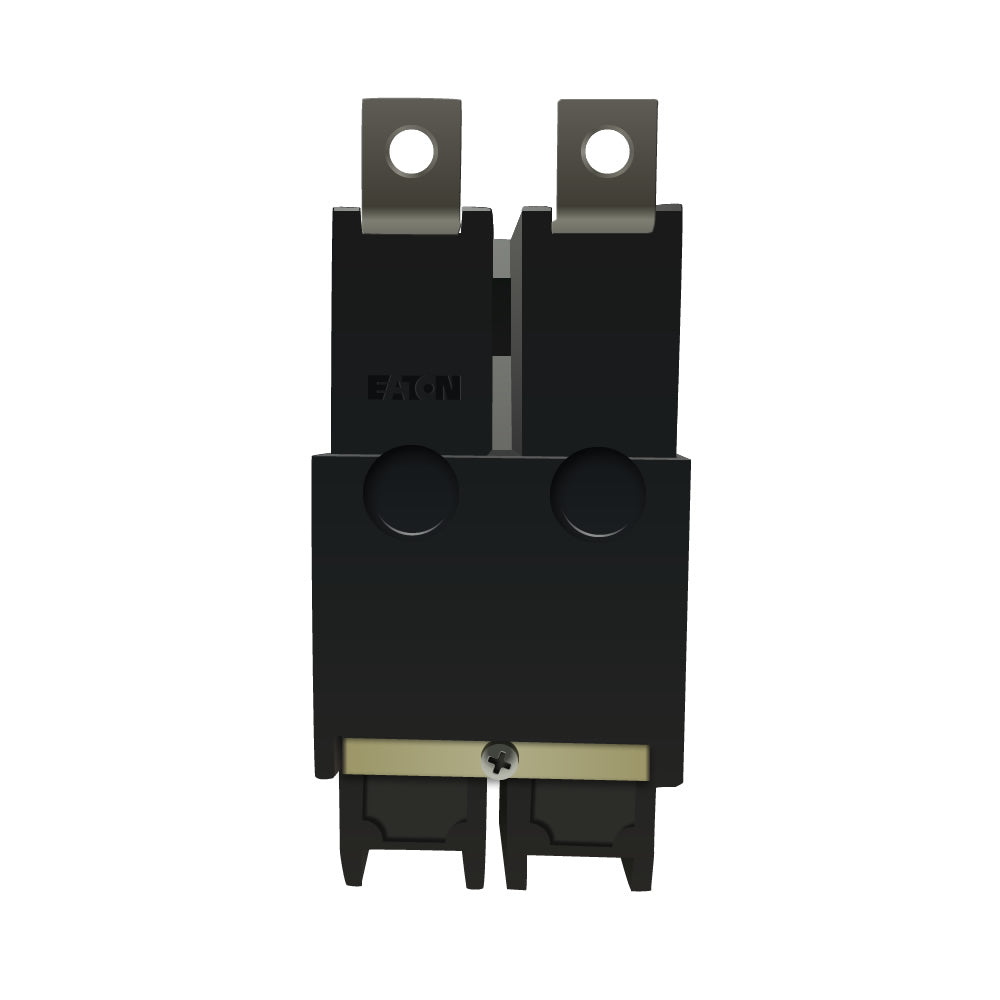

Eaton GHB2040 - 40A 2-Pole Circuit Breaker (480V, 14kA AIC)
Eaton GHB2040 - 40A 2-Pole Circuit Breaker (480V, 14kA AIC)
Eaton GHB2040 - 40A 2-Pole Circuit Breaker (480V, 14kA AIC)
Eaton GHB2040 - 40A 2-Pole Circuit Breaker (480V, 14kA AIC)

Eaton GHB2040 - 40A 2-Pole Circuit Breaker (480V, 14kA AIC)

Cutler Hammer
Price
Save $395.46
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Eaton Cutler Hammer GHB2040 is a molded case circuit breaker designed for providing reliable overcurrent protection in industrial and commercial electrical systems. It features a 40A current rating and a 480V AC voltage rating, housed within a compact 2.63" x 4" x 2" bolt-on frame. This thermal magnetic breaker complies with UL 513 standards and is CSA Certified and UL Listed, ensuring safe operation in environments from -2°C to 70°C. Its 14kA interrupting rating at 480V and compatibility with 10 to 1/0 AWG wire make it suitable for protecting feeders and branch circuits in Eaton Powerline panelboards.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Thermal Magnetic Protection, Series C Family, GHB Type
  • Voltage Rating: 480V AC
  • Current Rating: 40A
  • Frame Size: 100/GHB
  • Poles: 2
  • Connection: Bolt-On
  • Trip Functions: LI (Long-Time and Instantaneous)
  • AIC Rating: 14kA @ 480V AC
  • Phase: 1
  • Wire Size Compatibility: 10 to 1/0 AWG
  • Terminal Connection: Screw Clamp
  • Operating Temperature: -2°C to 70°C (28°F to 158°F)
  • Dimensions: 2.63 in (D) x 4 in (H) x 2 in (W)
  • Weight: 1.15 lb
  • Standards & Certification: UL 513, CSA Certified, UL Listed
  • Panel Type: Eaton Powerline Panelboards
  • Country of Origin: Dominican Republic


Product Identification
  • UPC: 786679911228
  • GTIN: 00786679911228
