Eaton GHB2030 - Molded Case Circuit Breaker 30A 480V 2-Pole
Eaton GHB2030 - Molded Case Circuit Breaker 30A 480V 2-Pole
Eaton GHB2030 - Molded Case Circuit Breaker 30A 480V 2-Pole
Eaton GHB2030 - Molded Case Circuit Breaker 30A 480V 2-Pole

Eaton GHB2030 - Molded Case Circuit Breaker 30A 480V 2-Pole

Cutler Hammer
Price
Save $403.05
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price

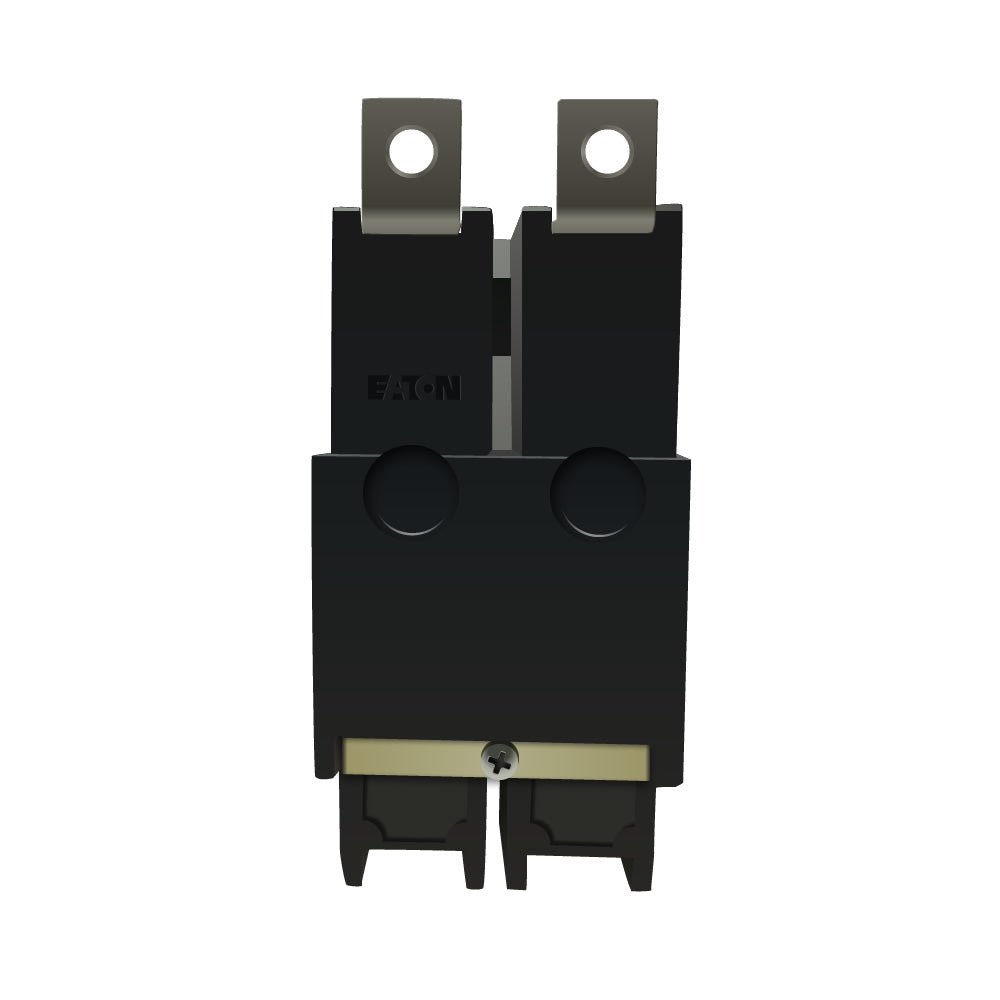

Eaton Cutler Hammer GHB2030 is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in industrial electrical systems. It features a 30A current rating and a 480V AC voltage rating, housed within a compact 100/GHB frame measuring 2.63" D x 4" H x 2" W and weighing 1.15 lb. This thermal-magnetic breaker, compliant with UL 511 and certified by CSA and UL, utilizes a long-time and instantaneous (LI) trip function with a 14kA interrupting rating at 480V for robust protection. Its single-phase, two-pole, bolt-on configuration with screw clamp terminals accommodates wire sizes from 10 to 1/0 AWG, making it suitable for integration into Eaton Powerline panelboards and similar industrial distribution equipment.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Thermal-Magnetic Protection, Bolt-On Connection
  • Voltage Rating: 480V AC
  • Current Rating: 30A
  • Dimensions: 2.63 in (Depth) x 4 in (Height) x 2 in (Width)
  • Standards: UL 511, CSA Certified, UL Listed
  • Applications: Industrial Power Distribution, Panelboard Protection
  • Switch Type: Circuit Breaker
  • Configuration: Bolt-On
  • Phase: 1
  • AIC Rating: 14kA @ 480V
  • Poles: 2
  • Protection: Thermal Magnetic
  • Functions: LI (Long-Time and Instantaneous Trip)
  • Frame Size: 100/GHB
  • Breaker Type: Standard
  • Temp Rating: -2°C to 70°C (28°F to 158°F)
  • Terminal Connection: Screw Clamp
  • Wire Size: 10 to 1/0 AWG
  • Panel Type: Eaton Powerline Panelboards
  • Family: Series C
  • Weight: 1.15 lb


Product Identification
  • UPC: 786679911211
  • GTIN: 00786679911211
