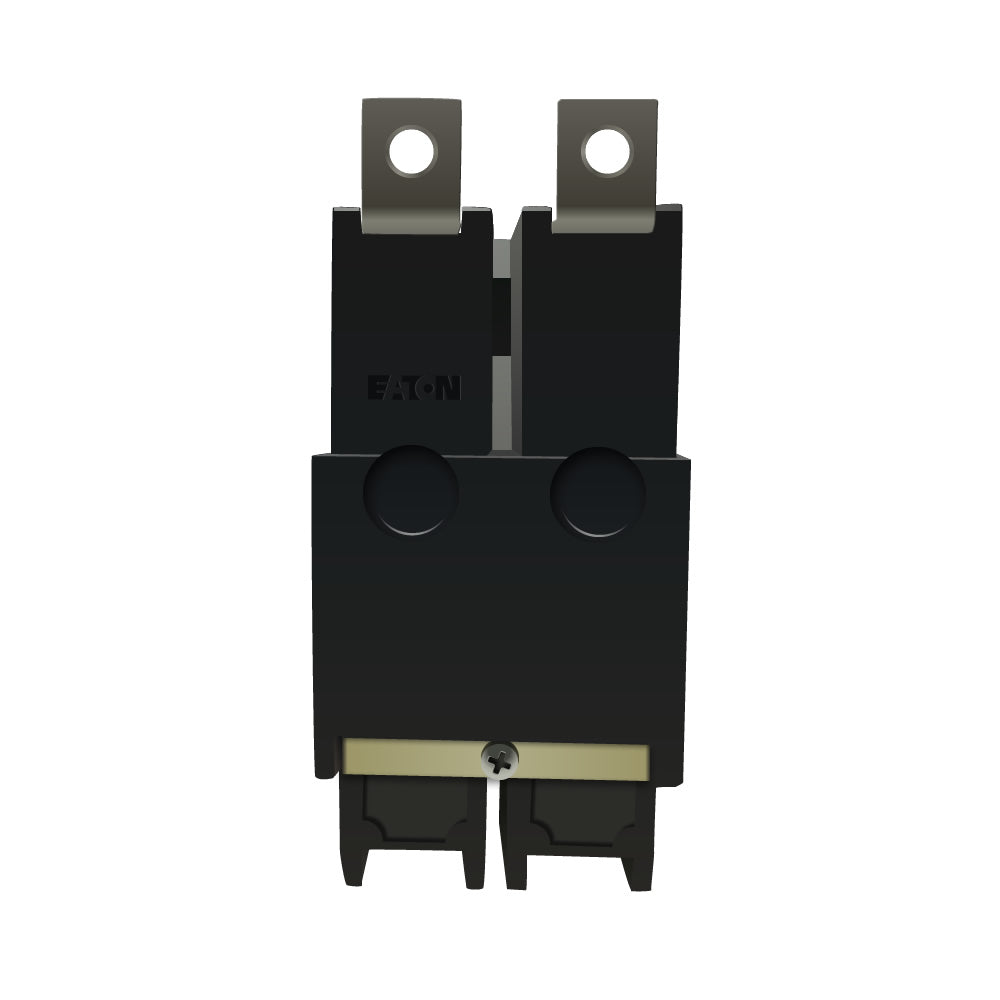

Cutler Hammer GHB2025 - Molded Case Circuit Breaker 25A 480V 2-Pole
Cutler Hammer GHB2025 - Molded Case Circuit Breaker 25A 480V 2-Pole
Cutler Hammer GHB2025 - Molded Case Circuit Breaker 25A 480V 2-Pole
Cutler Hammer GHB2025 - Molded Case Circuit Breaker 25A 480V 2-Pole

Cutler Hammer GHB2025 - Molded Case Circuit Breaker 25A 480V 2-Pole

Cutler Hammer
Price
Save $326.24
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Cutler Hammer GHB2025 is a molded case circuit breaker designed for providing reliable overcurrent protection in industrial and commercial electrical systems. It features a 25A current rating and a 480V AC voltage rating, housed within a compact 100/GHB frame measuring 2.63 in x 3 in x 2 in (L/D x H x W) and weighing 1.21 lb. The breaker is constructed with a thermal-magnetic trip unit for both long-time and instantaneous protection, is CSA Certified and UL Listed to UL 510 standards, and is engineered for bolt-on installation in Eaton Powerline panelboards for branch circuit applications.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Standard, Thermal-Magnetic Protection
  • Voltage Rating: 480V AC
  • Current Rating: 25A
  • Frame Size: 100/GHB
  • Poles: 2
  • Phase: 1
  • AIC Rating: 14kA @ 480V
  • Connection: Bolt-On
  • Terminal Connection: Screw Clamp
  • Wire Size: 10 to 1/0 AWG (MCM Size)
  • Functions: LI (Long-Time and Instantaneous Trip)
  • Dimensions: 2.63 in x 3 in x 2 in (Length/Depth x Height x Width)
  • Weight: 1.21 lb
  • Temp Rating: -2 to 70 °C (28 to 158 °F)
  • Panel Type: Eaton Powerline Panelboards
  • Standards: UL 510
  • Certification: CSA Certified, UL Listed
  • Country of Origin: Dominican Republic
  • Family: Series C


Product Identification
  • UPC: 786679172452
  • GTIN: 00786679172452
