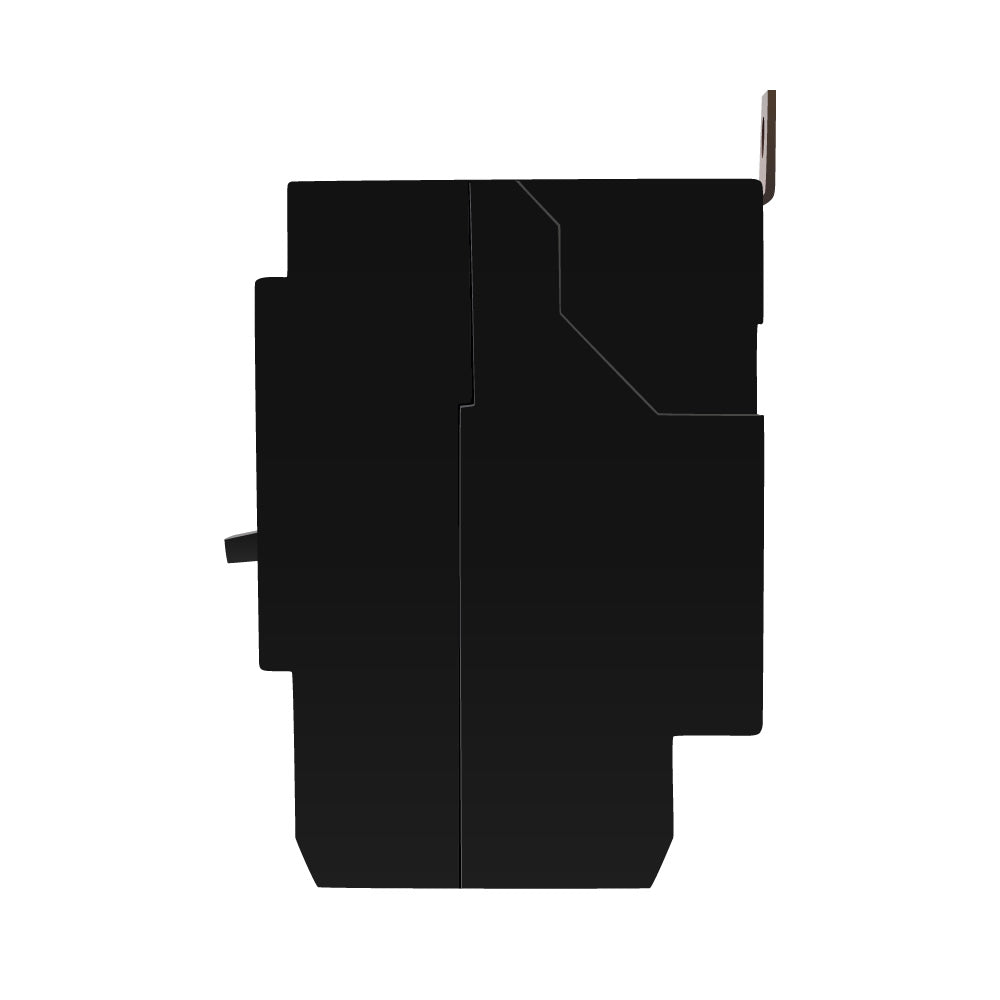

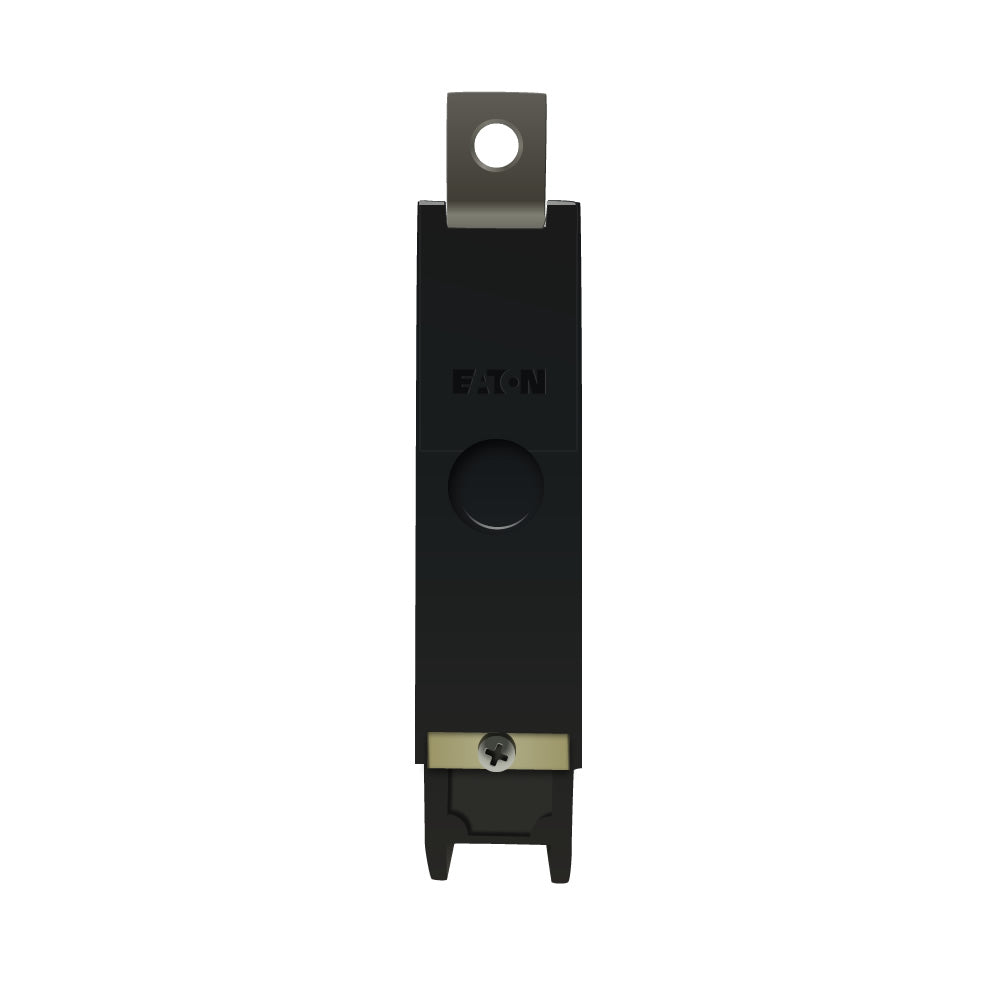

Cutler Hammer GHB1100 is a molded case circuit breaker designed for providing reliable overcurrent protection in commercial and industrial electrical systems. It features a 100A current rating and a 480V AC voltage rating, housed within a compact 100/GHB frame measuring 2.63" x 4" x 1" (LxHxW) and weighing 0.9 lb. This thermal magnetic breaker provides both long-time and instantaneous (LI) trip functions with a 14kA interrupting rating at 277V, utilizing a bolt-on, single-pole connection with screw clamp terminals for secure installation. It is engineered for compliance with UL 504 standards and is certified by both UL and CSA, ensuring reliable operation in Eaton Powerline panelboards within an ambient temperature range of -2 to 70 °C (28 to 158 °F).

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Standard, Thermal Magnetic Protection
  • Voltage Rating: 480V AC
  • Current Rating: 100A
  • Frame Size: 100/GHB
  • Poles: 1
  • AIC Rating: 14kA @ 277V
  • Trip Functions: LI (Long-time and Instantaneous)
  • Connection: Bolt-On
  • Terminal Connection: Screw Clamp
  • Phase: 1
  • Operating Temperature: -2 to 70 °C (28 to 158 °F)
  • Dimensions: 2.63 in (Depth) x 4 in (Height) x 1 in (Width)
  • Weight: 0.9 lb
  • Standards: UL 504
  • Certification: CSA Certified, UL Listed
  • Panel Type: Compatible with Eaton Powerline Panelboards
  • Family: Series C
  • Country of Origin: Dominican Republic


Product Identification
  • UPC: 786679021774
  • GTIN: 00786679021774
