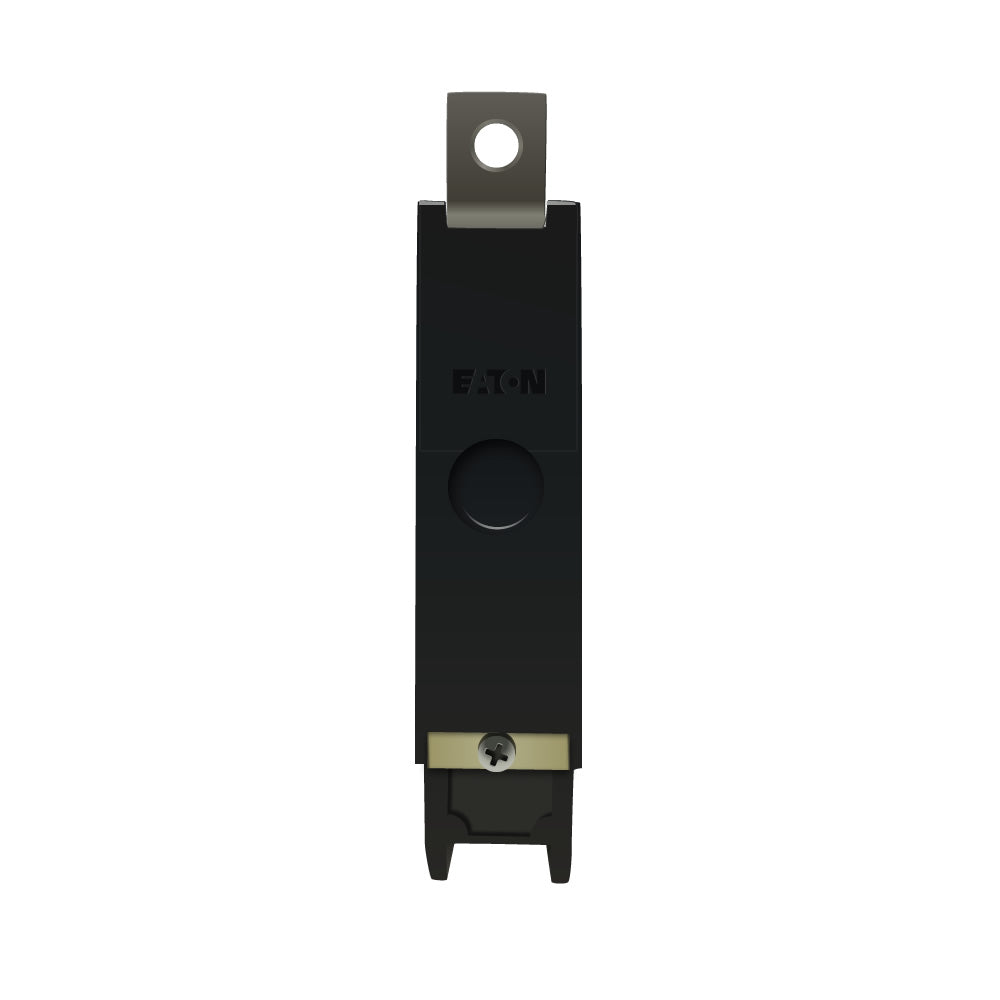

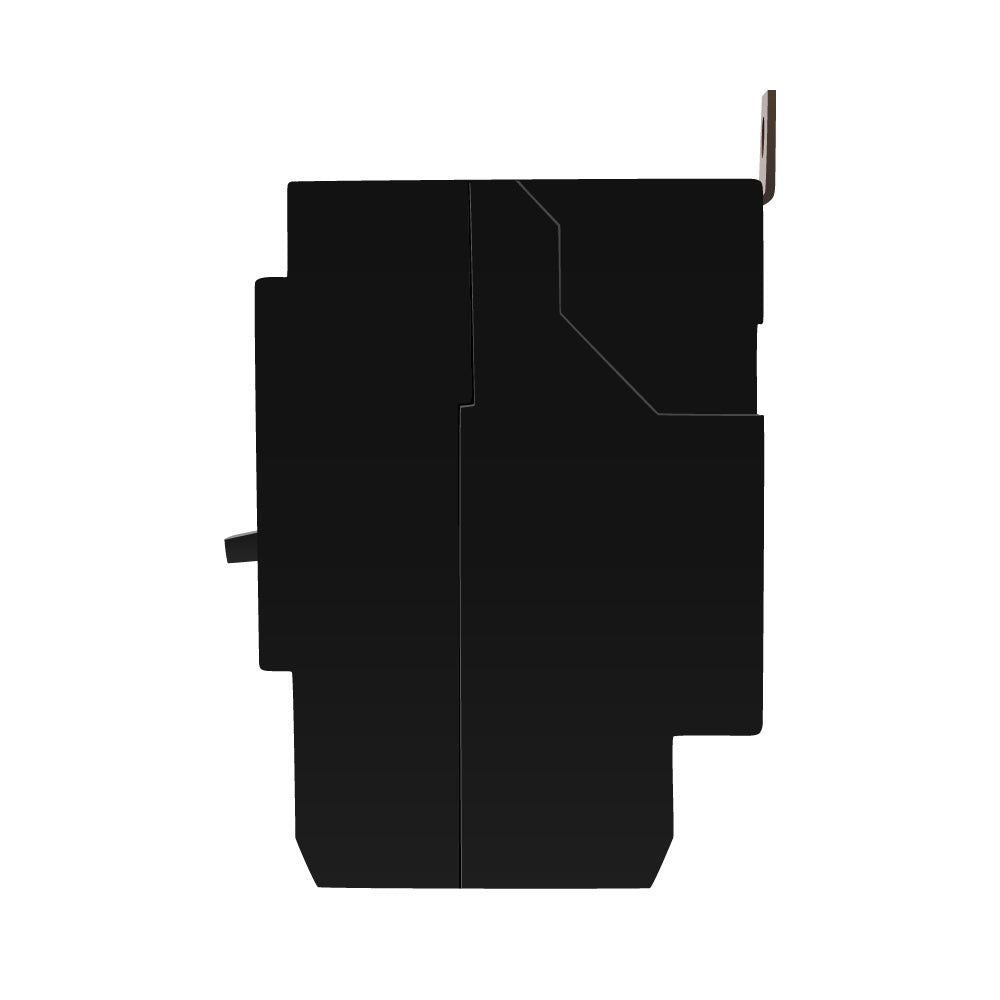

Eaton GHB1070 - Molded Case Circuit Breaker 70A 480V (1-Pole Bolt-On)
Eaton GHB1070 - Molded Case Circuit Breaker 70A 480V (1-Pole Bolt-On)
Eaton GHB1070 - Molded Case Circuit Breaker 70A 480V (1-Pole Bolt-On)
Eaton GHB1070 - Molded Case Circuit Breaker 70A 480V (1-Pole Bolt-On)

Eaton GHB1070 - Molded Case Circuit Breaker 70A 480V (1-Pole Bolt-On)

Cutler Hammer
Price
Save $268.85
/
Condition
  • Low stock - 9 items left
  • Backordered, shipping soon
Call for Price
Eaton Cutler Hammer GHB1070 is a molded case circuit breaker designed for providing reliable overcurrent protection in industrial and commercial electrical systems. It features a 70A current rating and a 480V voltage rating, housed within a compact 100/GHB frame measuring 2.63 in x 4 in x 1 in (L/D x H x W) and weighing 0.7 lb. The breaker utilizes a thermal-magnetic trip mechanism for both long-time delay and instantaneous protection, is UL 501 compliant, and carries CSA and UL certifications. It is engineered for bolt-on installation in single-phase Eaton Powerline panelboards, operating effectively within a temperature range of -2 to 70 °C (28 to 158 °F).

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Standard Type, Thermal Magnetic Protection with LI (Long-time & Instantaneous) Trip
  • Voltage Rating: 480V AC
  • Current Rating: 70A
  • Frame Size: 100/GHB
  • Poles: 1
  • Phase: 1
  • AIC Rating: 14kA @ 277V
  • Connection: Bolt-On
  • Terminal Connection: Screw Clamp
  • Panel Type: Eaton Powerline Panelboards
  • Dimensions: 2.63 in x 4 in x 1 in (Length/Depth x Height x Width)
  • Weight: 0.7 lb
  • Operating Temperature: -2 to 70 °C (28 to 158 °F)
  • Standards & Certification: UL 501, CSA Certified, UL Listed
  • Family: Series C
  • Country of Origin: Dominican Republic


Product Identification
  • UPC: 786679021743
  • GTIN: 00786679021743
