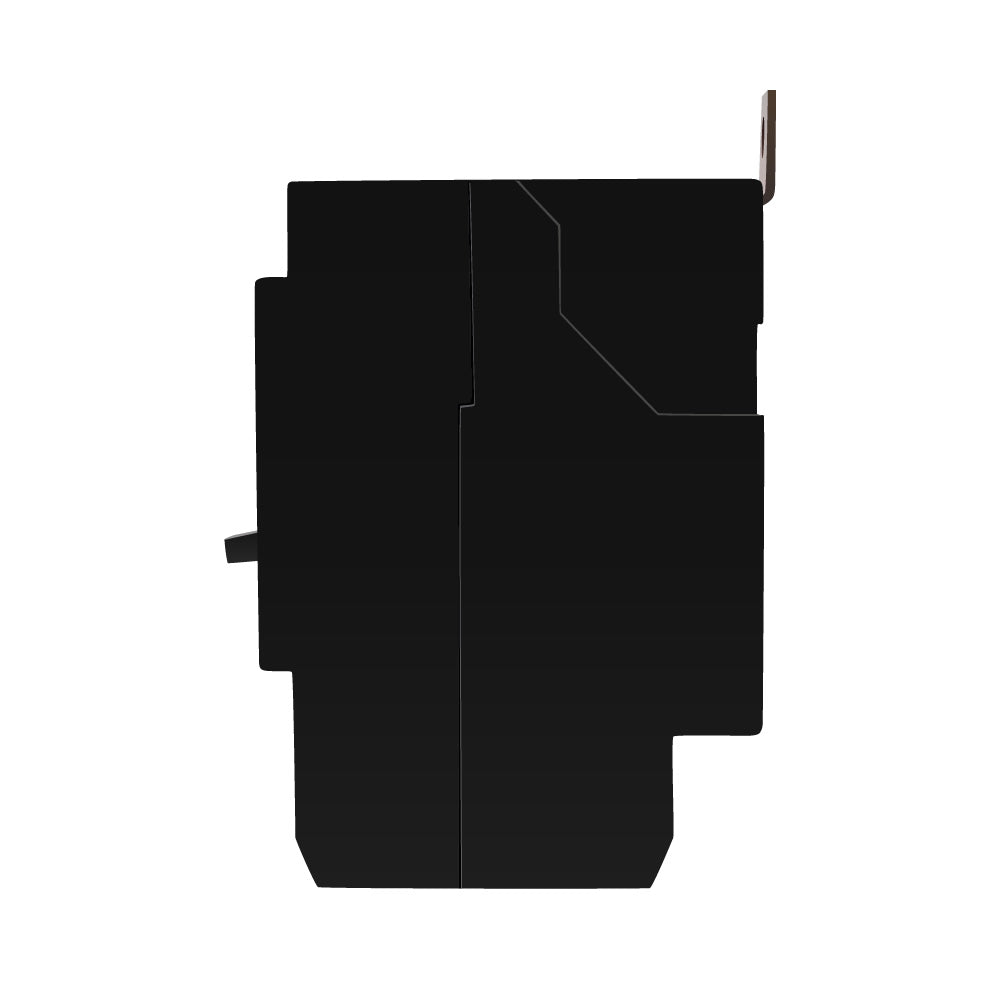

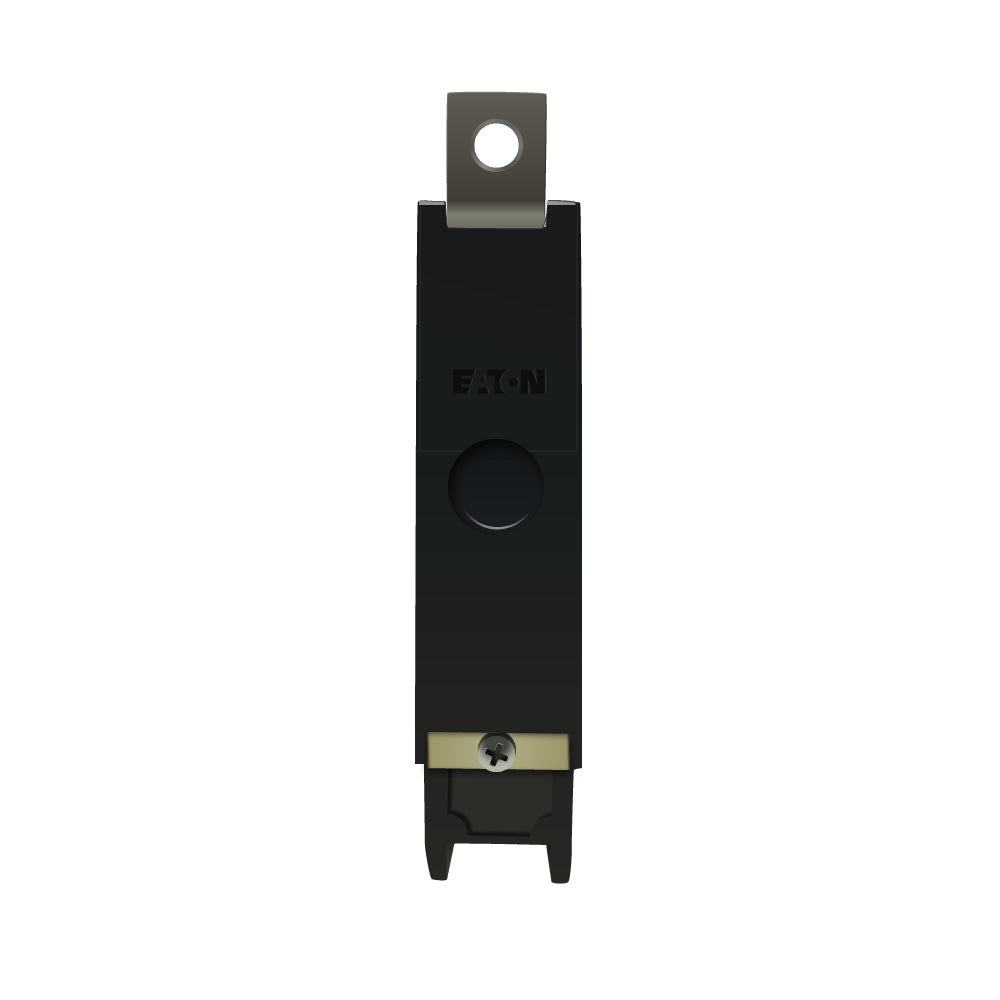

Eaton Cutler-Hammer GHB1050 - Molded Case Circuit Breaker 50A 480V (14kA AIC)
Eaton Cutler-Hammer GHB1050 - Molded Case Circuit Breaker 50A 480V (14kA AIC)
Eaton Cutler-Hammer GHB1050 - Molded Case Circuit Breaker 50A 480V (14kA AIC)
Eaton Cutler-Hammer GHB1050 - Molded Case Circuit Breaker 50A 480V (14kA AIC)

Eaton Cutler-Hammer GHB1050 - Molded Case Circuit Breaker 50A 480V (14kA AIC)

Cutler Hammer
Price
Save $141.17
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Eaton Cutler-Hammer GHB1050 is a molded case circuit breaker designed for providing reliable overcurrent protection in commercial and industrial electrical systems. It features a 50A current rating and a 480V AC voltage rating, housed within a compact 100/GHB frame measuring 2.63 in x 4 in x 1 in (LxHxW) and weighing 0.65 lb. The breaker utilizes a thermal-magnetic trip mechanism with long-time and instantaneous (LI) functions, is UL 499 listed and CSA certified, and is engineered for bolt-on connection in single-phase Eaton Powerline panelboards, operating effectively in ambient temperatures from -2°C to 70°C (28°F to 158°F).

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Standard, Thermal-Magnetic Protection
  • Voltage Rating: 480V AC
  • Current Rating: 50A
  • Frame Size: 100/GHB
  • AIC Rating: 14kA @ 277V
  • Poles: 1
  • Phase: 1
  • Connection: Bolt-On
  • Terminal Connection: Screw Clamp
  • MCM Size / Wire Range: 14 AWG to 10 AWG
  • Dimensions: 2.63 in x 4 in x 1 in (Length/Depth x Height x Width)
  • Weight: 0.65 lb
  • Operating Temperature: -2°C to 70°C (28°F to 158°F)
  • Standards & Certification: UL 499, UL Listed, CSA Certified
  • Panel Type: Eaton Powerline Panelboards
  • Trip Functions: LI (Long-Time and Instantaneous)
  • Family: Series C
  • Country of Origin: Dominican Republic


Product Identification
  • UPC: 786679021729
  • GTIN: 00786679021729
