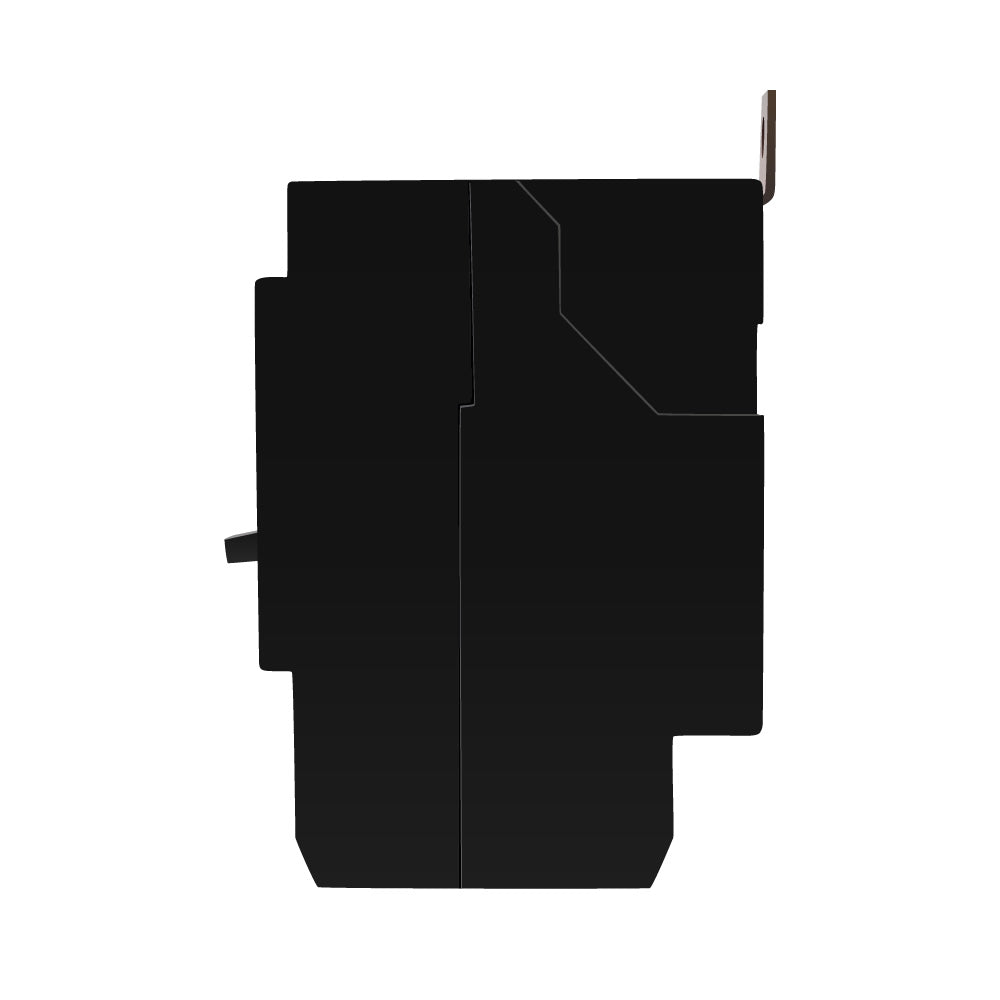

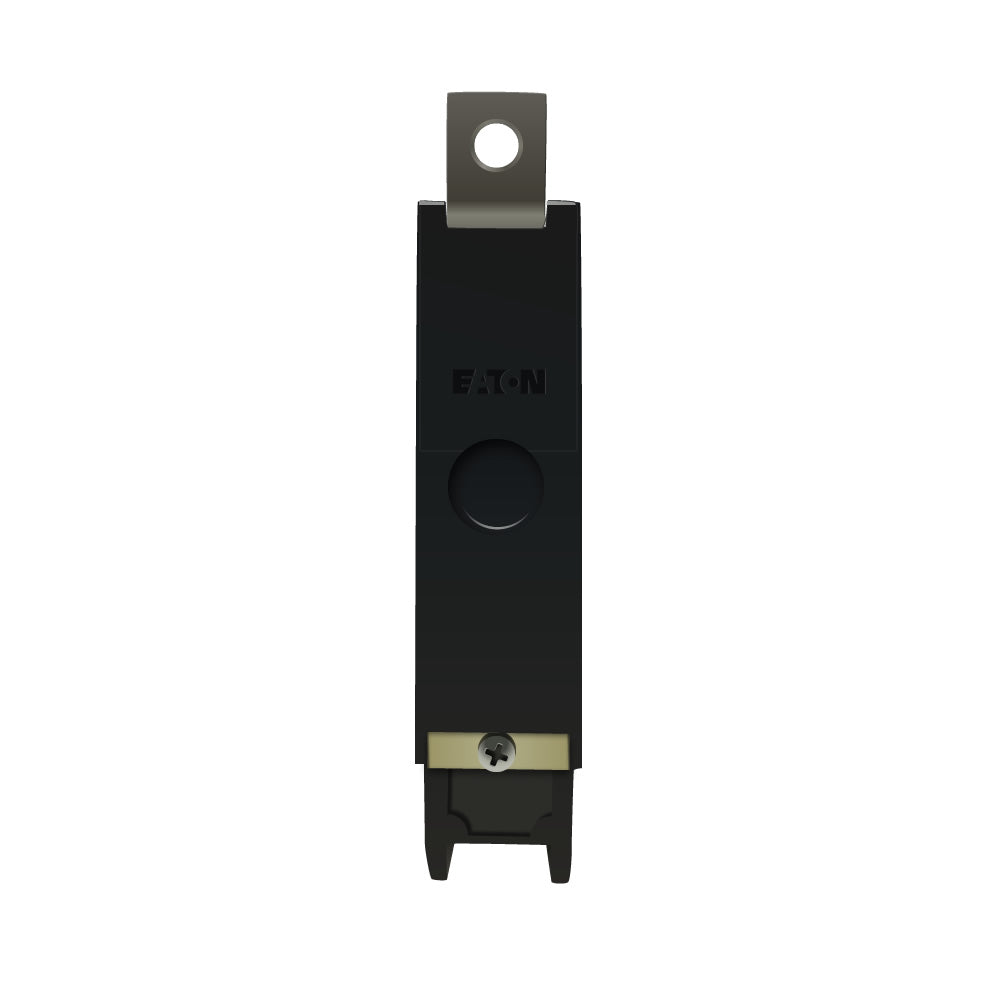

Cutler Hammer GHB1045 - Molded Case Circuit Breaker 45A 480V (1-Pole)
Cutler Hammer GHB1045 - Molded Case Circuit Breaker 45A 480V (1-Pole)
Cutler Hammer GHB1045 - Molded Case Circuit Breaker 45A 480V (1-Pole)
Cutler Hammer GHB1045 - Molded Case Circuit Breaker 45A 480V (1-Pole)

Cutler Hammer GHB1045 - Molded Case Circuit Breaker 45A 480V (1-Pole)

Cutler Hammer
Price
Save $142.49
/
Condition
  • Low stock - 10 items left
  • Backordered, shipping soon
Call for Price
Cutler Hammer GHB1045 is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in industrial and commercial electrical systems. It features a 45A current rating and a 480V voltage rating, housed within a compact 100/GHB frame measuring 2.63" x 4" x 1" and weighing 0.9 lb. The breaker utilizes a thermal-magnetic trip mechanism for both long-time and instantaneous protection, is UL Listed and CSA Certified to UL 498 standards, and is engineered for bolt-on installation in Eaton Powerline panelboards for single-phase applications.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Standard Type, Thermal Magnetic Protection
  • Voltage Rating: 480V AC
  • Current Rating: 45A
  • Frame Size: 100/GHB
  • AIC Rating: 14kA @ 277V
  • Poles: 1
  • Phase: 1
  • Connection: Bolt-On
  • Terminal Connection: Screw Clamp
  • Trip Functions: LI (Long-Time and Instantaneous)
  • Standards & Certification: UL 498, UL Listed, CSA Certified
  • Operating Temperature: -2°C to 70°C (28°F to 158°F)
  • Dimensions: 2.63 in (D) x 4 in (H) x 1 in (W)
  • Weight: 0.9 lb
  • Panel Type: Eaton Powerline Panelboards
  • Country of Origin: Dominican Republic


Product Identification
  • UPC: 786679006382
  • GTIN: 00786679006382
