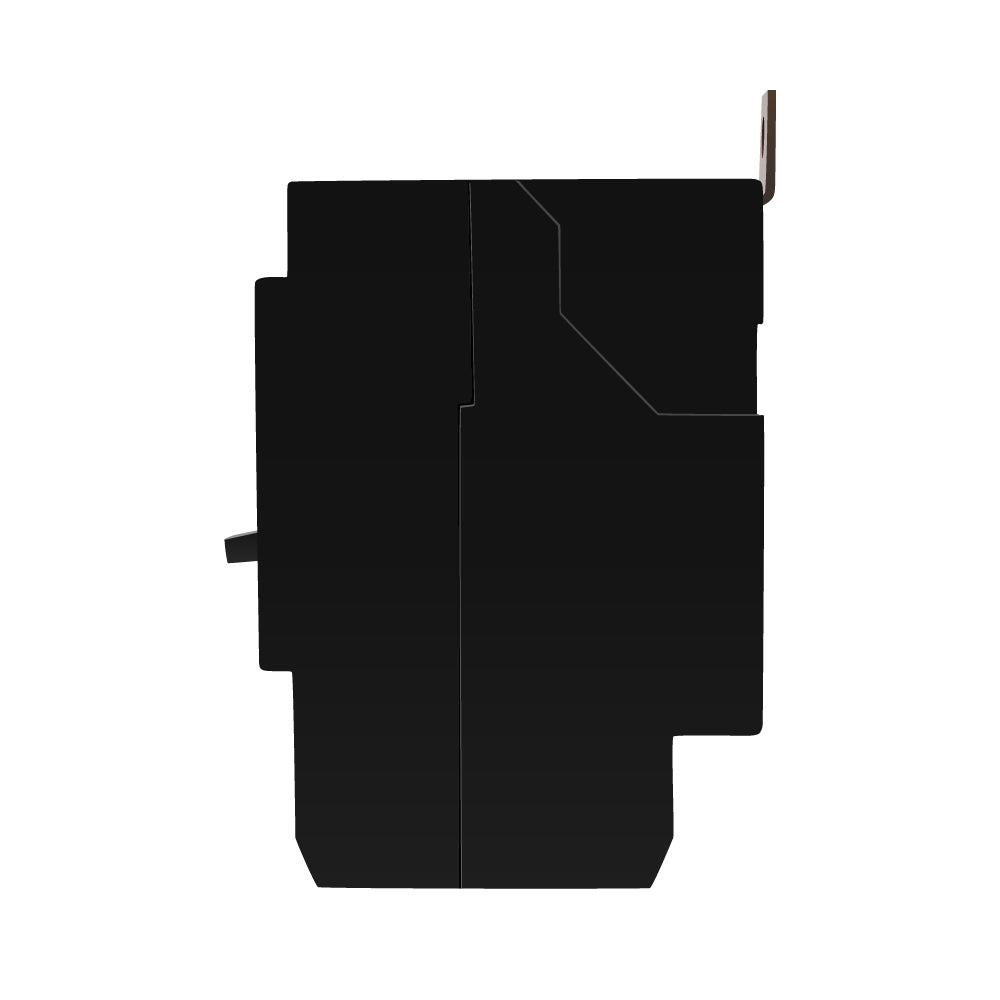

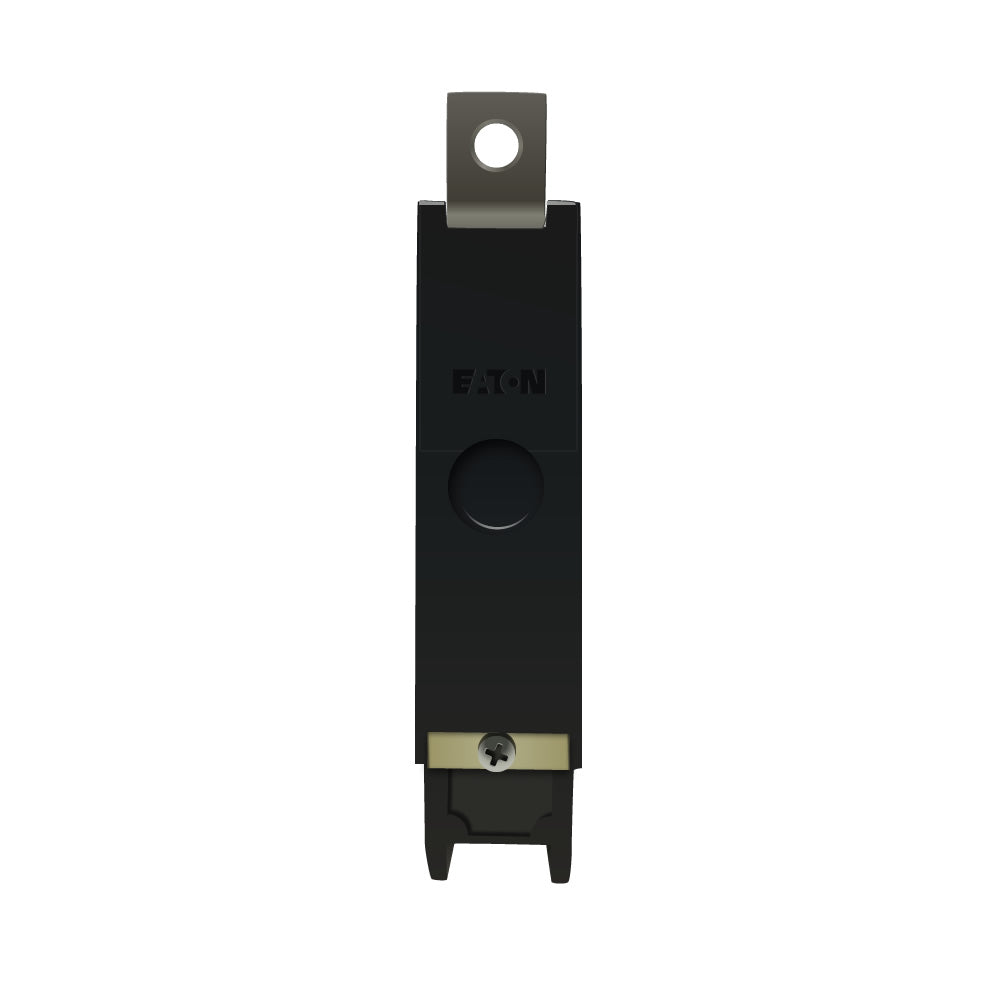

Cutler Hammer GHB1035 is a molded case circuit breaker designed to provide reliable overcurrent and short-circuit protection in commercial and industrial electrical systems. It features a 35A current rating and a 480V voltage rating, housed within a compact 100/GHB frame measuring 2.63 in x 4 in x 1 in (LxHxW) and weighing 0.65 lb. This single-pole, bolt-on breaker utilizes thermal-magnetic protection with LI (Long-time and Instantaneous) trip functions and is CSA Certified and UL Listed to standard 496. It is engineered for integration into Eaton Powerline panelboards, offering a 14kA interrupting rating at 277V and screw clamp terminals compatible with 10 to 14 AWG wire, operating effectively in ambient temperatures from -2 to 70 °C.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Thermal-Magnetic Protection, Bolt-On Connection
  • Voltage Rating: 480V AC
  • Current Rating: 35A
  • Dimensions: 2.63 in x 4 in x 1 in (Length x Height x Width)
  • Standards: UL 496
  • Applications: Commercial and Industrial Electrical Distribution, Eaton Powerline Panelboards
  • Switch Type: Standard
  • Configuration: Single Pole
  • Temp Rating: -2 to 70 °C (28 to 158 °F)
  • Shipping Dimensions: 2.63 in x 4 in x 1 in
  • Phase: 1
  • Voltage: 480V
  • Amperage: 35A
  • AIC rating: 14kA @ 277V
  • Connection: Bolt-On
  • Poles: 1
  • Protection: Thermal Magnetic
  • Functions: LI - Long-Time and Instantaneous Trip
  • Frame Size: 100/GHB
  • Trip Type: Thermal Magnetic
  • Panel Type: Eaton Powerline Panelboards
  • Breaker Type: Standard
  • MCM Size: Min. 14 AWG, Max. 10 AWG
  • Mounting: Bolt-On
  • Certification: CSA Certified, UL Listed
  • Terminal Connection: Screw Clamp
  • Standards: UL 496


Product Identification
  • UPC: 786679023648
  • GTIN: 00786679023648
