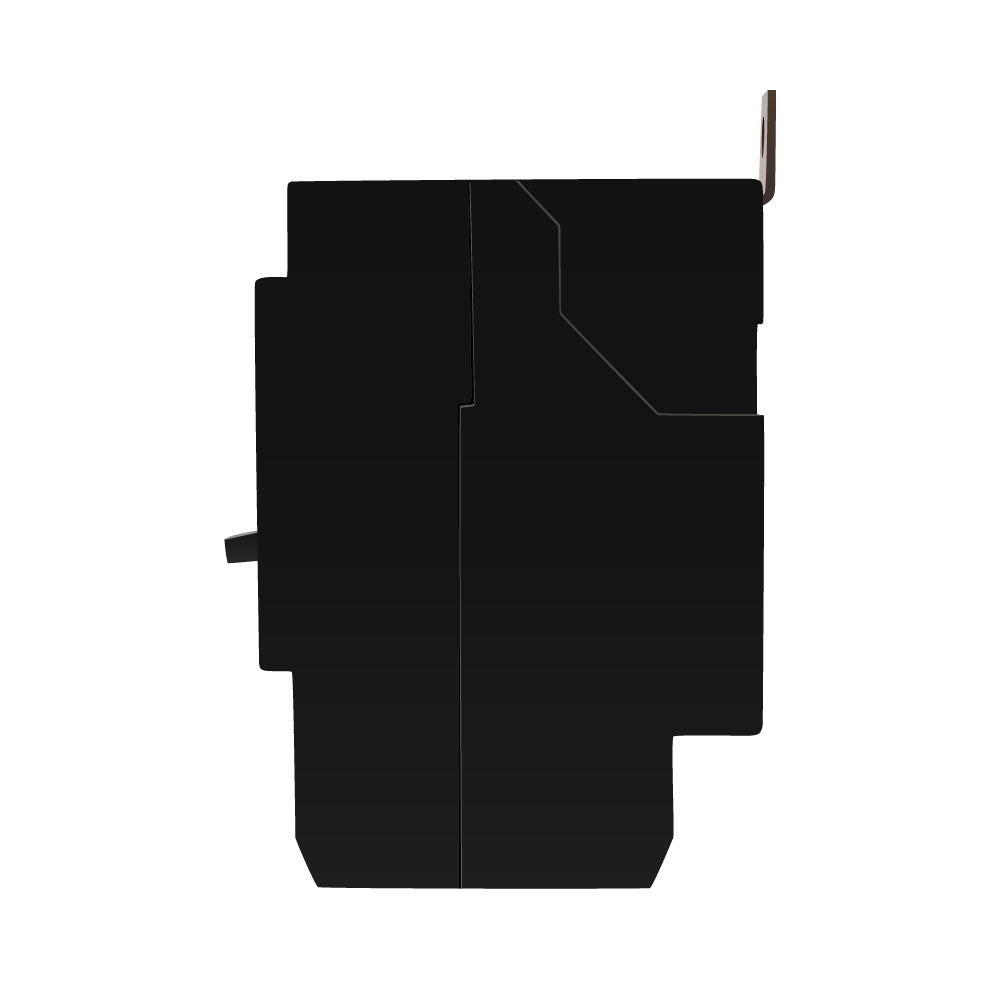

Cutler Hammer GHB1020 - Molded Case Breaker 20A 480V (1-Pole)
Cutler Hammer GHB1020 - Molded Case Breaker 20A 480V (1-Pole)
Cutler Hammer GHB1020 - Molded Case Breaker 20A 480V (1-Pole)
Cutler Hammer GHB1020 - Molded Case Breaker 20A 480V (1-Pole)

Cutler Hammer GHB1020 - Molded Case Breaker 20A 480V (1-Pole)

Cutler Hammer
Price
Save $169.62
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Cutler Hammer GHB1020 is a molded case circuit breaker designed for providing reliable overcurrent protection in commercial and light industrial electrical systems. It features a 20A current rating and a 480V AC voltage rating, housed within a compact 100/GHB frame measuring 2.63 in x 4 in x 1 in and weighing 0.65 lb. The breaker utilizes a thermal-magnetic trip mechanism for both long-time and instantaneous (LI) protection, is UL 491 listed and CSA certified, and is engineered for bolt-on installation in Eaton Powerline panelboards to safeguard single-phase branch circuits.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Standard, Thermal Magnetic Protection
  • Voltage Rating: 480V AC
  • Current Rating: 20A
  • Frame Size: 100/GHB
  • AIC Rating: 14kA @ 277V
  • Poles: 1
  • Phase: 1
  • Connection: Bolt-On
  • Terminal Connection: Screw Clamp
  • Functions: LI (Long-Time and Instantaneous Trip)
  • Standards & Certification: UL 491, CSA Certified, UL Listed
  • Panel Type: Eaton Powerline Panelboards
  • Dimensions: 2.63 in (D) x 4 in (H) x 1 in (W)
  • Weight: 0.65 lb
  • Temp Rating: -2°C to 70°C (28°F to 158°F)
  • MCM Size / Wire Range: 14 AWG to 10 AWG
  • Breaker Type: Standard
  • Protection: Thermal Magnetic
  • Family: Series C
  • Country of Origin: Dominican Republic


Product Identification
  • UPC: 786679023624
  • GTIN: 00786679023624
