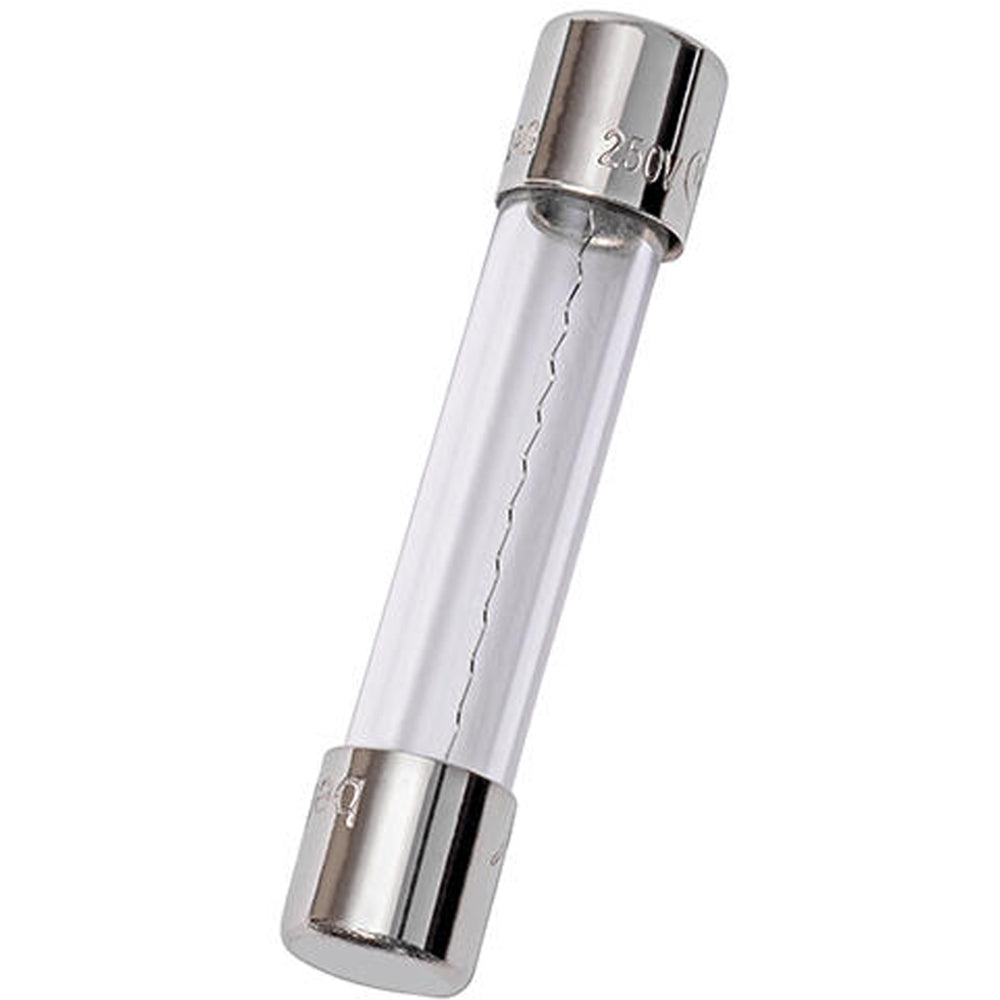

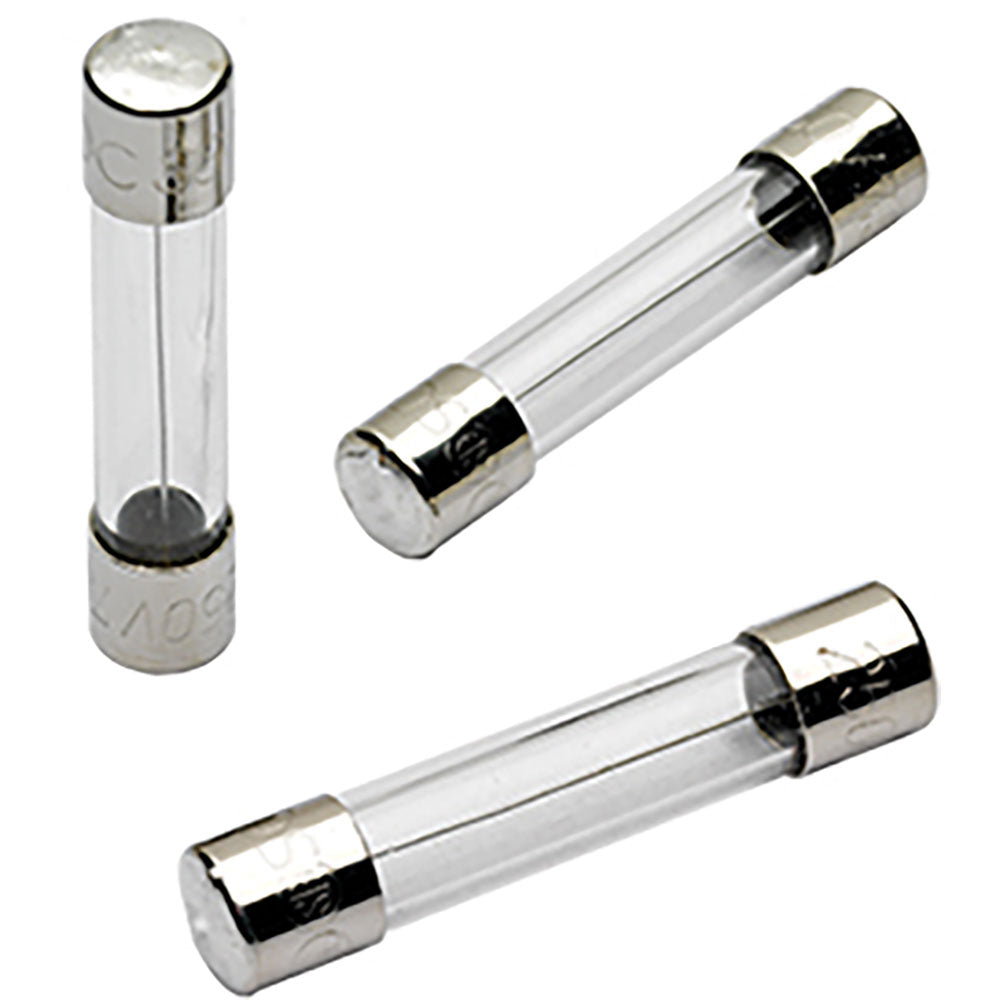

Ferraz Shawmut GGC10 - GGC Series Fuse 10A 250V (200kA AIC)

Ferraz Shawmut GGC10 is a low-voltage fuse designed for circuit protection in industrial electrical systems. This 250V-rated fuse features a 10A current rating and 200kA interrupting capacity at 250V AC, housed in a compact 1-1/2" ferrule-connected barrel with 0.25" diameter. UL and CSA-certified, the GGC series fuse meets stringent safety standards for overcurrent protection in motor control centers, power distribution panels, and industrial control equipment.

Key Features & Specifications

• Type: GGC series low-voltage current-limiting fuse with ferrule connection
• Voltage Rating: 250V AC
• Current Rating: 10A
• Dimensions: 1-1/2" length, 0.25" diameter
• Standards: UL, CSA certified
• Applications: Motor controls, power distribution, industrial equipment
• AIC rating: 200kA@250Vac
• Connection: Ferrule
• Barrels: 1
• Certification: CSA, UL

Product Identification

• UPC: 78200176076
• GTIN: 00782001760762
