Cutler Hammer
Price
Save $182.39
/
Condition
  • Low stock - 3 items left
  • Backordered, shipping soon
Call for Price

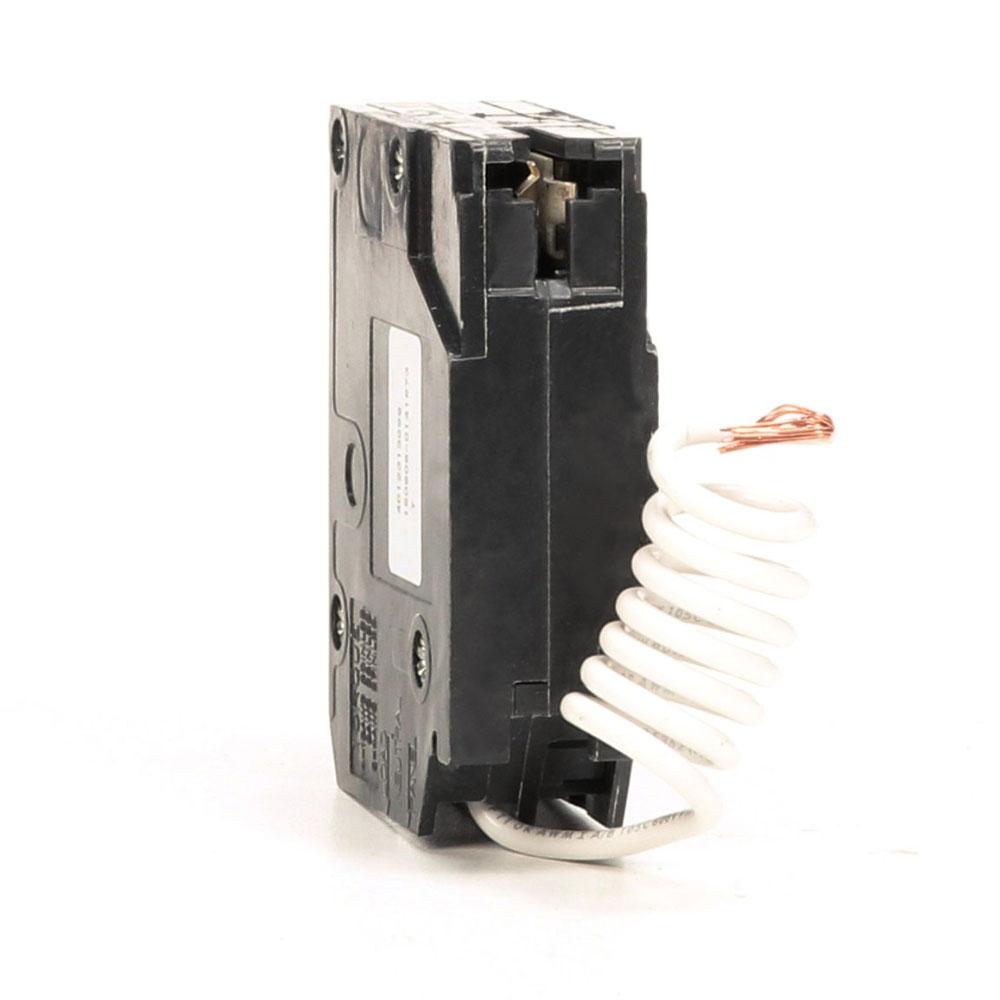

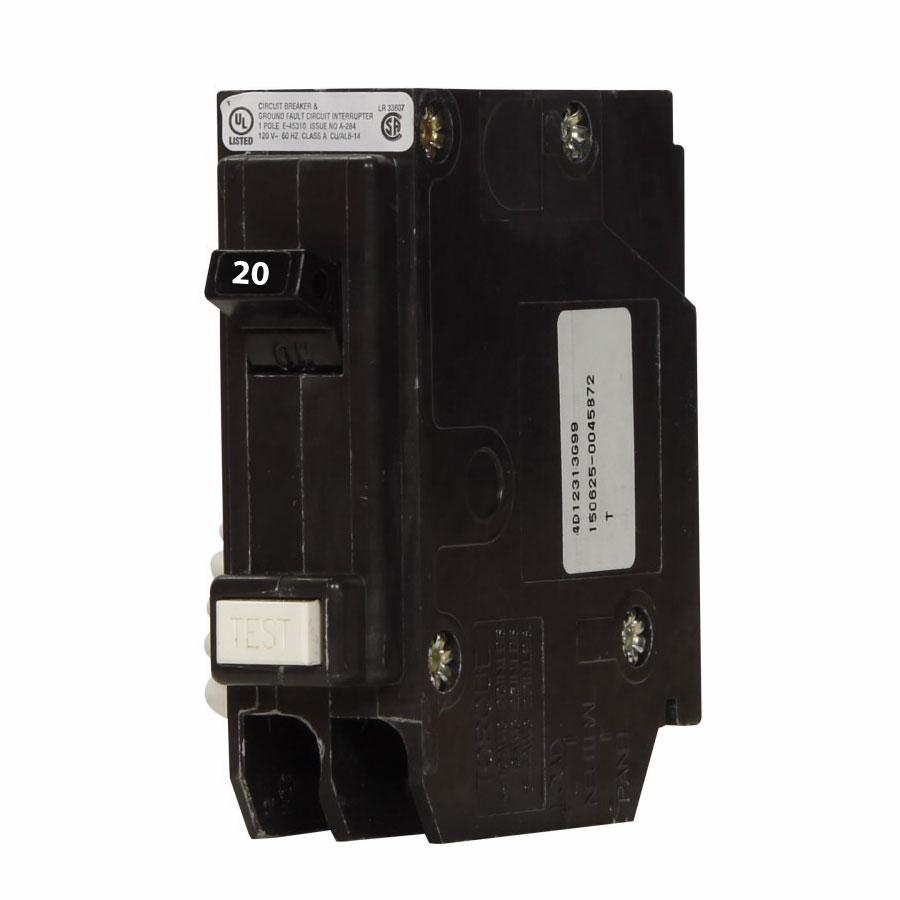

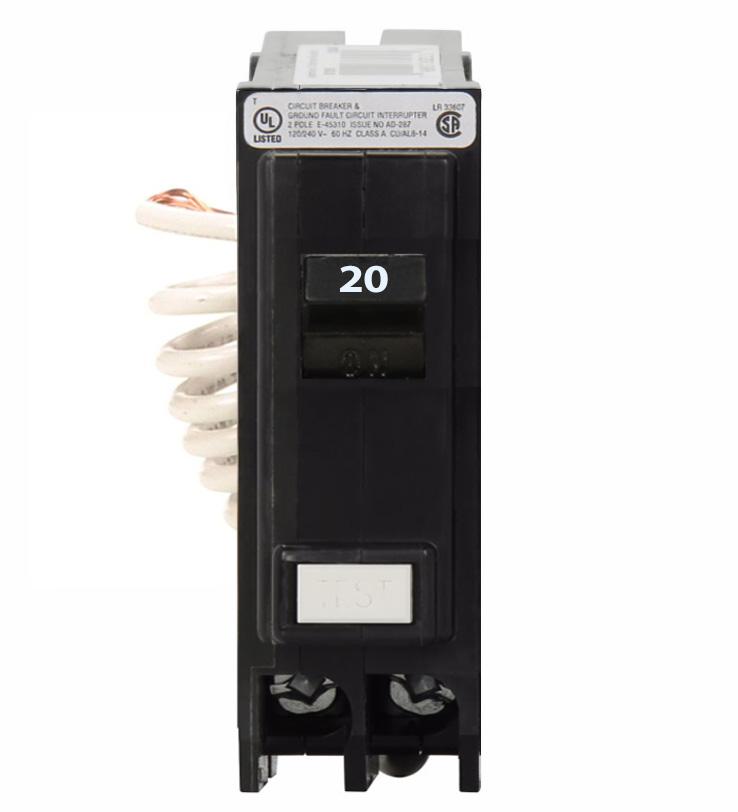

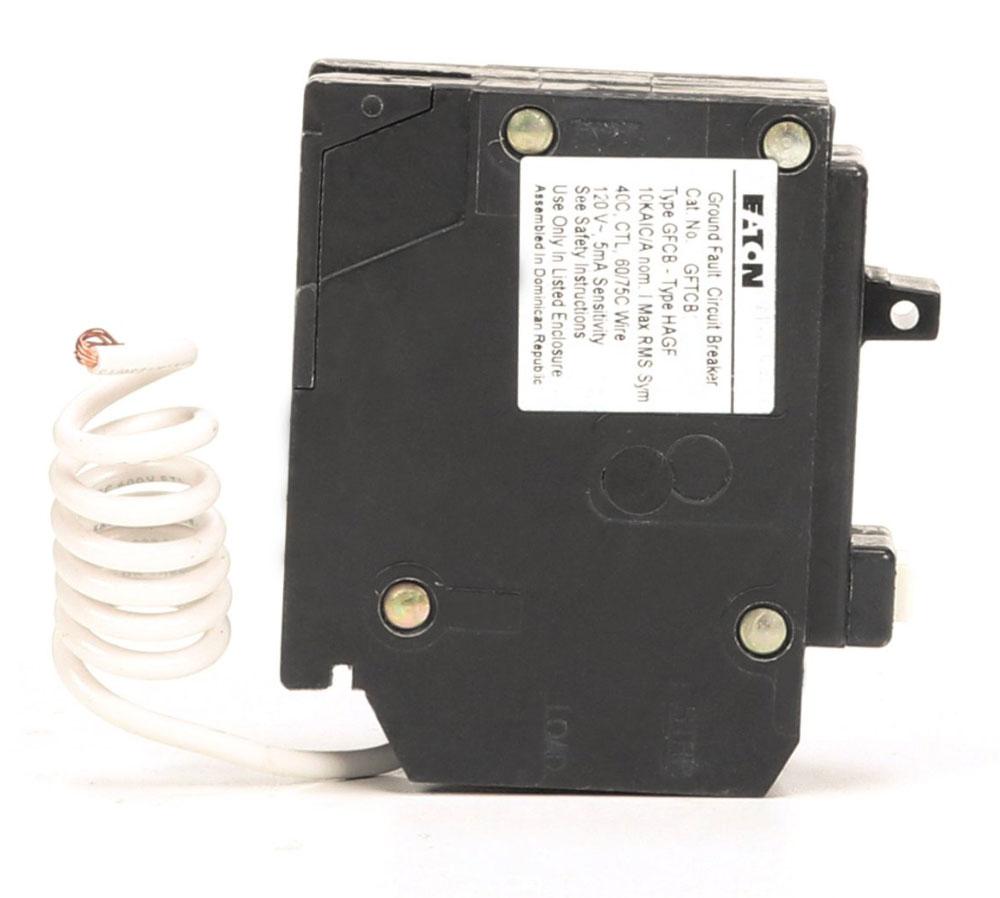

Cutler Hammer GFTCB120 is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in 240V AC single-phase systems. It features a 20A current rating with a 100kA interrupting capacity at 240V and utilizes a thermal-magnetic trip mechanism for both long-time delay and instantaneous response to fault conditions. The compact, plug-in unit measures 1.5 in (D) x 9 in (H) x 7 in (W), weighs 0.61 lb, and is constructed for operation in temperatures from -25°C to 70°C. It complies with the UL 943 standard for ground fault circuit interrupters and is UL listed, ensuring safety for use with wire sizes from 14 to 4 AWG in various industrial and commercial applications.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Thermal Magnetic Protection, Plug-In Connection
  • Voltage Rating: 240V AC
  • Current Rating: 20A
  • Dimensions: 1.5 in (Depth) x 9 in (Height) x 7 in (Width)
  • Standards: UL 943, UL Listed
  • Applications: Overcurrent and short-circuit protection for single-phase systems
  • Configuration: Single
  • Poles: 1
  • AIC Rating: 100kA @ 240V
  • Phase: 1
  • Temp Rating: -25°C to 70°C (-13°F to 158°F)
  • Protection: Thermal Magnetic
  • Functions: Long-Time and Instantaneous (LI) Trip
  • Connection: Plug-In
  • Wire Size: 14 to 4 AWG
  • Certification: UL listed
  • Family: GF Series
  • Country of Origin: Mexico
  • Weight: 0.61 lb


Product Identification
  • UPC: 786680129773
  • GTIN: 00786680129773
