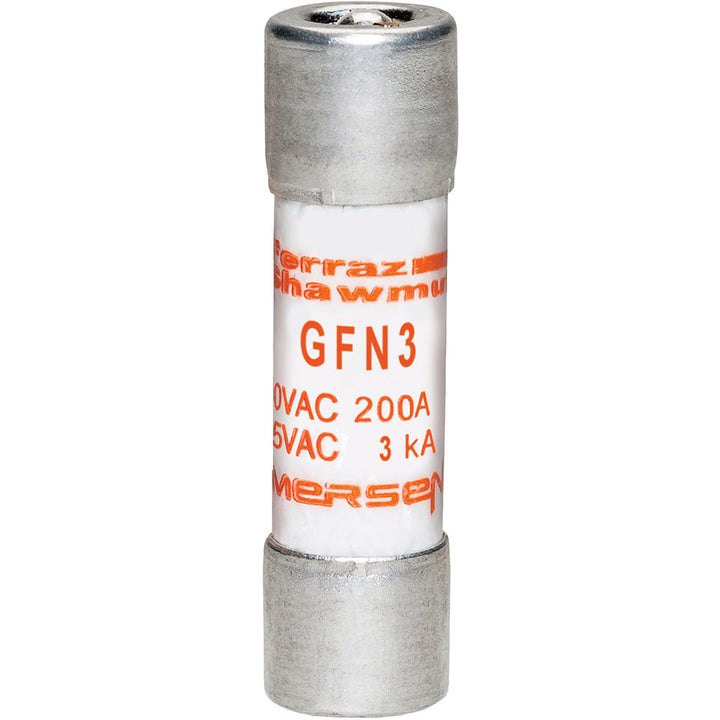

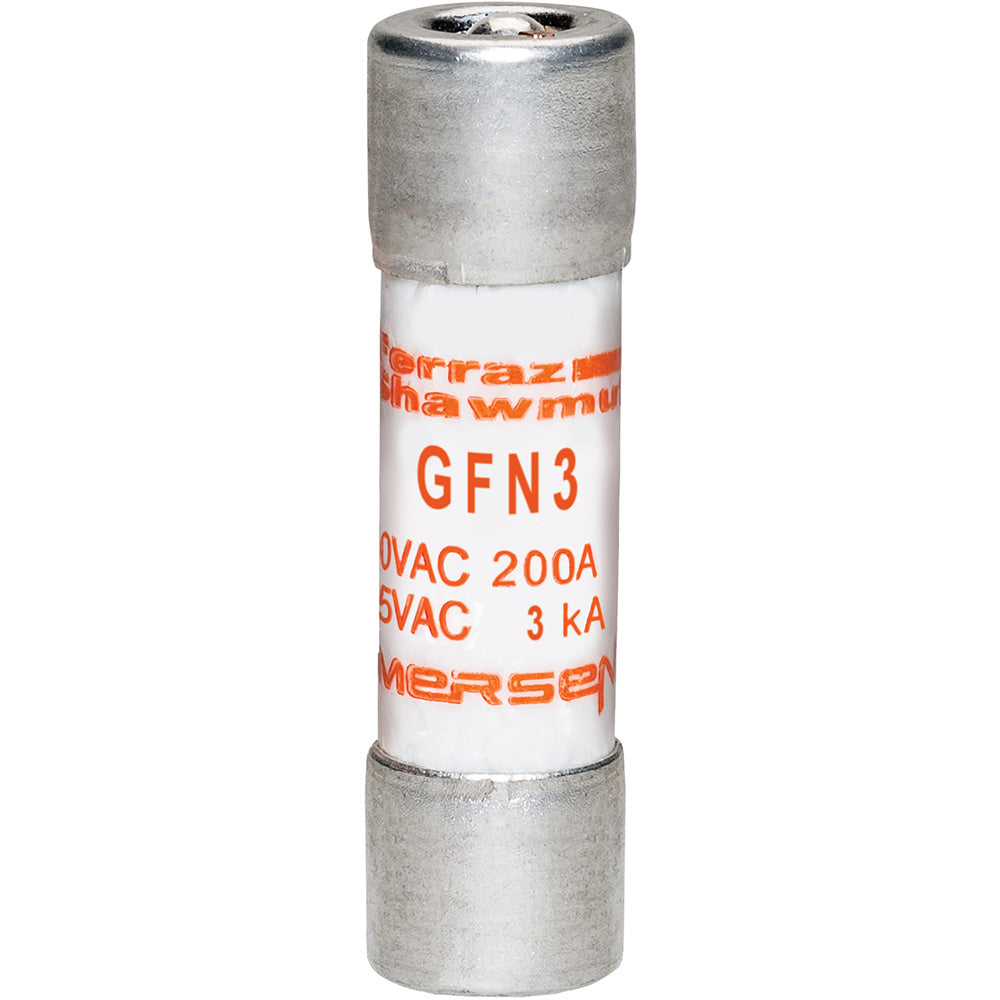

Mersen GFN3 - Midget Fuse 3A 250V (200kA AIC Rating)

Mersen GFN3 is a low-voltage midget fuse designed for circuit protection in industrial applications, rated for 250V AC/DC systems with a 3A current rating. The compact single-barrel construction features a 0.41-inch diameter and 1-1/2-inch length with a minimal weight of 0.01 lb. This UL Listed and CSA Certified fuse meets rigorous safety standards while providing 200kA interrupting capacity at 250V for reliable overcurrent protection. Typical applications include control circuits, instrumentation, and electronic equipment where space-constrained, high-performance protection is required.

Key Features & Specifications

• Type: Low-voltage midget fuse, single-barrel construction
• Voltage Rating: 250V AC/DC
• Current Rating: 3A
• Dimensions: 1-1/2 inch length, 0.41 inch diameter
• Standards: UL Listed, CSA Certified
• Applications: Control circuits, instrumentation, electronic equipment protection
• AIC rating: 200kA@250V
• Class Rating: Midget
• Barrels: 1
• Weight: 0.01 lb
• Family: GFN
• Country of Origin: Mexico

Product Identification

• UPC: 78200176169
• GTIN: 00782001761691
