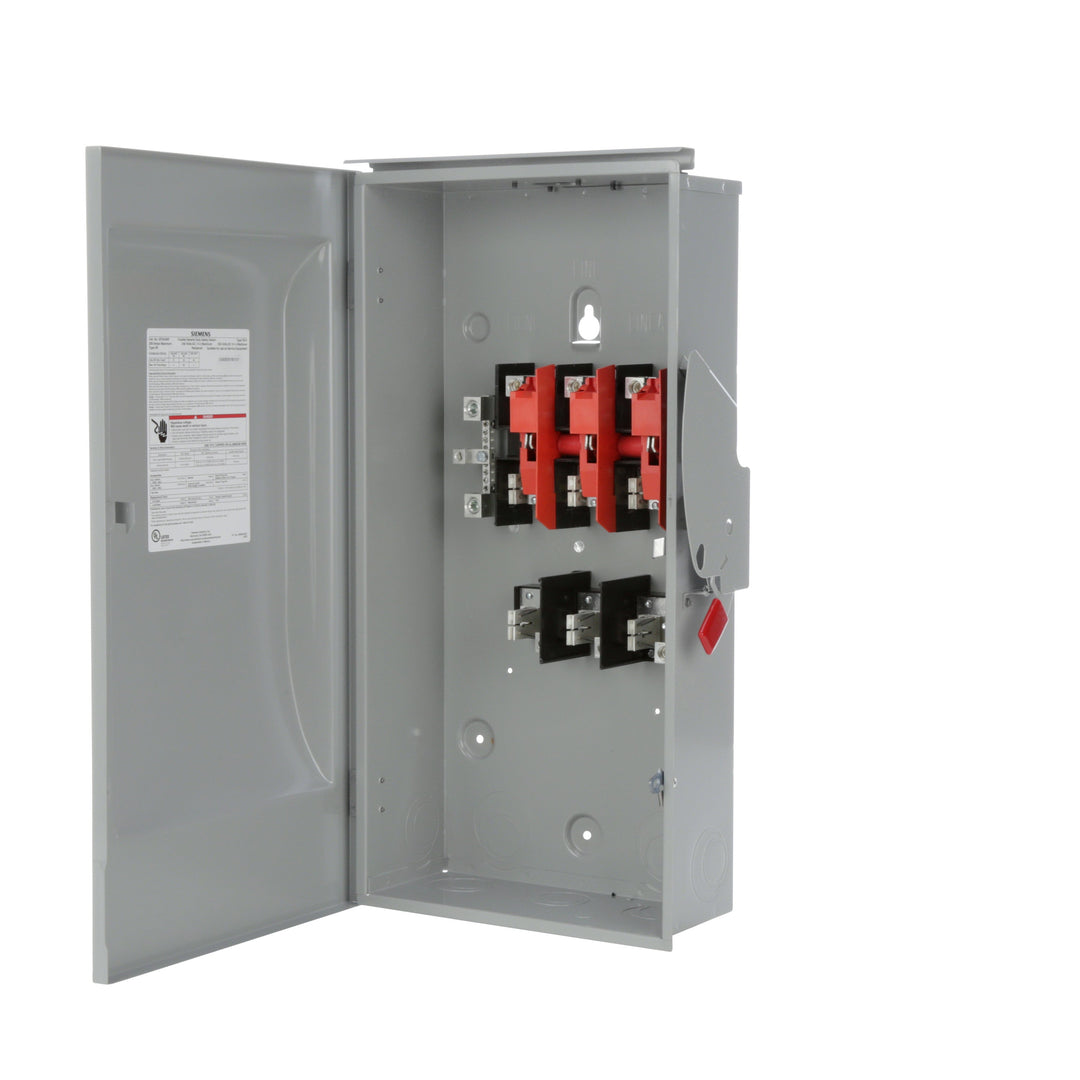

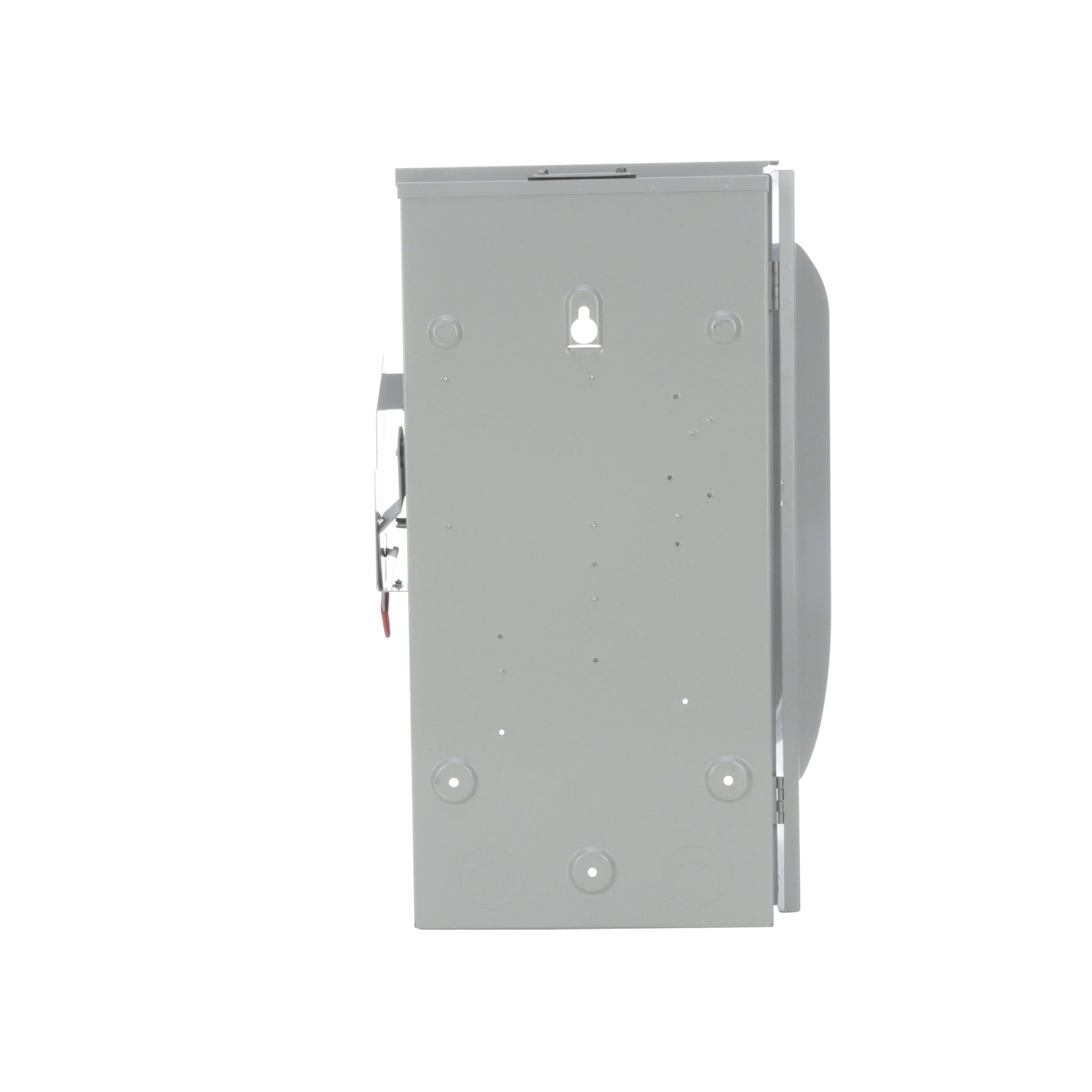

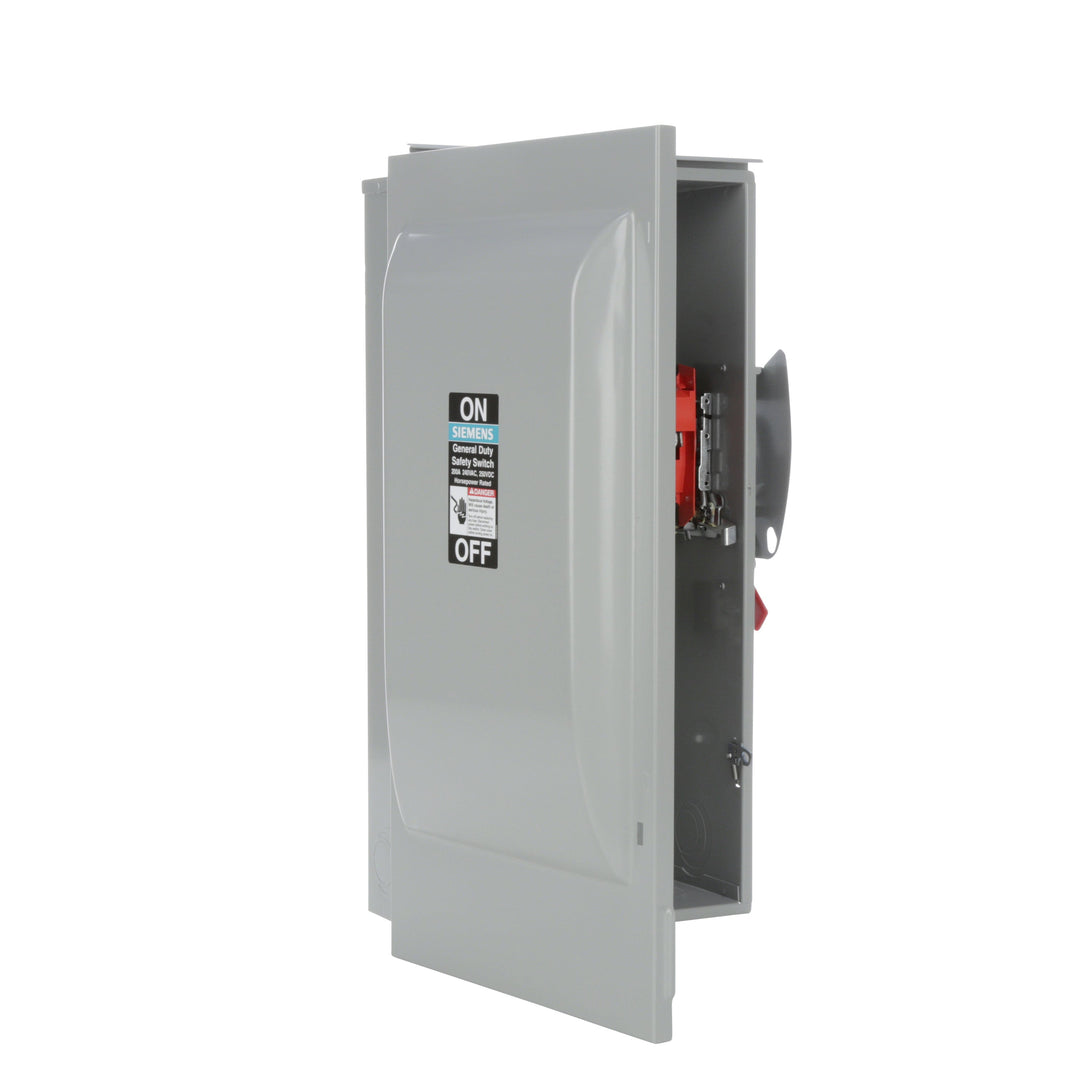

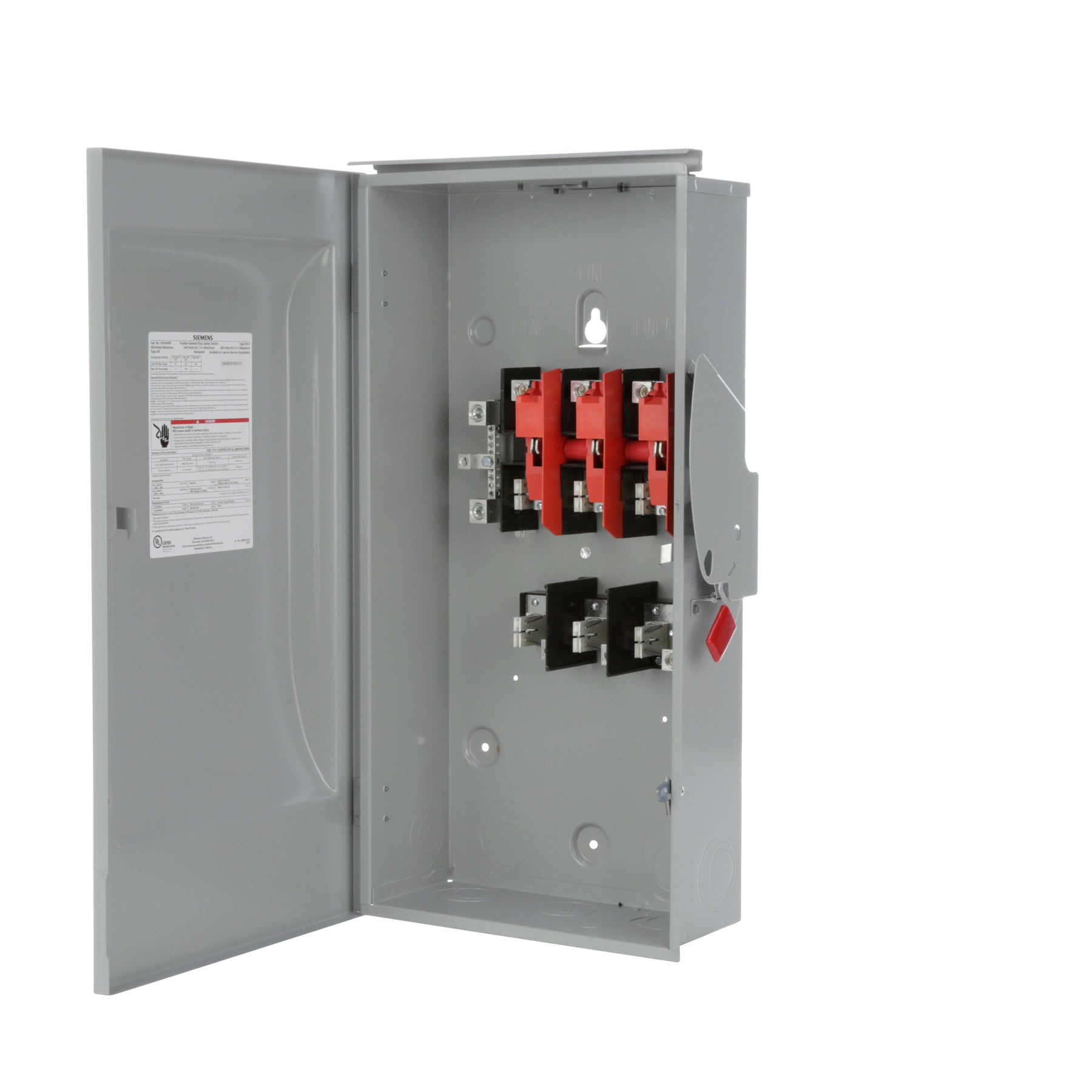

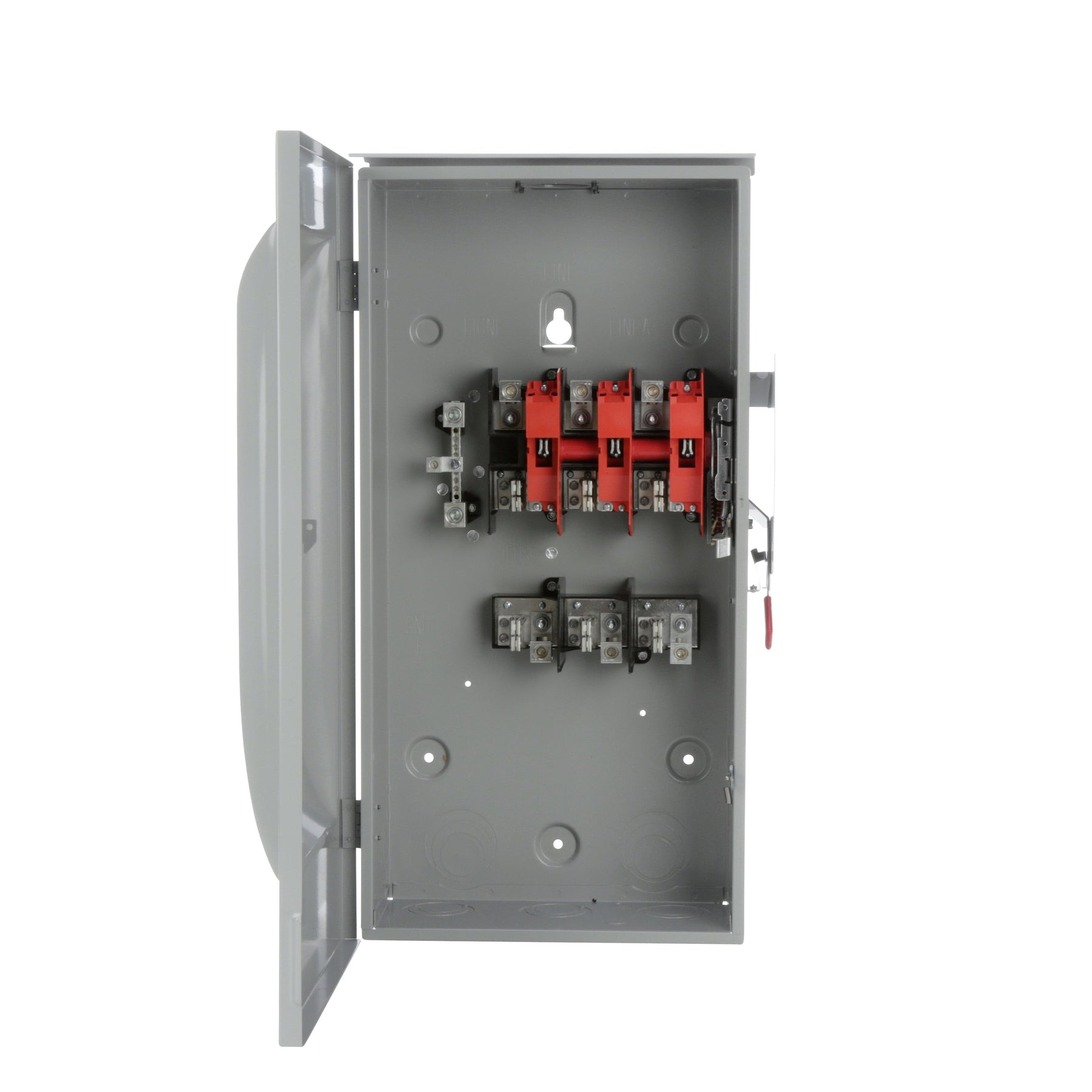

Siemens GF324NR is a fusible safety switch designed for providing a visible disconnect and overcurrent protection in industrial power distribution systems. It is rated for 240V AC, 200A, and 3-phase operation, featuring a robust NEMA 3R enclosure with dimensions of 33.858 x 18.898 x 9.843 inches (860 x 480 x 250 mm) and a weight of 42.682 lb. The switch is UL listed and operates reliably within a temperature range of -25°C to 70°C. Its 100kA AIC rating at 240V and compatibility with Class R fuses and MGP frames make it suitable for service entrance, motor control centers, and main feeder disconnects in harsh industrial environments.
Key Features & Specifications
Type: Fusible safety disconnect switch, VBII Series, GF type
Voltage Rating: 240V AC
Current Rating: 200A
Phase: 3
Poles: 3
Configuration: Single
AIC Rating: 100kA @ 240V
Fuse Class: R
Compatible Frames: MGP
Switch Style: Fusible
NEMA Rating: 3R
Temp Rating: -25°C to 70°C
Dimensions: 33.858 x 18.898 x 9.843 in (860 x 480 x 250 mm)
