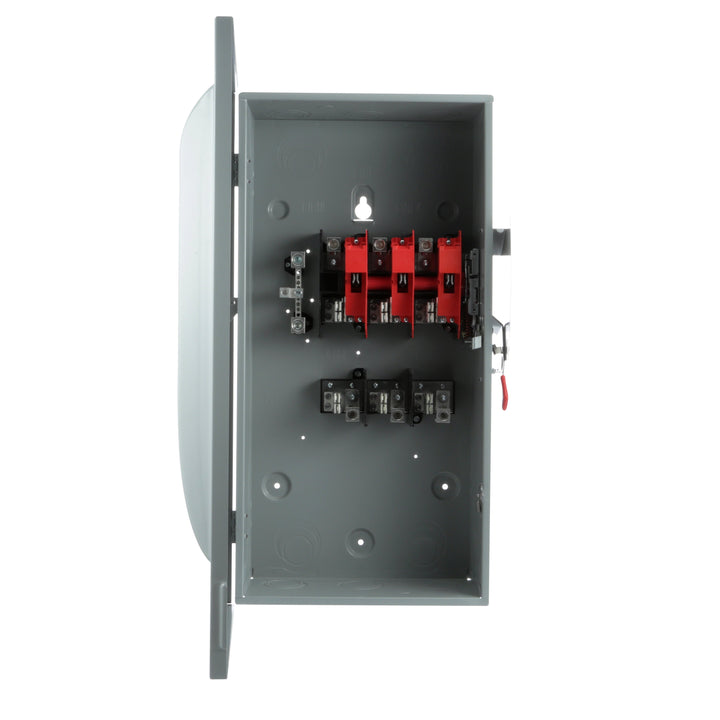

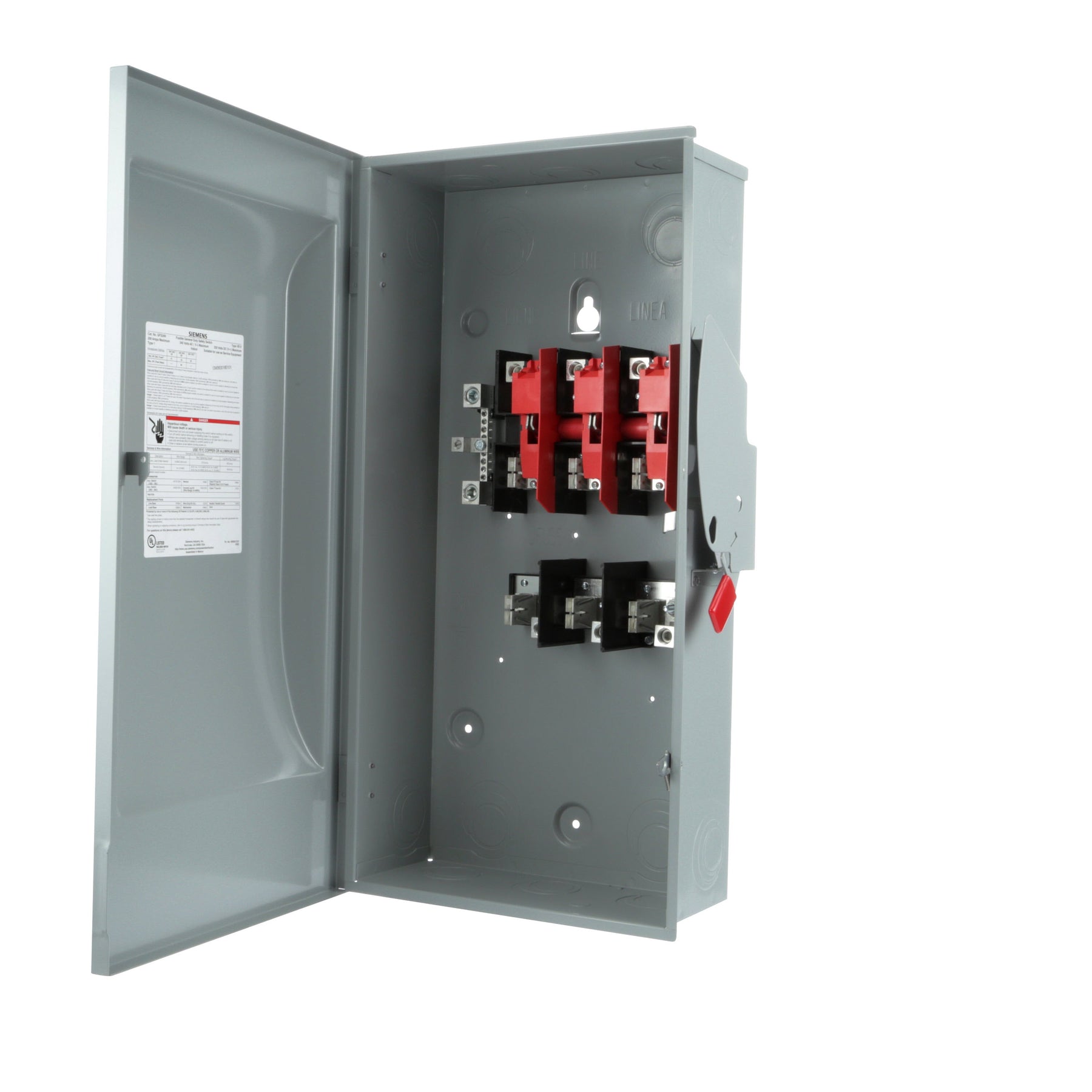

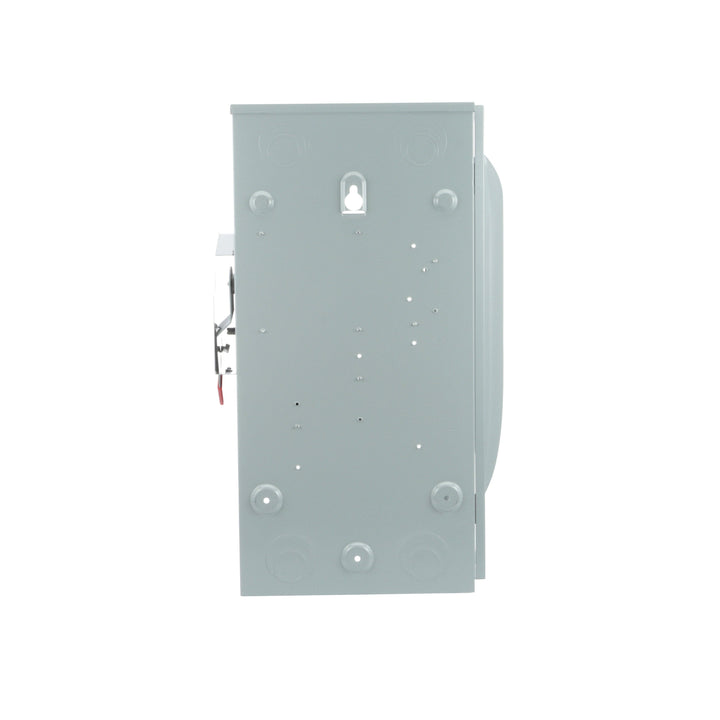

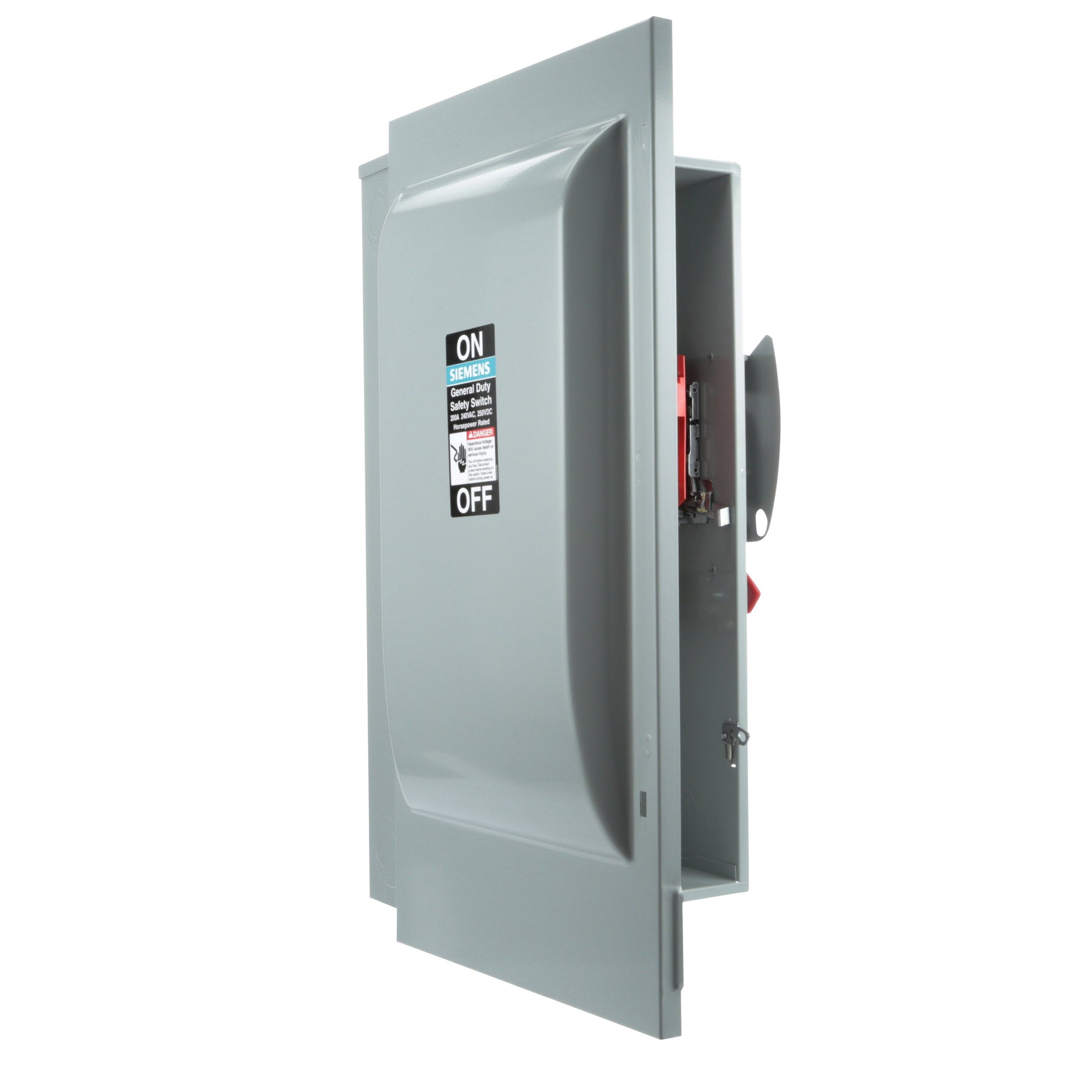

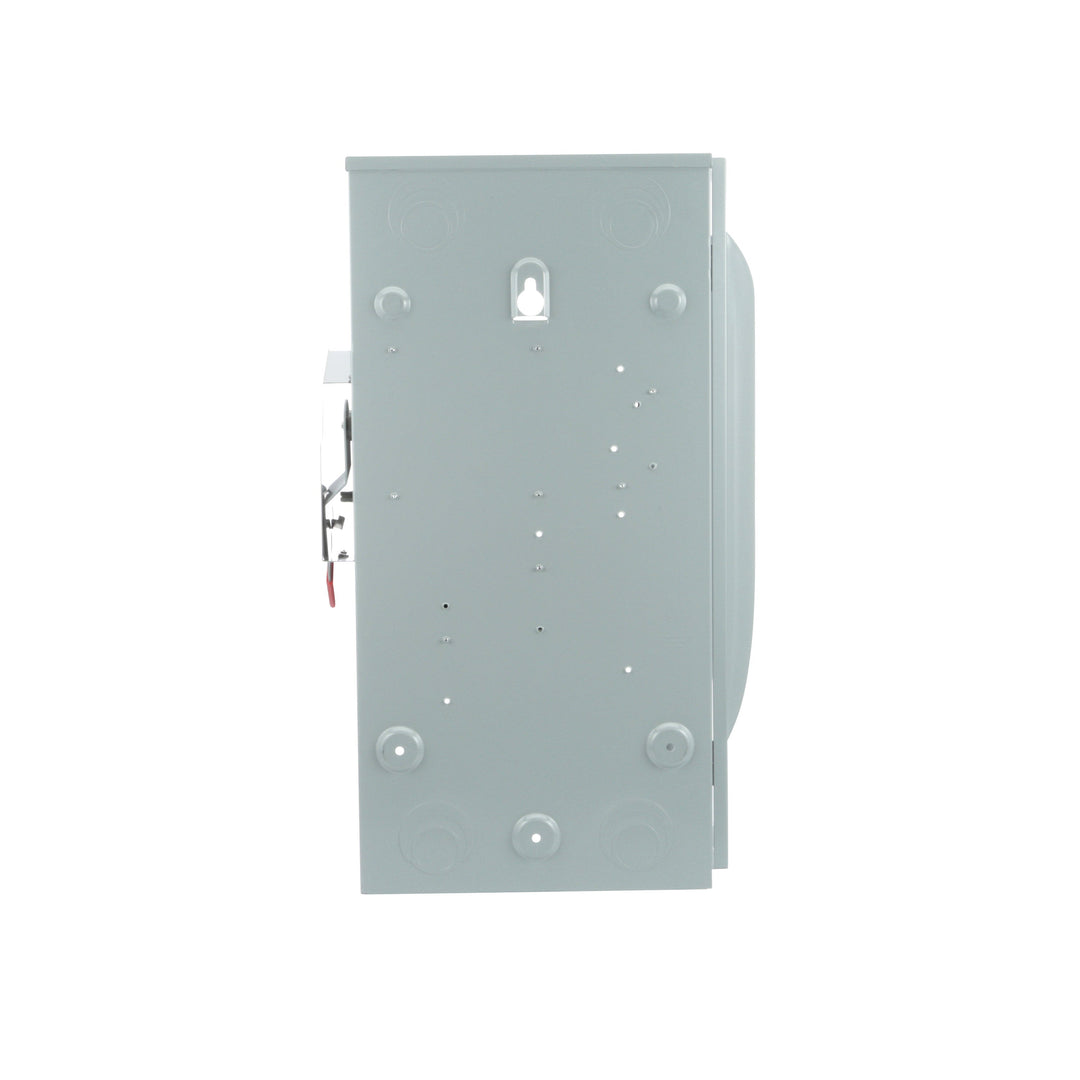

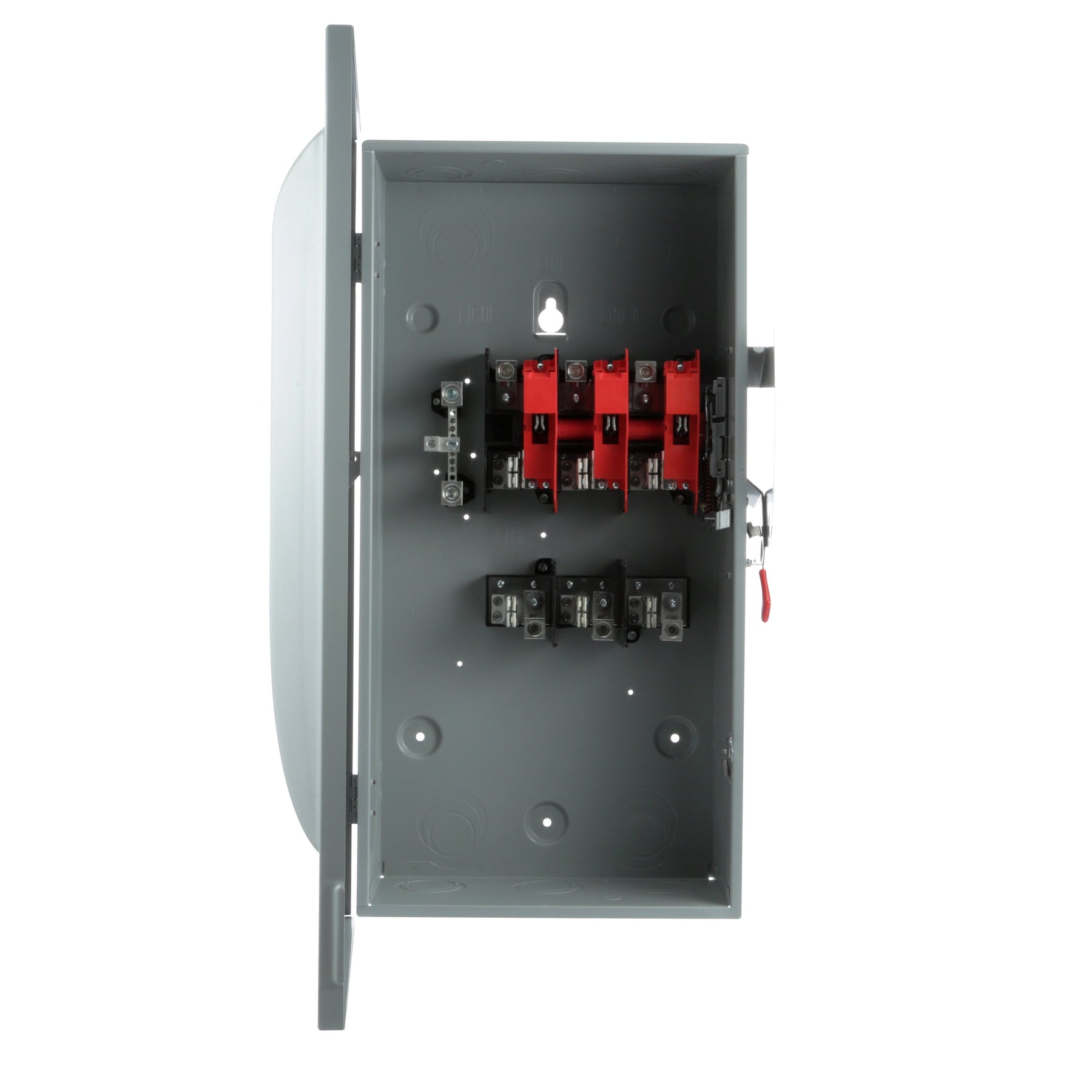

Siemens GF324N - Fusible Disconnect Switch, 200A 3-Pole

Siemens
Price
Save $0
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Siemens GF324N is a fusible safety switch designed for providing a visible disconnect and overcurrent protection in industrial power distribution systems. It is rated for 240V AC operation with a 200A current rating and features a three-pole, single-configuration design within a NEMA 1 enclosure. The robust construction measures 850 x 470 x 250 mm (33.465 x 18.504 x 9.843 inches) and weighs 41.689 lb, built to operate in temperatures from -25°C to 70°C (-13°F to 158°F). This UL-listed disconnect complies with industry standards and offers an interrupting capacity of 100kA at 240V for reliable fault protection. Its design is typically applied in three-phase industrial panels and machinery where Class R fuse protection and a secure isolation point are required.

Key Features & Specifications
  • Type: Fusible safety switch, VBII Series, GF type
  • Voltage Rating: 240V AC
  • Current Rating: 200A
  • Dimensions: 850 x 470 x 250 mm (33.465 x 18.504 x 9.843 inches)
  • Standards: UL listed
  • Applications: Industrial power distribution, machinery disconnect, panel protection
  • Switch Type: Fusible Disconnect
  • Configuration: Single
  • Temp Rating: -25°C to 70°C (-13°F to 158°F)
  • Phase: 3
  • AIC rating: 100kA @ 240V
  • Connection: N/A
  • Poles: 3
  • Protection: Fuse-based overcurrent
  • Nema Rating: NEMA 1
  • Fuse Class: R
  • Weight: 41.689 lb
  • Country of Origin: Mexico


Product Identification
  • UPC: 783643148161
  • GTIN: 00783643148161
