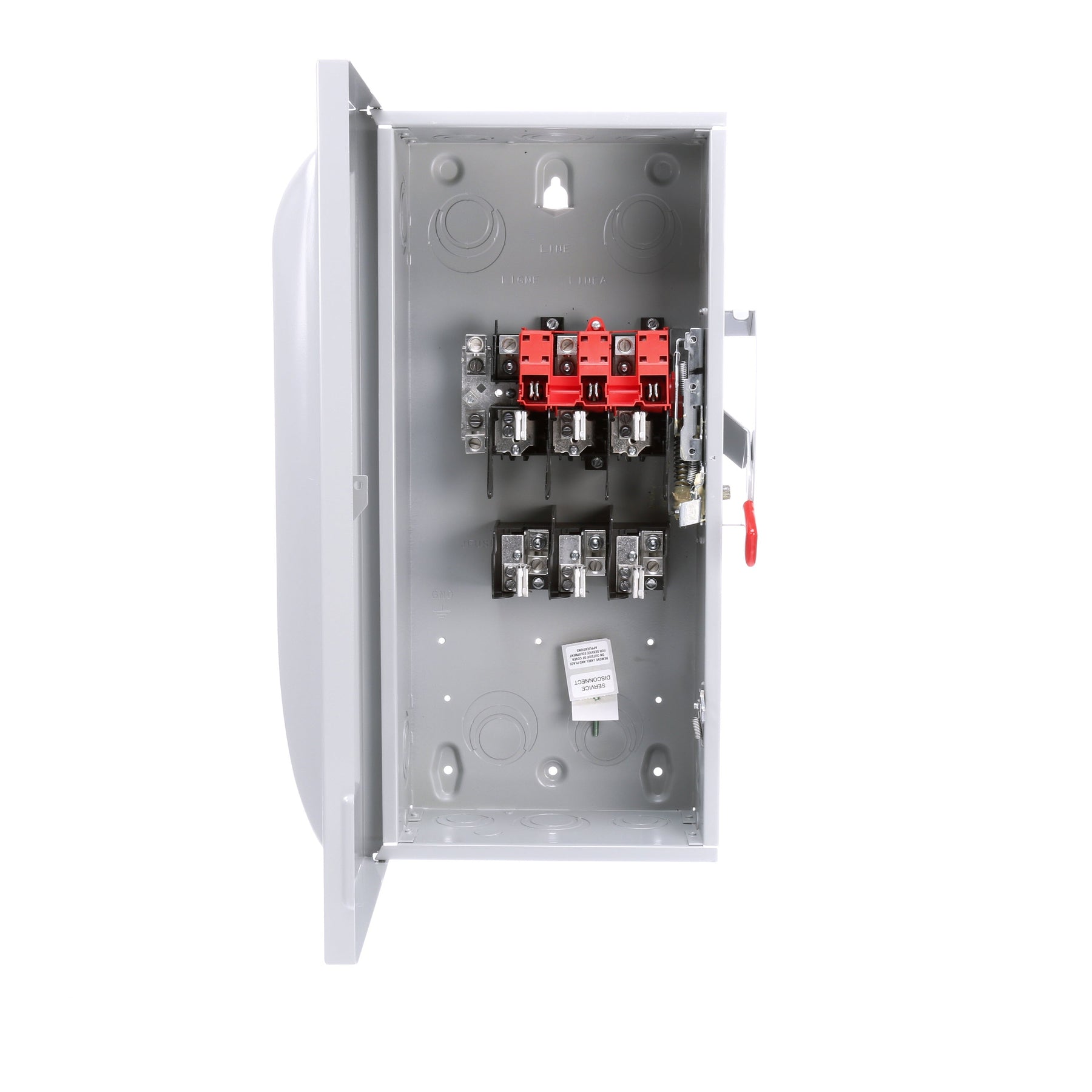

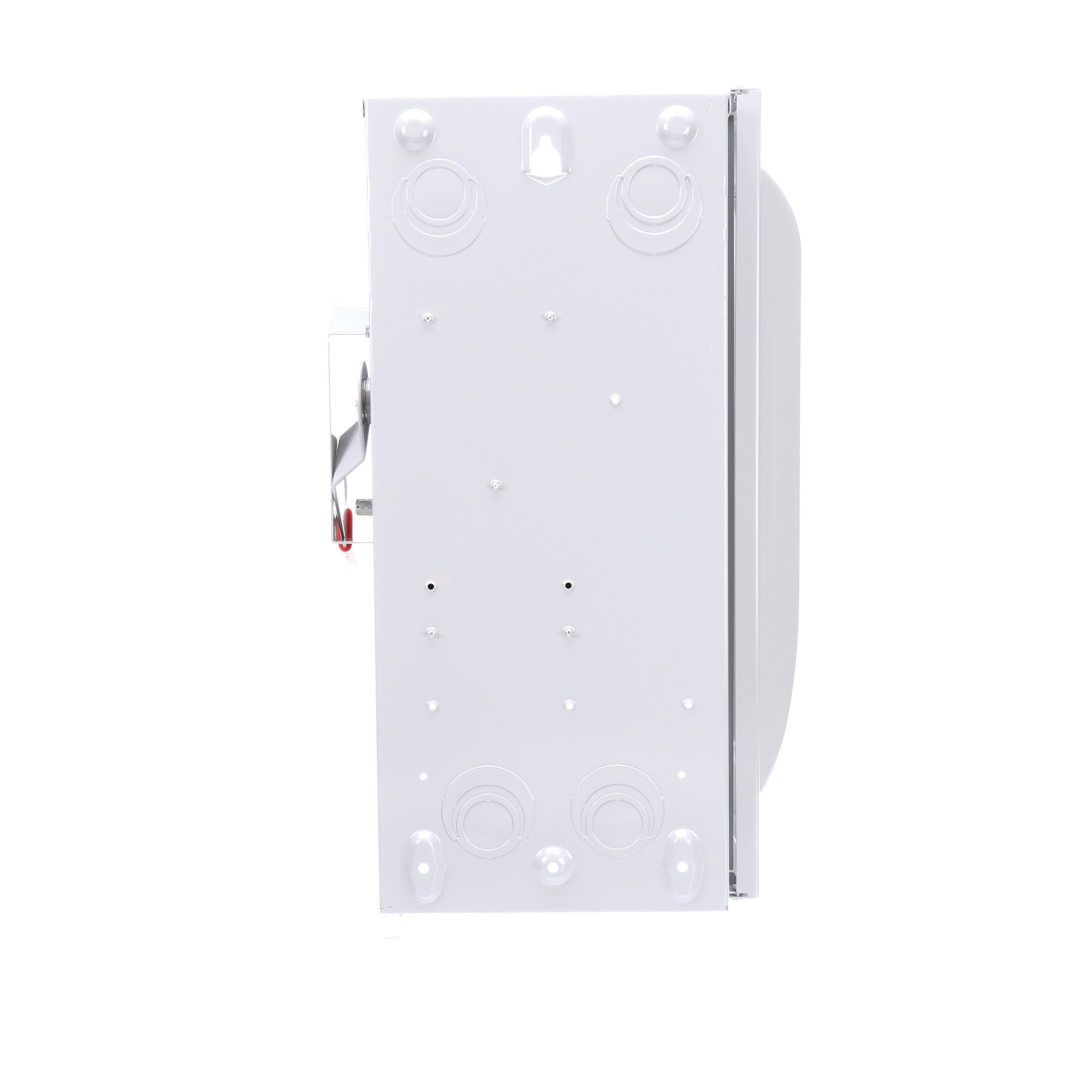

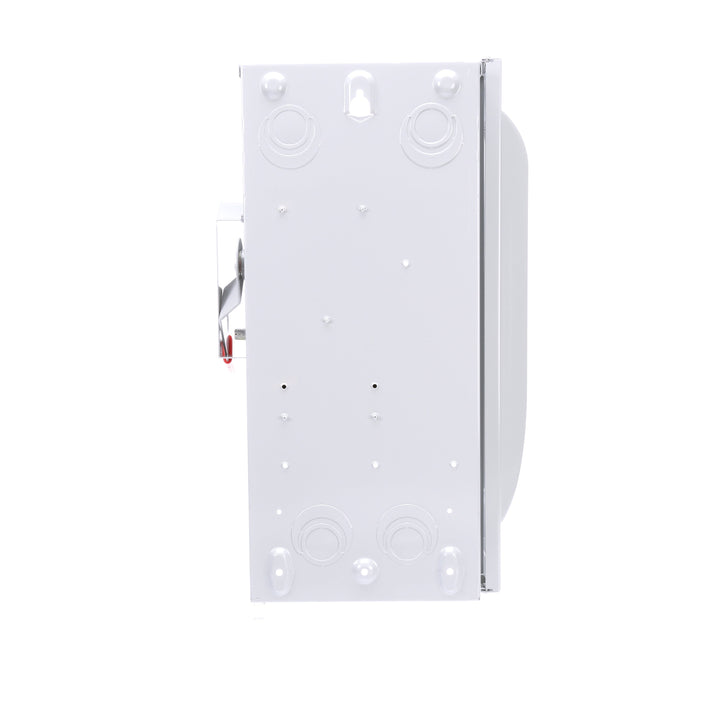

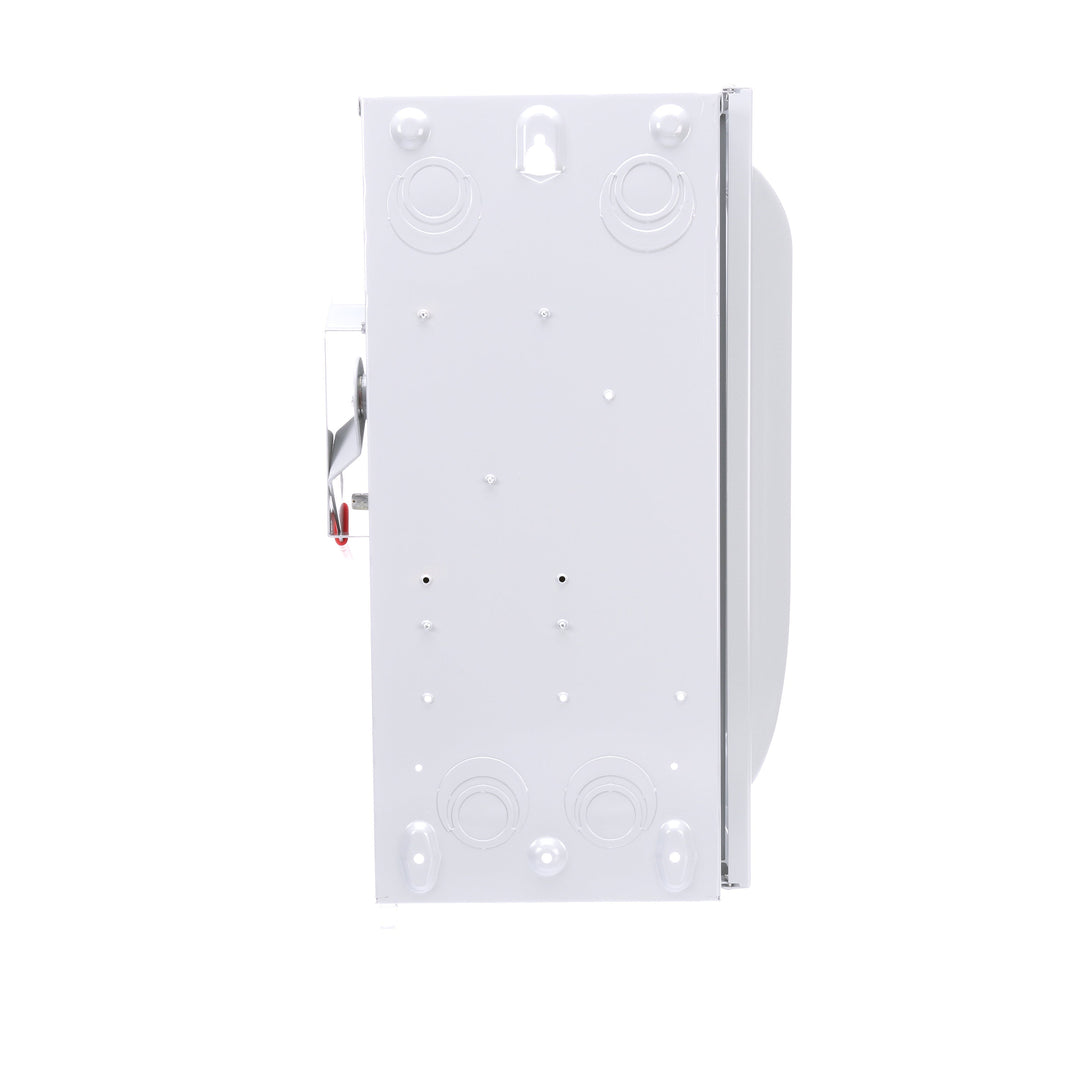

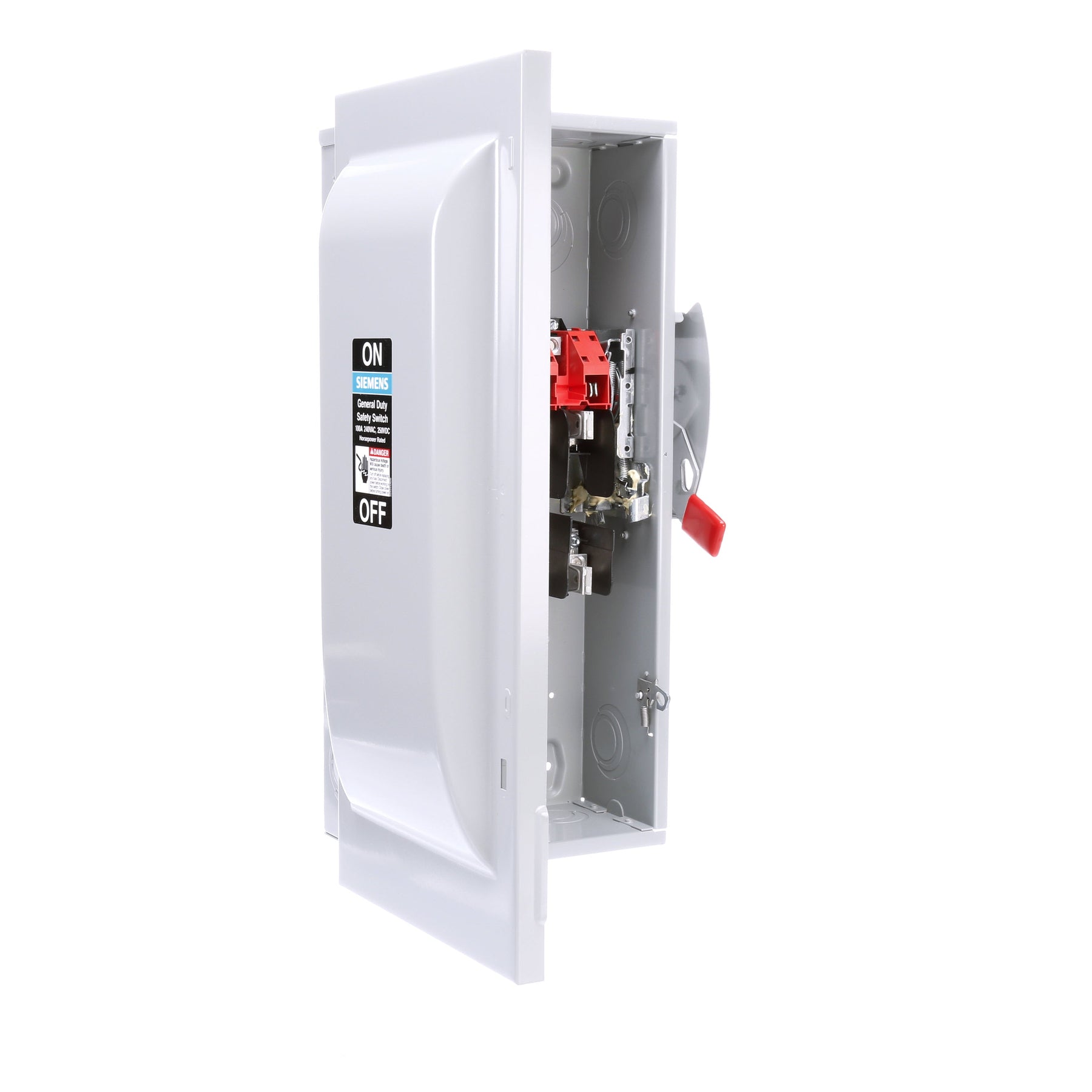

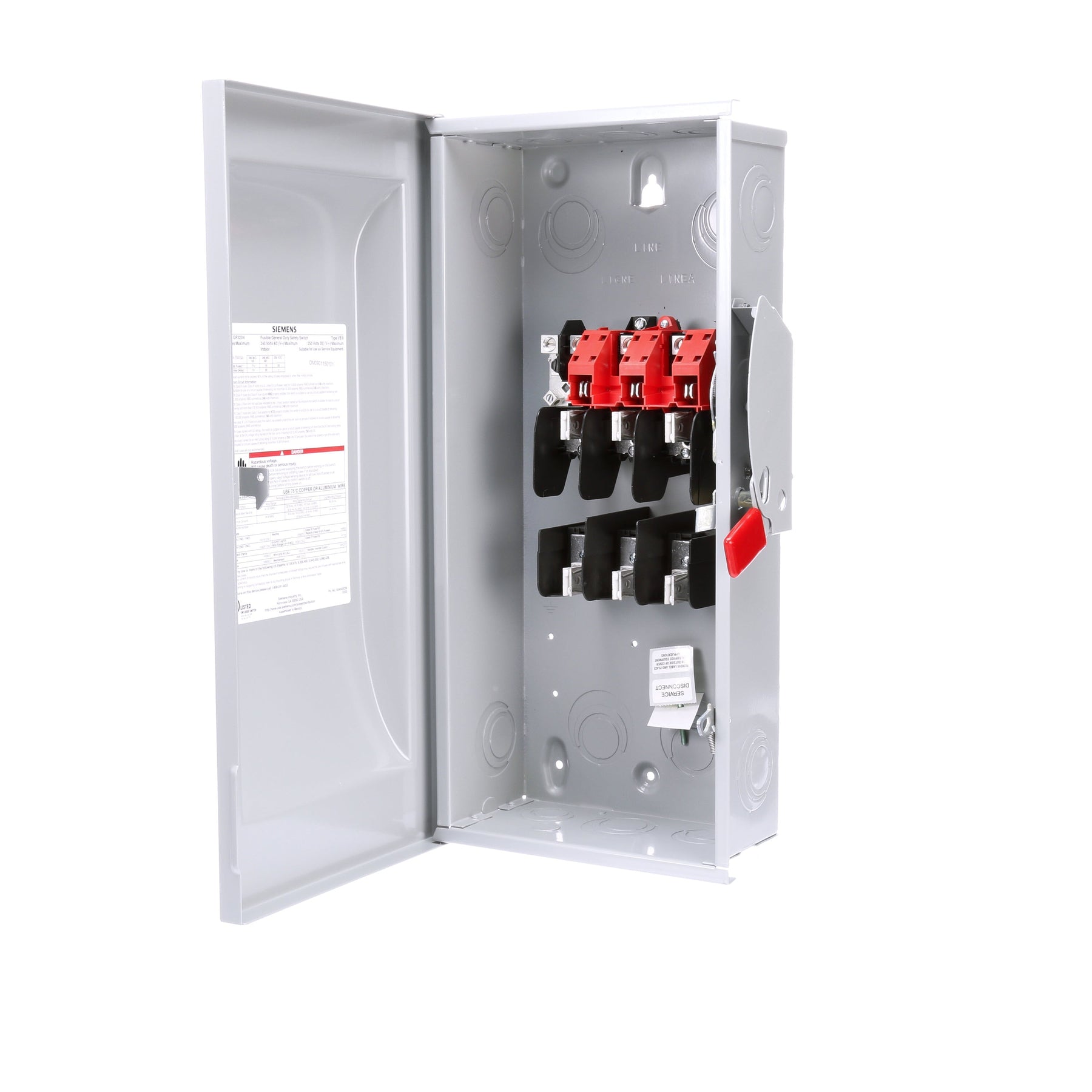

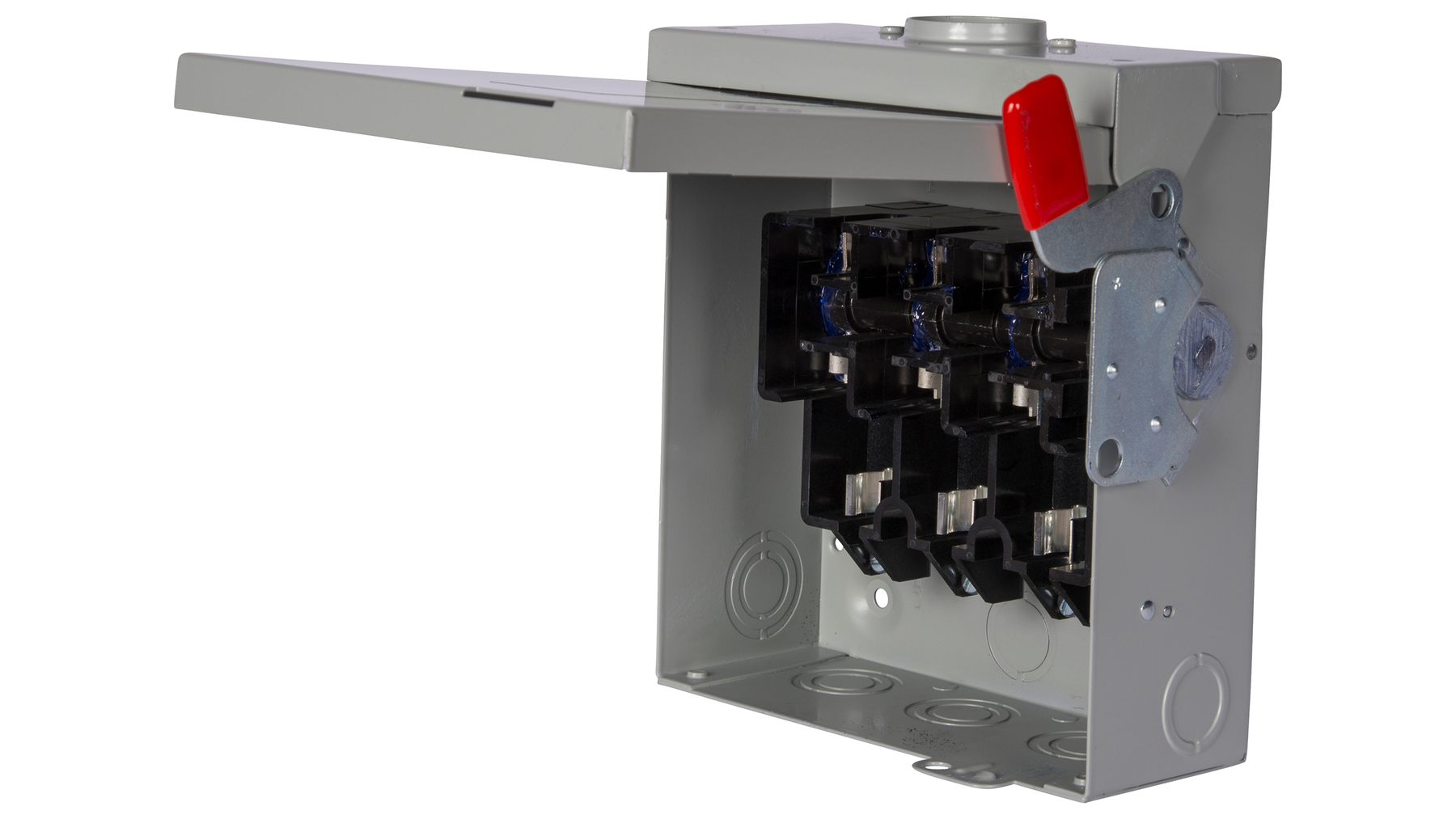

Siemens GF323N - Fusible Safety Switch, 100A 3-Pole

Price
Regular price $0.00
Regular price Sale price $0.00
Save $0
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon
Siemens GF323N is a fusible safety switch disconnect designed for providing reliable circuit protection and isolation in industrial power distribution. It is rated for 240V AC, 100A, and 3-phase operation, featuring a robust NEMA 1 enclosure with dimensions of 25.591 x 13.78 x 7.48 inches and a weight of 20.834 lb. The unit is UL listed and engineered for an interrupting capacity of 100kA at 240V, operating within a temperature range of -25°C to 70°C. This disconnect is constructed for use with Class R fuses and is compatible with MEP frames, making it suitable for service entrance, motor control centers, and main feeder protection applications.

Key Features & Specifications
  • Type: Fusible safety switch disconnect, VBII Series
  • Voltage Rating: 240V AC
  • Current Rating: 100A
  • Configuration: Single, 3-pole
  • Dimensions: 25.591 x 13.78 x 7.48 inches (650 x 350 x 190 mm)
  • Weight: 20.834 lb (9.45 kg)
  • Standards: UL listed
  • Applications: Service entrance, motor control centers, main feeder protection
  • Switch Style: Fusible
  • AIC Rating: 100kA @ 240V
  • NEMA Rating: NEMA 1
  • Phase: 3
  • Temp Rating: -25°C to 70°C (-13°F to 158°F)
  • Fuse Class: R
  • Compatible Frames: MEP
  • Country of Origin: Mexico


Product Identification
  • UPC: 783643148147
  • GTIN: 00783643148147
