Siemens GF322NR - Fusible Safety Switch, 60A 3P (100kA AIC)

Siemens
Price
Save $500.55
/
Title
  • Low stock - 1 item left
  • Backordered, shipping soon
Call for Price

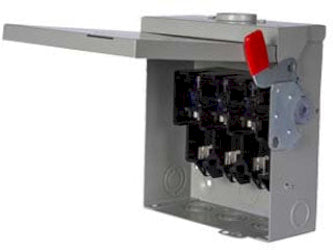

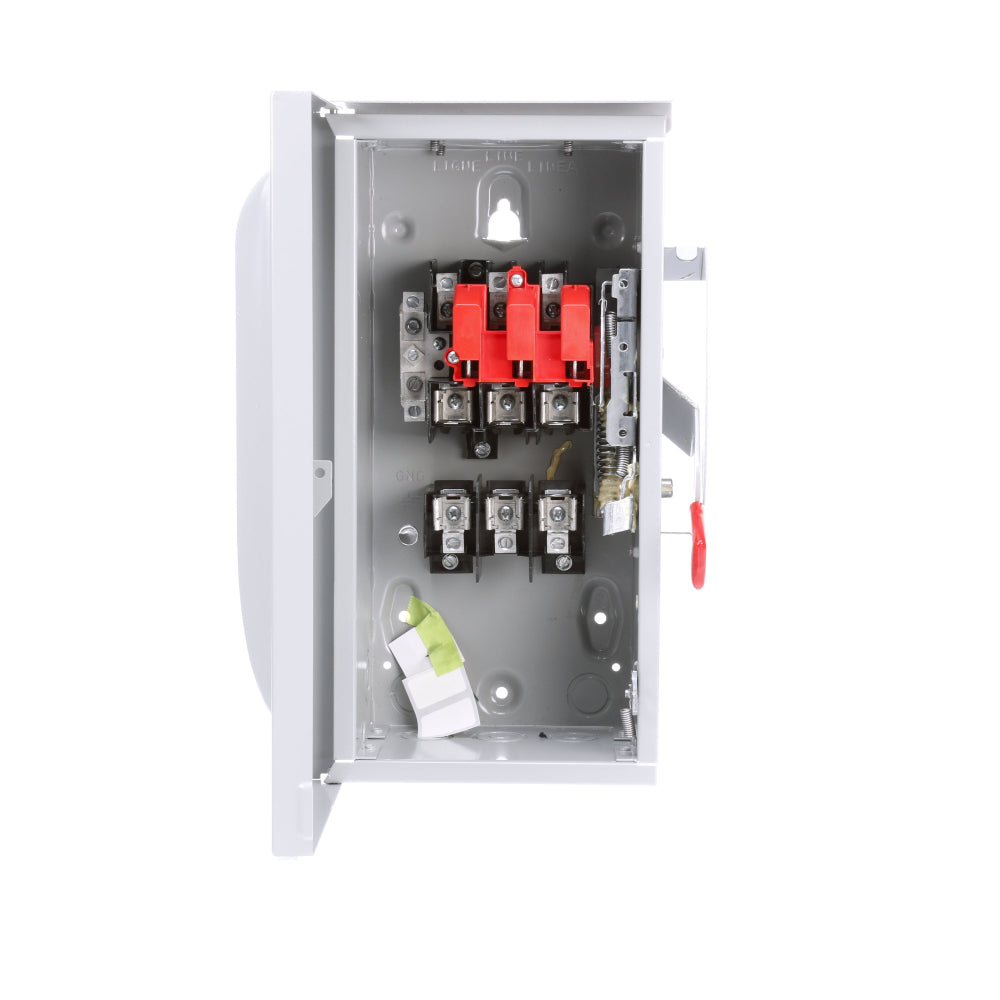

Siemens GF322NR is a fusible safety switch designed for providing reliable circuit isolation and protection in industrial applications. It is rated for 240V AC operation with a 60A current rating and features a robust three-pole, single-configuration design housed in a NEMA 3R enclosure measuring 18.11 x 11.024 x 7.48 inches (460 x 280 x 190 mm) and weighing 12.875 lb. The switch is UL listed and engineered to withstand an ambient temperature range of -25°C to 70°C (-13°F to 158°F), with an interrupting capacity of 100kA at 240V for enhanced safety. It is part of the VBII Series and is commonly used for motor control and main disconnect functions in compatible MEP panelboards.

Key Features & Specifications
  • Type: Fusible safety disconnect switch, VBII Series
  • Voltage Rating: 240V AC
  • Current Rating: 60A
  • Configuration: Single
  • Poles: 3
  • AIC Rating: 100kA @ 240V
  • Switch Style: Fusible
  • NEMA Rating: 3R
  • Temp Rating: -25°C to 70°C (-13°F to 158°F)
  • Dimensions: 18.11 x 11.024 x 7.48 in (460 x 280 x 190 mm)
  • Weight: 12.875 lb
  • Standards: UL Listed
  • Compatible Frames: MEP
  • Country of Origin: Mexico


Product Identification
  • UPC: 783643149298
  • GTIN: 00785901491767
